timber aluminum clad wood frame casement window Clading Timber Windows door with double 3 layer triple glazing on China WDMA

Product Description Timber & Aluminium Windows Timber & aluminium windows, more commonly known as alu-clad timber windows are a combination of timber and aluminium frames. Internally the windows are made from engineered timber which gives the frames a high insulation level as well as the ability to be stained or...
Type :
$50.00

China Windows and Doors Manufacturers Association

Product Description

Timber & Aluminium Windows

Timber & aluminium windows, more commonly known as alu-clad timber windows are a combination of timber and aluminium frames.

Internally the windows are made from engineered timber which gives the frames a high insulation level as well as the ability to be stained or lacquered so the natural beauty of the timber can be appreciated.

Externally these windows are clad in aluminium, thus the name alu-clad timber windows. This cladding is typically done by using clips attached to the timber frames. This external aluminium cladding gives the windows several benefits. Most importantly it means the timber is protected from the elements, meaning the timber frames likely to have extended life-spans, requiring next to no maintenance throughout their lives.

This option also means a dual colour product is standard, with one stain or paint colour on the timber internally and a different, if you wish, paint colour externally.

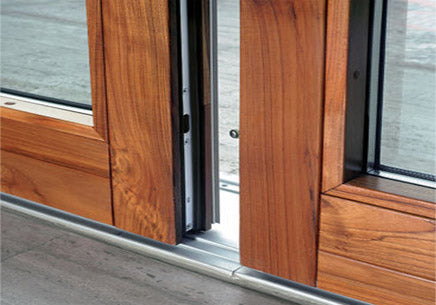

Detailed Images

Specification of timber windows aluminum clad wood casement window
Material: solid wood,frame depth is 68mm,red pine is used for indoor area,African Okoume or White oak are available.
wood finish: Sikkens water lacquer coated(solid wood) can make any color you like.
Aluminum finish: Akzo Nobel Powder Coated
Glass: standard 5+12A+5 insulating and tempered glass, low-e glass. Configuration also can be increased.
Hardware: ROTO/ GU/ SIEGENIA (German)
Warrenty period:10years

widely used in high end building, such as private villa,

starred hotel and commercial building

timber Interior/aluminum Exterior

Timber - Aluminum

Aluminum is less then timber

Aluminum-Timber

Timber is less then aluminum

(with Thermal break aluminum profile)

wood profile
Imported finger-joint laminated wood profile: red pine,Okoume wood, White Oak, etc.
Glass
Double glazed insulating tempered glass with Low-E coated, filled with argon gas. (6mm+12A+6mm).triple layer glazing laminated glass is available. sound proof glass
Painting
SIKKENS brand water lacquer, imported from Germany, has no formaldehyde
Hardware
Roto / G-U / Siegenia / Hoppe from German
Heatinsulating strip
Imported polymer nylon 66 from Germany
Sealing joint strip
EPDM( corrosion resistance, heat resistance, oxidative resistance)
Advantages
1, Professional Design Team, project design plan before sales.
2, respond in 12 hours and we can take photo for you to confirm the details and know the procedure.
3, Experienced Processing and Painting Worker
4, On-Time Quick Delivery and Satisfying After-Sales Service
5,Install easily, free technical consultation
