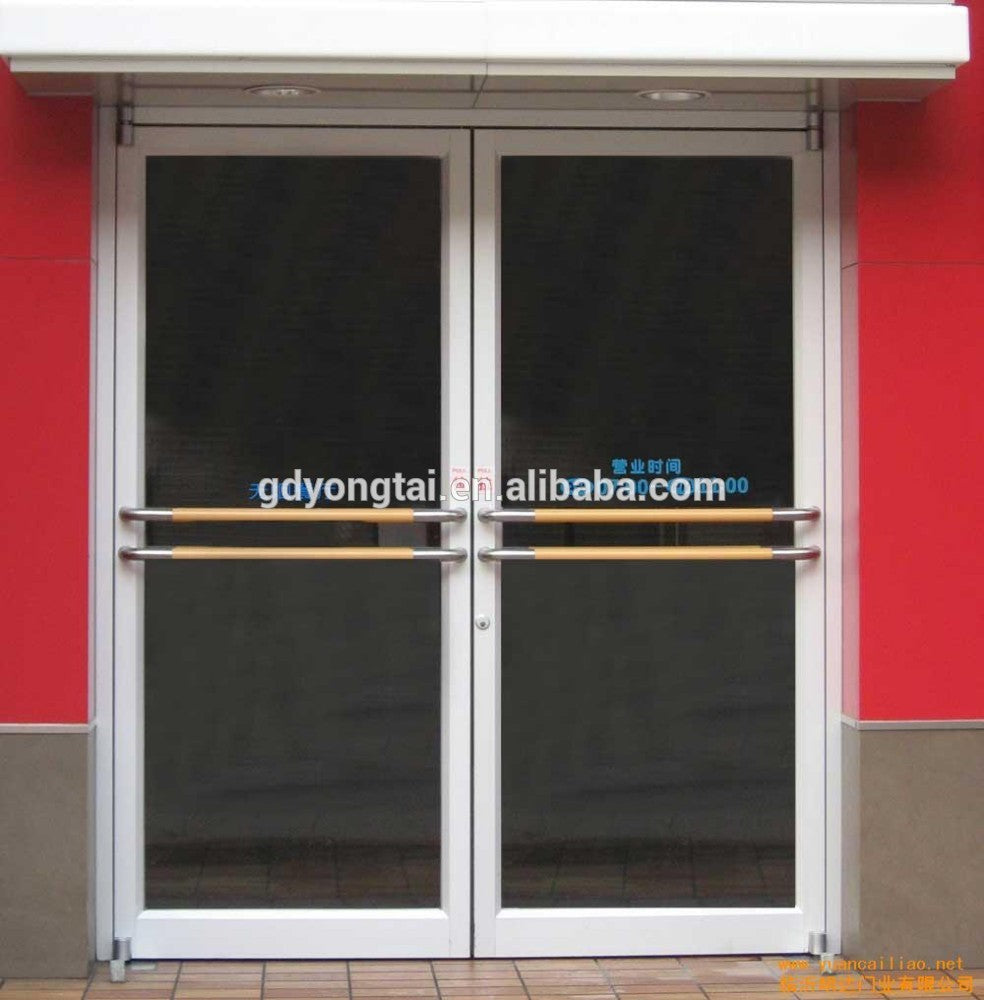

sash white aluminum glass door with 0.8mm/1.2mm/2.0mm thickness on China WDMA

Product Description         1.Aluminium Alloy 6063, 6061. 2.Temper: T4,T5,T6 3.Surface treatment: Mill Finished, Anodizing, Electrophoresis, Powder coating 4.Color: Silver, champagne, bronze, gold, white, black, and so on 5.Length: 10mm-7200mm   6.Shape&dimension the design we have or customized according to your design 7.Packing: our normal package is clean...
$4.63
$3.14

China Windows and Doors Manufacturers Association

Product Description









1.Aluminium Alloy 6063, 6061.
2.Temper: T4,T5,T6
3.Surface treatment: Mill Finished, Anodizing, Electrophoresis, Powder coating
4.Color: Silver, champagne, bronze, gold, white, black, and so on
5.Length: 10mm-7200mm

6.Shape&dimension the design we have or customized according to your design
7.Packing: our normal package is clean film ,pearl cotton and hot shrink ,but we can do according to your requirements
8.Certification: ISO9001,ISO14001,CE.
9.Standard:

China high precision GB5237-2008





Yatai   Aluminium Profile Technical Standard:

Yatai Aluminium Profile Chemical Composition(%)

Alloy Si Fe Cu Mn Mg Cr Zn Ti Other Aluminium
6061   0.40-0.80   0.70   0.15-0.40  0.15   0.80-1.20   0.04-0.35  0.25  0.15   0.15   remainder
6063 0.2-0.60 0.35 0.10 0.10 0.45-0.90 0.10 0.10 0.10 0.10 remainder

Yatai Mechanical Property

Alloy Temper Tensile Strength Yield Strength Elongation
6063 T5 >160MPa >110Mpa >8%
6063 T6 >205MPa >180Mpa >8%
6061 T6 >265MPa >245Mpa >8%

Yatai Aluminium Profile 's Surface Treatment Specification:

Anodized

Oxide Layer

(average thickness)

AA10 ≥10μm
  AA15 ≥15μm
Electrophoretic Coating Composite Layer(average thickness) Level A ≥21μm
  Level B ≥16μm
Powder Coating Layer Hardness   ≥3H
Gird Test    ≥0
Minimum local thickness    ≥40μm
indentation hardness   ≥80
Gird test   ≥0



Yatai   Aluminium Profile Technical Standard:

Yatai Aluminium Profile Chemical Composition(%)

Alloy Si Fe Cu Mn Mg Cr Zn Ti Other Aluminium
6061   0.40-0.80   0.70   0.15-0.40  0.15   0.80-1.20   0.04-0.35  0.25  0.15   0.15   remainder
6063 0.2-0.60 0.35 0.10 0.10 0.45-0.90 0.10 0.10 0.10 0.10 remainder

Yatai Mechanical Property

Alloy Temper Tensile Strength Yield Strength Elongation
6063 T5 >160MPa >110Mpa >8%
6063 T6 >205MPa >180Mpa >8%
6061 T6 >265MPa >245Mpa >8%

Yatai Aluminium Profile 's Surface Treatment Specification:

Anodized

Oxide Layer

(average thickness)

AA10 ≥10μm
  AA15 ≥15μm
Electrophoretic Coating Composite Layer(average thickness) Level A ≥21μm
  Level B ≥16μm
Powder Coating Layer Hardness   ≥3H
Gird Test    ≥0
Minimum local thickness    ≥40μm
indentation hardness   ≥80
Gird test   ≥0







     sash white aluminum glass door with 0.8mm/1.2mm/2.0mm thickness



     sash white aluminum glass door with 0.8mm/1.2mm/2.0mm thickness







    GLASS OPTIONS:



      sash white aluminum glass door with 0.8mm/1.2mm/2.0mm thickness





Glass tyle

Tempered/frosted/reflective/Low-E glass/Tinted/Clear/Craft or with geometric- bar/ patterned glass//as customized

Single glass -5/6/8/10 (clear/ tempered glass)
Mid-hollow glass (5mm+9a+5mm)/(5mm+12a+5mm)/--(6mm+6a+6mm)/6+6A/9A/12A /27A+6mm
Laminated glass 5+ 0.38/0.76/1.52PVB+5mm//6+0.76/1.14PVB+6mm



Product reference

    sash white aluminum glass door with 0.8mm/1.2mm/2.0mm thickness sash white aluminum glass door with 0.8mm/1.2mm/2.0mm thickness

sash white aluminum glass door with 0.8mm/1.2mm/2.0mm thickness





Please Contact:



sash white aluminum glass door with 0.8mm/1.2mm/2.0mm thickness





1.How do you charge the mold fee?



Incase we need to open new mold for your ordered profiles ,the mold fee will be refounded to customers when your order quantity reaches a certain amount.



2.How do you quote price ,per ton or per meter?



We provide more than two pricing modes



3.What is the differences between theoretical weight and actual weight?



Actual weight is the  actual weight including packaging



Theoretical weight is identified according to the drawing,calculated by of the weight of each meter multiplied by the length of profile



4.How long it will take you to make samples?



1-2 days after the tools making in general.
