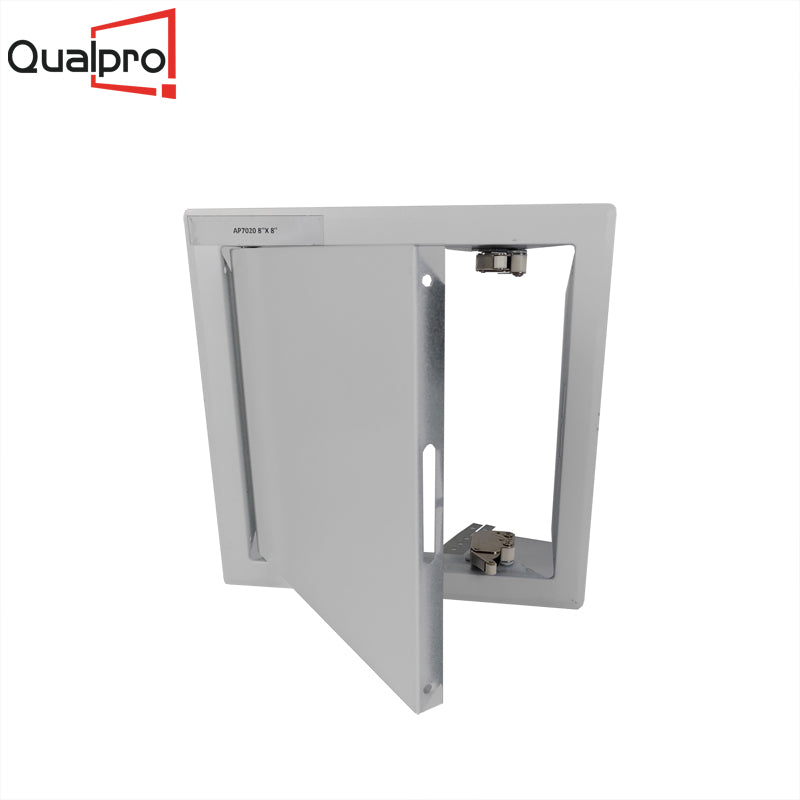

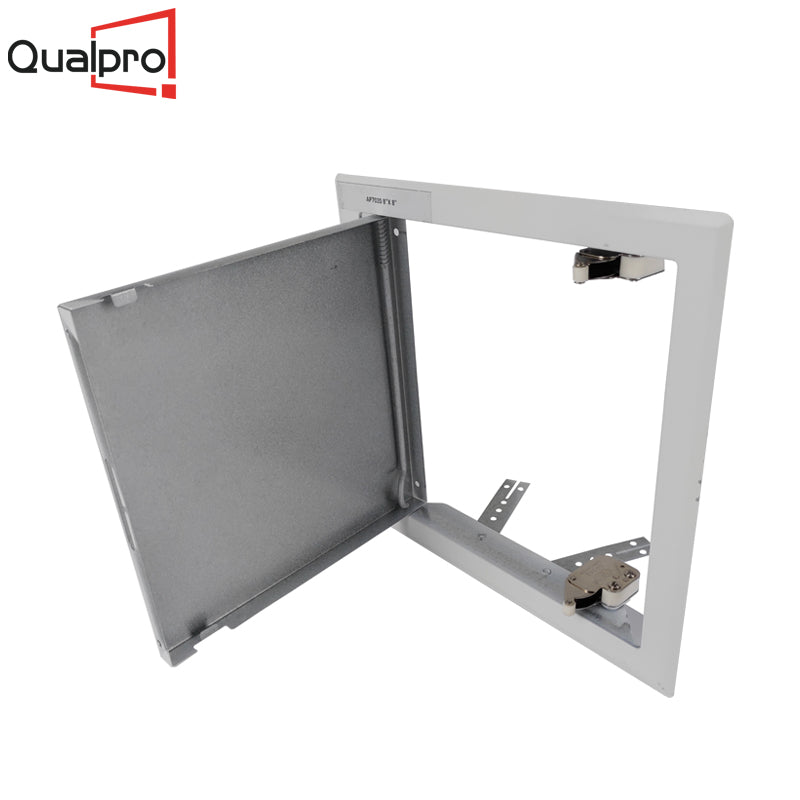

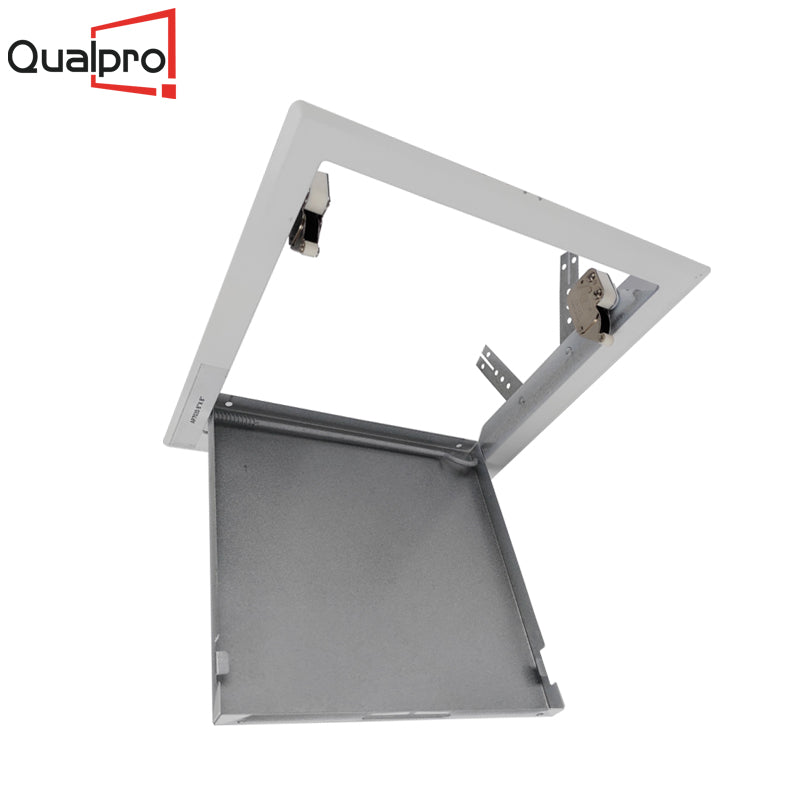

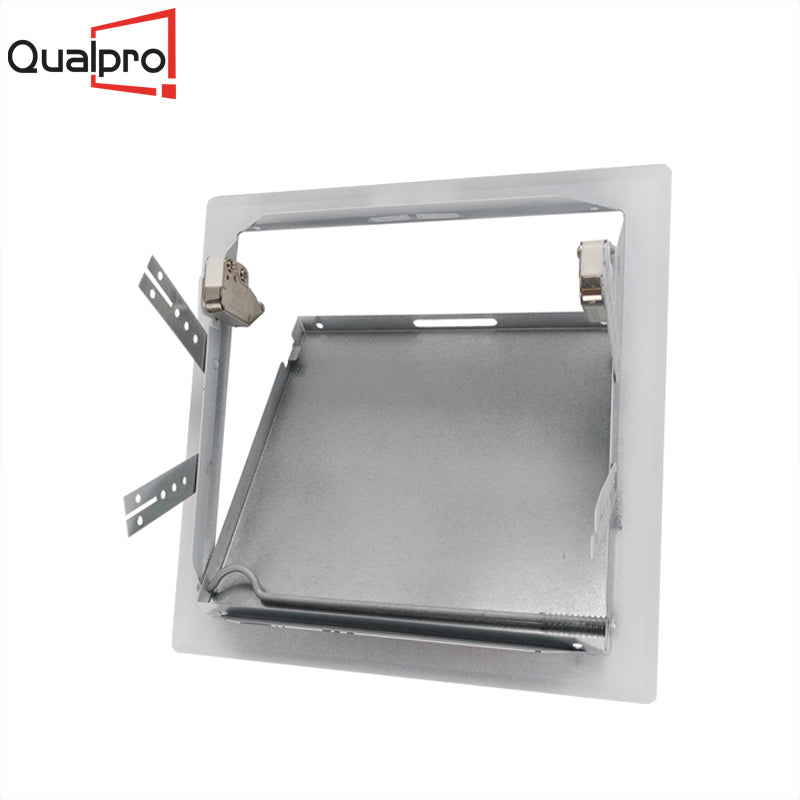

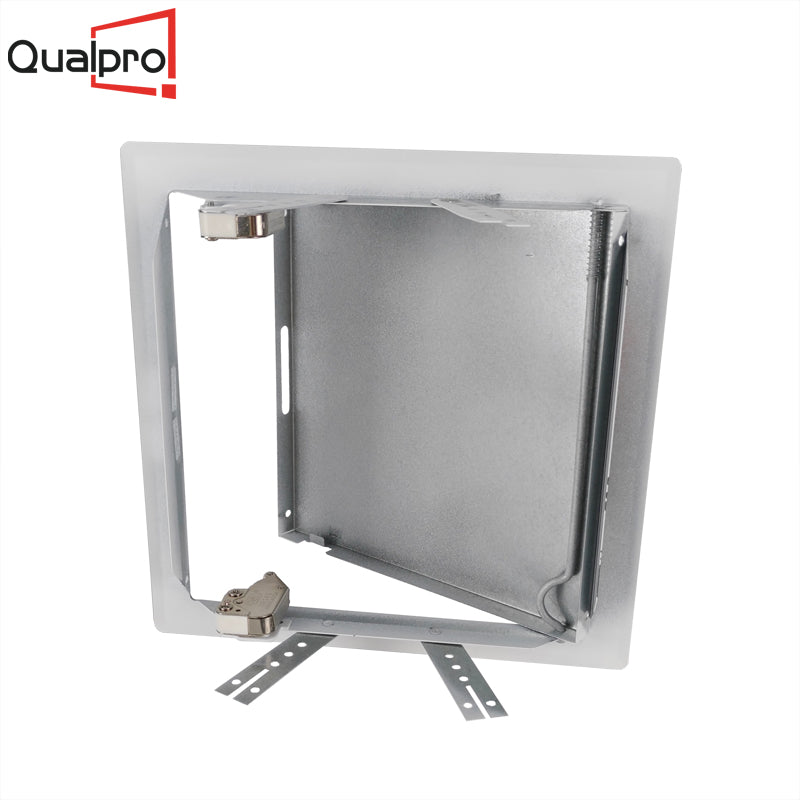

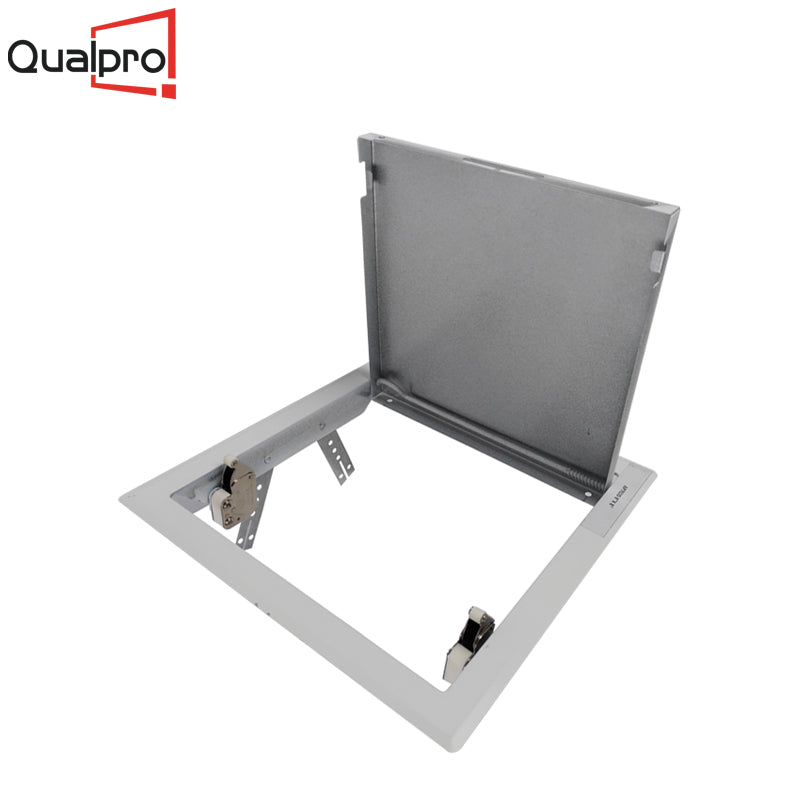

Removable Door Steel Frame sliding trap door on China WDMA

Description Removable Door Steel Frame sliding trap door     Attributes: 1.Easy and quick installation,fixing by screws or clips2.High-class quality, perfect design, light weight but strong bearing capacity, no rusting and keeping forms.3.Mildew resistant,corrosion proof Application:1.Ceilings and walls of building, hotels, shopping malls, hospital, school, office, house and etc indoor...
color :
White
$5.00

China Windows and Doors Manufacturers Association

Description

Removable Door Steel Frame sliding trap door

  Removable Door Steel Frame sliding trap door



Attributes:

1.Easy and quick installation,fixing by screws or clips
2.High-class quality, perfect design, light weight but strong bearing capacity, no rusting and keeping forms.
3.Mildew resistant,corrosion proof


Application:
1.Ceilings and walls of building, hotels, shopping malls, hospital, school, office, house and etc indoor decoration
2.Central air conditioning system
3.Access ductwork or pipe work above the light fixtures , vents , fire fighting pipeline, bathroom pipeline, etc.

Specification:
1. Steel sheet access panel for wall or ceiling application
2. White powder-coated finish or coating in special colors, provides high durability and corrosion protection.
3. With picture frame and removable door panel.
4. The four riveted, swiveling wall anchors guarantee a secure hold in walls and ceilings. Adjustable mounting holes and anchors fasten frame to studs, stone or brick.
5. Touch/ Push latch (AP7020)6. The door leaf can be left or right opened. Concealed hinge mechanism door can be moved out.
7. Simple installation in studs or ceiling. No further painting required.
8. Good value for all plumbing, electrical mechanical inspection or applications.
9. Standard sizes from 150 x 150 mm to 600 x 600 mm. Special size available upon request.



Model No. Nominal Size Opening Size Overall Size Packing
mm inch W1 x L1 (mm) W2 x L2 (mm) PCS/CTN
AP7020 150*150 6*6 145*145 185*185 10
200*200 8*8 195*195 235*235 10
300*300 12*12 295*295 335*335 10
400*400 16*16 395*395 435*435 10
500*500 20*20 495*495 535*535 10
600*600 24*24 595*595 635*635 10
You may like
You may like
Company File

Removable Door Steel Frame sliding trap door

COMPANY PROFILE

Qualpro Technology Co.,Ltd is specialized in the field of Access Panels & Doors,Air Grille & Diffuser, Air Duct & Fire Damper and HVAC products for more than 10 years.

Most of our products meet certain international quality standard, an excellent team which is experienced with market and has strong technical capability to customize cost effective and high quality products for customers at home and abroad.

Qualpro Technology has been keeping to make great efforts to update our management, techniques and efficiency, the user experience from quality, service, technology, appearance, structure, function, design, details, etc., so as to provide much better services for customers.

Committed to long-term mutual beneficial cooperation, we cherish every business and friendship!



Products Showroom

Removable Door Steel Frame sliding trap door



Our Certifications

Removable Door Steel Frame sliding trap door



Famous Exhibitions

Removable Door Steel Frame sliding trap door

Workshop View

Removable Door Steel Frame sliding trap door

As the leader company in access panel for more than 10 years.

-10 years manufacture experiences with 2000 square meters factory in China.
-Export to over 45 countries around the world.
-About 20 different types Access Panel with Aluminum / Steel / Plastic FrameCustomized is available.
-4 Modern production lines and 150 experienced workers.

Production Flow

Removable Door Steel Frame sliding trap door

After 10 years' development,the area of our factory was expanded to 20000 square meters. Purchasing department, R&D department, QC department and Production department are independent, so that we could confirm the quality of all products, standard package and delivery just-in-time. What most important is that we have a team for after-sale service.
At the same time, welcome the cooperation sample, technical drawing or design concept provided!

Application

Removable Door Steel Frame sliding trap door

Access Panel is widely used in ceilings,walls,plumbings,ducts,values,switches,cupboard units etc.
Access Panel applications for home renovation projects, contractors, builders and building supply retail:
-Wall Access - Use an access panel to access wires, valves, cables, conduits inside a wall by cutting an opening into the drywall or sheetrock and installing an access panel. Perfect for home security installations and home theater installations.


-Ceiling Access - Use access panels to access vents, wiring, cable shafts, conduits inside a ceiling. Simply cut an opening into your ceiling, apply a bead of adhesive on the outer flange and press the access panel frame in place. Perfect for any application that requires a whole to access a ceiling.


-Access Holes in Furniture - Access panels are perfect for hiding unsightly wiring. Cut an opening into closets or desks, install an access panel, and use the pre notched knock-outs in the access door to pull through wiring.


-Home Security Applications - Need to install a hidden valve or sprinkler control panels, outside camera wiring, or other home security applications? The access panel is your solution. Simply use the access door frame as a template to draw the size of the opening needed, use a saw to cut out the opening and insert the access panel.


-Outdor Pool and Hot Tub Installation - An access panel comes in handy when installing pool pump valve and pool filter related equipment. Access panels provides easy access. Simply use a screw driver or similar, insert it into one of the door release holes and pop out the access door. The high impact ABS Plastic material of the access panel is UF treated and does not fade and is water resistant. A real time saver for professional installers as well as do-it-yourselfers.


-Bathroom Renovation Projects - Replacing your bath tub with a new whirlpool tub? Need access to your wall. Look no further. The access panel is easy to install and easy to use. Create a seamless look by installing the reversible access frame in a flush mount prior to building your wall. Simply nail the outer flange to the wood framing and build up the drywall to the lip of the frame to create a flush mount installation. Now you can even tile on the access panel door to create that seamless look.

Package & Delivery

Removable Door Steel Frame sliding trap door

Packing: Usually 10 pcs/carton or customized
Lead Time: Within 20 days after order confirmed
Loading Port: Wuhu, Shanghai, Ningbo
Shipping: By sea; By air; By express
Sample time: About 7 days

FAQ

1, Q: Are you a factory or a trading company?

A: We are a professional Idustrial and Trading Comany, and have more than 10 years production experience.



2, Q: Could you provide some sampes?

A: We will be happy to send you free existing samples if you need check the quality.



3, Q: How does your factory do regarding quality control?

A: "Quality is priority." We always attach great importance to quality control from the begining to the end.



4, Q: What is your MOQ?

A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.



5, Could you give me customized products?

A: Yes, you can send us your design drawing or a sample and it will be produced according to your requst.



6, which kinds of service you can provide?

1). Free samples
2). 12h online service
3). On-time delivery service
4). Direct manufacturer with competitive price
5). 8 years Experienced factory providing OEM&ODM service
6). Provide the best after-sales service



Any other questions, please contact us.
