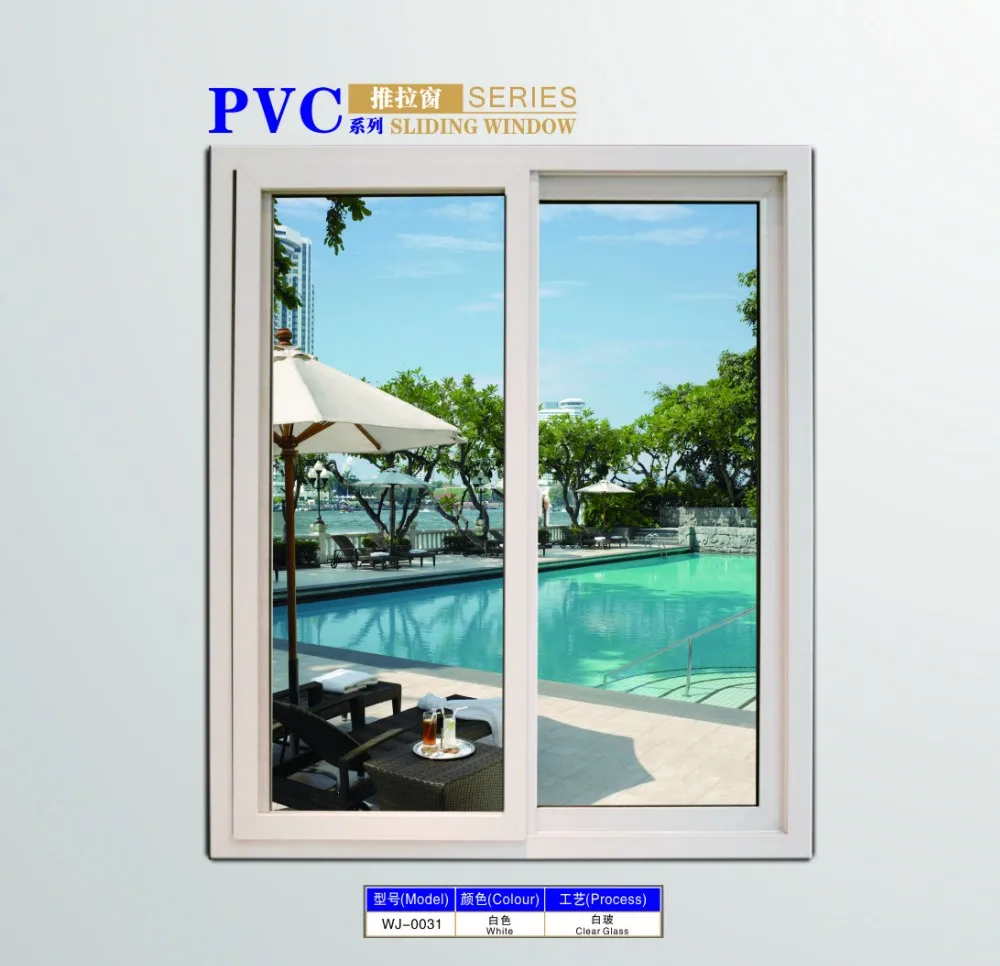

PVC sliding window design UPVC double glazed sliding windows on China WDMA
PVC sliding window design UPVC double glazed sliding windows
1. The main PVC profile thickness of the window conforms to the national standard GB/T8814-2004 and the national standard GB/T28886-2012.
2. The standard notch design realizes more opening methods and improves the performance of the whole window. At the same time, it realizes flexible opening, convenient use and security anti-theft function.3. Use new Anton EPDM sealing strip, has excellent resistance to oxidation, ozone and erosion.

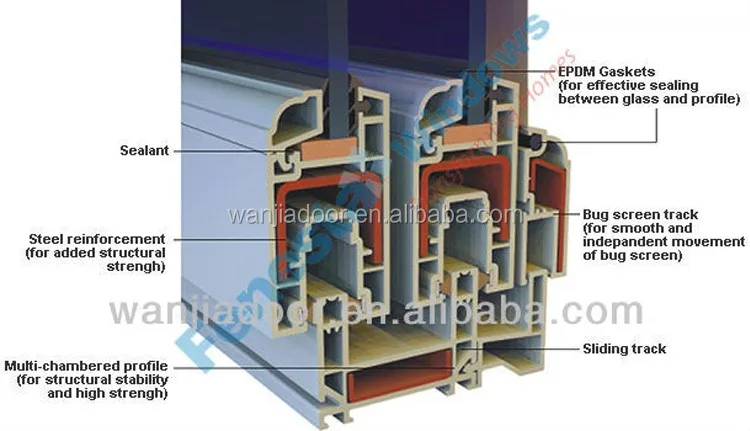

4. The large section design of the profile improves the weldability of the doors and windows, the torque resistance of the profile itself, the drop hammer impact, etc., ensuring that the doors and windows are not easily cracked in cold regions;
5. The hollow glass is filled with argon gas, which can reduce the U value of the insulating glass and increase the heat insulation of the hollow glass
6. The special screw connection design eliminates the hidden danger caused by V-welding, improves the connection strength and enhances the aesthetic effect;
7. The insulation performance reaches K=2.2W/(m2 • K);
8. Avaliable for single glass and double glass ; there are two types of sash: crescent lock and multi-point lock;
9. The three-track design with net track to prevent mosquitoes.
Product Information
|
||
Window Type
|
UPVC / PVC Sliding Window
|
|
Opening style
|
Sliding
|
|
Frame Material
|
UPVC / PVC
|
|
Color
|
Cutomized
|
|
Size
|
Cutomized
|
|
Functions
|
Heat & Sound insulation
|
|
Profile
|
A. SHIDE/ CONCH brand, famous in China
B. Wall thickness: 2.5mm, with steel reinforcement inside C. Surface treatment: White, Dark Red, Dark Green, Moss Green, Brown, many colors are available |
|
Glass option
|
A. Single glass: 5,6,7,8,10,12,15,19mm Tempered Glass
B. Double glazing: 5+ 6/9/12 +5mm Tempered Glass C. Laminated glass: 5+ 0.38/0.76/1.52PVB+5mm Tempered Glass D. Tinted/Reflect Glass/Tempered Glass E: Customized |
|
Hardware
|
A. Made in China
B. Made in Germany C. Customized |
|
Fly screen
|
A. Stainless steel security mesh
B. Aluminum security mesh C. Fiberglass fly screen D. Retractable & invisible fly screen |


Main Features
1)Anti-corrosion, in the wet, salt spray, acid rain, corrosion, mildew, not insects.
2)The shape and size are stable, not loose, no deformation.
3)With self-flame retardant, will not burn.
4)Beautiful appearance, strong texture, rich colors, easy to scrub clean.
5)Using lightweight and flexible, impact resistance, no sound when the switch.
6)Basically no maintenance, no paint, low cost of use.
7)Air tightness, watertightness, etc. is much better than steel, wooden doors and windows, generally higher than their 2-3 levels.










Q:What is your main product?
A:We can supply the window system (including profile, glass,hardware,accessories ) as well as the finished products ready for installation.
Q:How can I know your price?
A:The price is based on buyer's specific requirement, so please provide below information to help us quote exact price to you.
1) Shop drawing / window schedule to show the window dimensions, quantity and type;
2) Frame color;
3) Type of glass and thickness (single or double or laminated or others) and color (clear, tinted, reflective, Low-E or others, with Argon or without).
Q:What is the standard size of your windows and doors?
A:Our product is CUSTOMER MADE. We always manufacture windows and doors according to buyer's dimensions.
Q:What is your delivery time?
A: 38 days after deposit and drawing confirmed
