Prefab steel frame multi-storey apartment / steel structure building modern design on China WDMA

Product Description Item Details Product name Prefab steel frame multi-storey apartment / steel structure building modern design Material Carbon steel, Q235, Q345, SR355 Standard GB, ASTM, AISI, DIN Dimensiton & Shape Customized Steel frame 1.  Welded or hot-rolled H section column & beam used to build up steel frame and...
$120.00
$60.00

China Windows and Doors Manufacturers Association

Product Description
Item
Details
Product name
Prefab steel frame multi-storey apartment / steel structure building modern design
Material
Carbon steel, Q235, Q345, SR355
Standard
GB, ASTM, AISI, DIN
Dimensiton & Shape
Customized
Steel frame
1.  Welded or hot-rolled H section column & beam used to build up steel frame and steel platform for multi storey apartment buildings.
2. Steel pipe, steel rod or steel angle are used to build up frame  elevation of roof & wall if sandwich panel is used for cladding system.
3. C/Z section channel (surface treatment is hot glavanized) are used as purlins for cladding system.
4. Galvanized steel rod and steel pipe are used to strengthen the connection between purlins.
5. Steel angle is used to enhance the connection between purlins and cloumns or beams.
6. Crane can be customized according to customer's request.
Cladding system
1.  Wall: brick wall or Corrugaed single sheet or sandwich panel (rock wool, galss wool, PU, EPS)
2.  Floor: galvanized floor decking sheet or steel rod floor trusses then concrete
3. Roof: galvanized floor decking sheet or steel rod floor trusses then concrete
                or with roof slope use single sheet or sandwich panel
Surface treatment
Hot galvanized or re oxide primer
Painting thickness
Customized, no less than 125 micrometer
Fireproof painting
As per customer's request, with CE certificate
Application
Prefabricated steel frame warehouse, small warehouse
Design software
PKPM, 3D3S, TKELA, AUTOCAD
MOQ
200 sqm
Trade terms
FOB or CIF
Payment terms
Deposit 30% T/T, balance shall be paid before shipment.
Package & loading
As per your request, 20'GP 17.5tons, 40'GP 22tons
Delivery days
35 days after receiving the deposit.

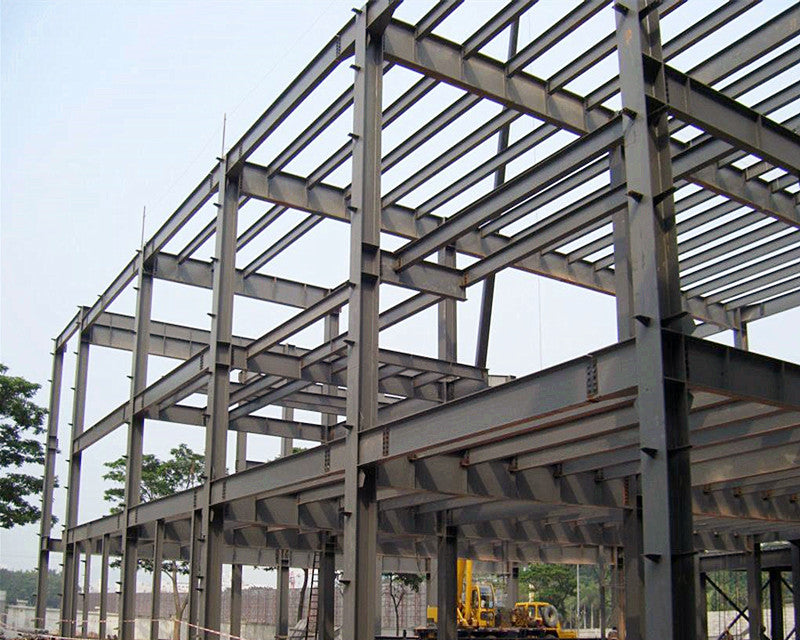

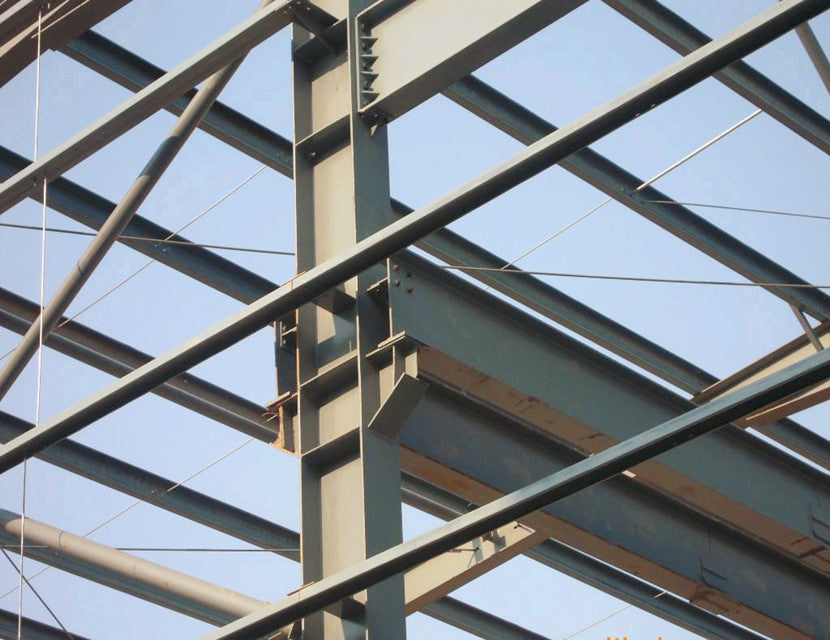

Steel frame

Welded or hot rolled H section column and beam are used to build up the steel frame and steel pllatform.  Less weight but much more strong for prefab hotel tall building.


All small components are welded together in our facoty, no further re-work on the job site.  Easy to install and disassemble.

Connection with the foundation

Anchor bolts are used to connect steel column with the foundation.



Sriffeners are used to enhance the links bwtween columns and foundation.  Strength the connection to foundation foor commercial residential steel platform..


Models of the anchor bolts are customized based on different projects.

Roof steel frame--with roof slope

C or Z section channels (surface treatment is galvanized, no easy to rust) are used to build up the roof steel frame.  Cable bracing are used to enhance the links bewteen two steel frame.


Steel rod and steel pipe's (surface treatment is galvanized) function is to enhance each purlins.  Steel angle is used between purlin and beam.


single sheet or sandwich panel is used for Roof cladding system.

Roof steel frame--without roof slope

Steel frame is similar with the floor frame, H section beam is used to build up steel platform.  Connection between cloumns and beams are high strength bolts.


Galvanized steel floor decking sheet or steel rod floor trusses are used for concrete of Roof.  Roof water proof and insulation treatment is the same as the civil work.

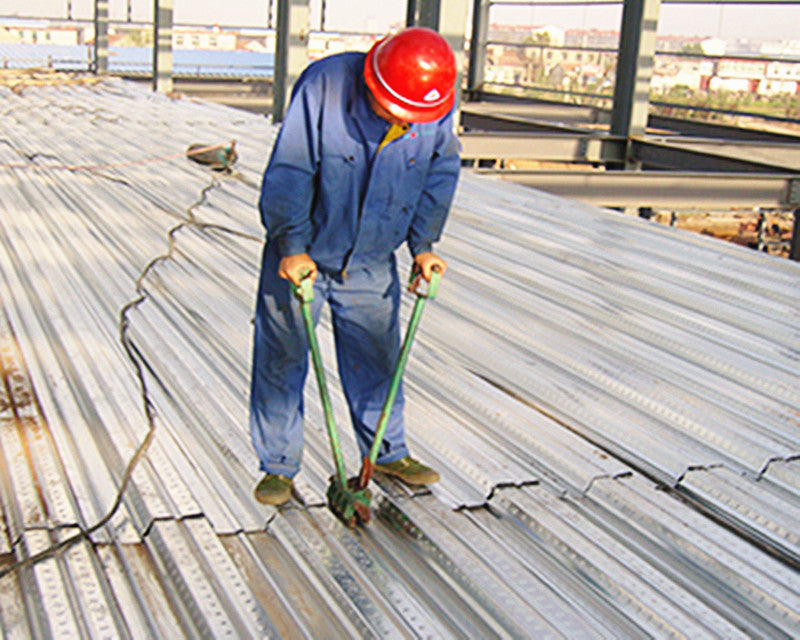

Floor decking sheet

Item 1: normal floor decking sheet: YX76-344-688 galvanized floor decking sheet

Item 2: New building material: steel rod truss floor, which is much more easy to install and fast.

Wall framing elevation--not brick wall

Both sidewall and endwall use C ection channels (surface treatment is galvanized) for the cladding system.


Connection type is plain bolts, usually model M12 is widely used.


Frame for door and window used steel tube or DOUBLE C channels.  Steel rod, steel pipe and angle steel will also be used to strengthen wall framing elevation.

Cladding system

For cladding system, there are four types:

1. Single corrugated sheet, thickness and model are customized.

2. Sandwich panel with the insulation of EPS, rock wool, or PU.

3. Double corrugated sheet with the insulation of glassfiber wool or rock wool.

4. For roof, single corrugated sheet and fiberglass wool are used, but for wall only use single corrugated sheet.

Detailed Images

Steel frame

Beam or column in variable cross-section can also be produced.

Protection

After painting ,we will take measures to protect the painting , especially the edge of steel components.

Painting make-up

Painting make-up work will be done on the job site beacuse of the damage caused by the long distance shipment, but not too much damage.

Packing & Delivery

Packing:
according to the container size and customer's requirement
20'GP 2.34x2.18x5.7m, 17.5tons
40' GP 2.34x2.18x11.8m, 22tons
40'HQ 2.34x2.71x13.58m,29tons

Delivery time:
20-35 days after receiving the deposit.

Our Service

Professional design

50+ managerial and technical staff, 15 years experience in steel projects , 3 years experience of overseas construction projects. As a professsional team, we will give you professional design and service..

Excellent construction quality

160+ experienced workers in steel components production, 90+ experienced workers on job site of steel frame construction, we provide excellent construction quallty by meeting the standard requirement.

Low cost

As a manufacturer and contractor, we have our won factory and constructionn team. Offer the integrated system solution from designing , manufacturing and installation.

Short building cycle

All components are prefabricated and finished in our factory, no need re-work on the job site. Also, detailed drawings and construction drawings will give you as installation instructions.

Enviromental protection

Components for steel frame are made of carbon steel. Cldding system is made of single sheet or sandwich panel. All items are made of environmental protection materials with good guality.

High secure and reliable

By using steel materials, which is less weight but strong enough, the whole steel frame has thermal insulation, wind performance, rainproof and earthquake resistance.

Our Company
Item
Description
Company name
Luoyang Juya Steel Structure Engineering Co., Ltd
Factory area
25000 sqm
Staff
300+
Certification
ISO9001 & ISO14001 & Safety in Production & Overseas Contracting Project Qualification
Production capacity
10000sqm/month
Product
We can offer the integrated system solution from designing to manufacturing and installation
Main production line
1. Two for steel structure industural buildings like warehouse, workshop, shopping mall, exhibition hall, car garage etc.
2. One for light steel structure muti-storey commercial buildings like hotel, apartment.
3. One for large span space heavy steel structure, like bridge and electricity tower
4. Complete machines for metal building materials production
Representative projects
1. Leather production factory for PT. LIPPO GROUP, Jakarta, Indonesia
2. Heat treatment workshop in Ghana, Africa
3. Steel frame workshop and multi storey office in Bratislava, Slovakia
4. Material production workshop for Luoyang Refractory (Group) Co., Ltd.
5. Production workshop for China Silicon Corporation Ltd.

Factory

25000sqm factory area, 250+ workers make sure product has great efficiency and high quality.

Office building

With professional technical team, and perfect management system, we offer you best design and service.

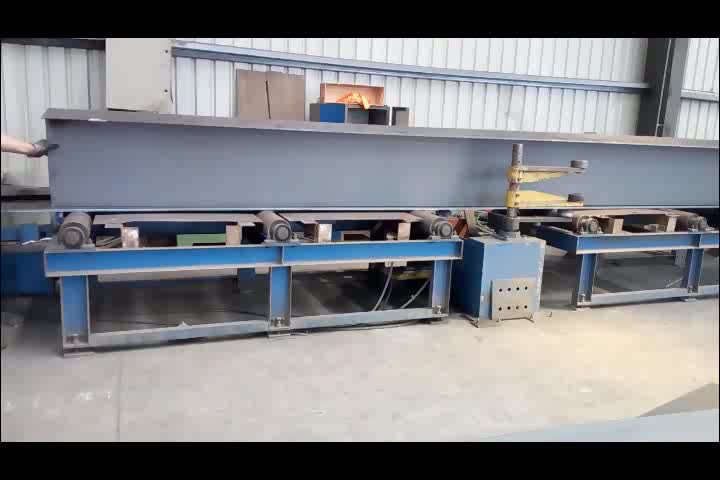

Complete machines

Complete machines from H steel beams, c/z channels, gutter, corrugated single sheet to sandwich panel.

Related Products

Low cost steel metal workshop


Multi storey steel office/workshop


Modern deisgn steel office


FAQ
1. What's the quality grade of the steel structure components?
Reply: Grade Q235B is used ,Q345B is also available if needed.
2. How about the derust grade?
Reply: For the main steel structure,the derust grade is ball blasting Sa 2.5,and manual derust St2.0 on secondary steel structure.
3. How to install?
Reply: We will supply with the detailed construction drawings as the construction munual to help you erect and install the building step by step.
4.How about the delivery time?
Reply:Usually within 35 days after receiving the deposit, also depends on the quantity.
