Popular extrusion mould maker on China WDMA

Product Description Popular extrusion mould maker Product Detail Usage Glazing bead cutting Machine Type PVC Window Processing Machine Applicable Material PVC, UPVC Function Cut Product Keywords Processing Machine Features: 1. Special use in cutting glazing bead of PVC win-door. 2. Special combination saw cutting steady which can avoid the inner...
Max. Working Width :
$700.00

China Windows and Doors Manufacturers Association

Product Description

Popular extrusion mould maker

Popular extrusion mould maker

Product Detail

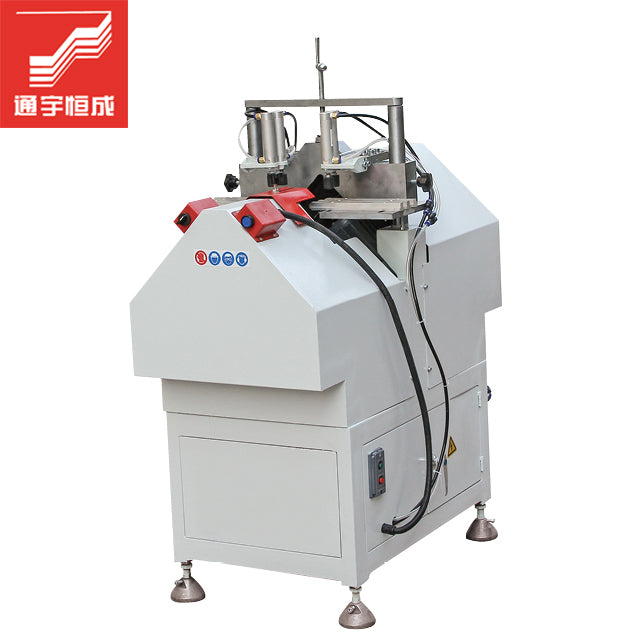

Usage Glazing bead cutting
Machine Type PVC Window Processing Machine
Applicable Material PVC, UPVC
Function Cut
Product Keywords Processing Machine

Features:

1. Special use in cutting glazing bead of PVC win-door.

2. Special combination saw cutting steady which can avoid the inner corner welding tumor of sash simultaneously so that make the glazing bead to be connected well and looks nice.

3. Adopt the special mold which can cut two pieces of profile at one time.

4. Special measurement device which ensures the size precision when cutting so that eliminating the errors between processed sash and glazing bead during they are assembling.

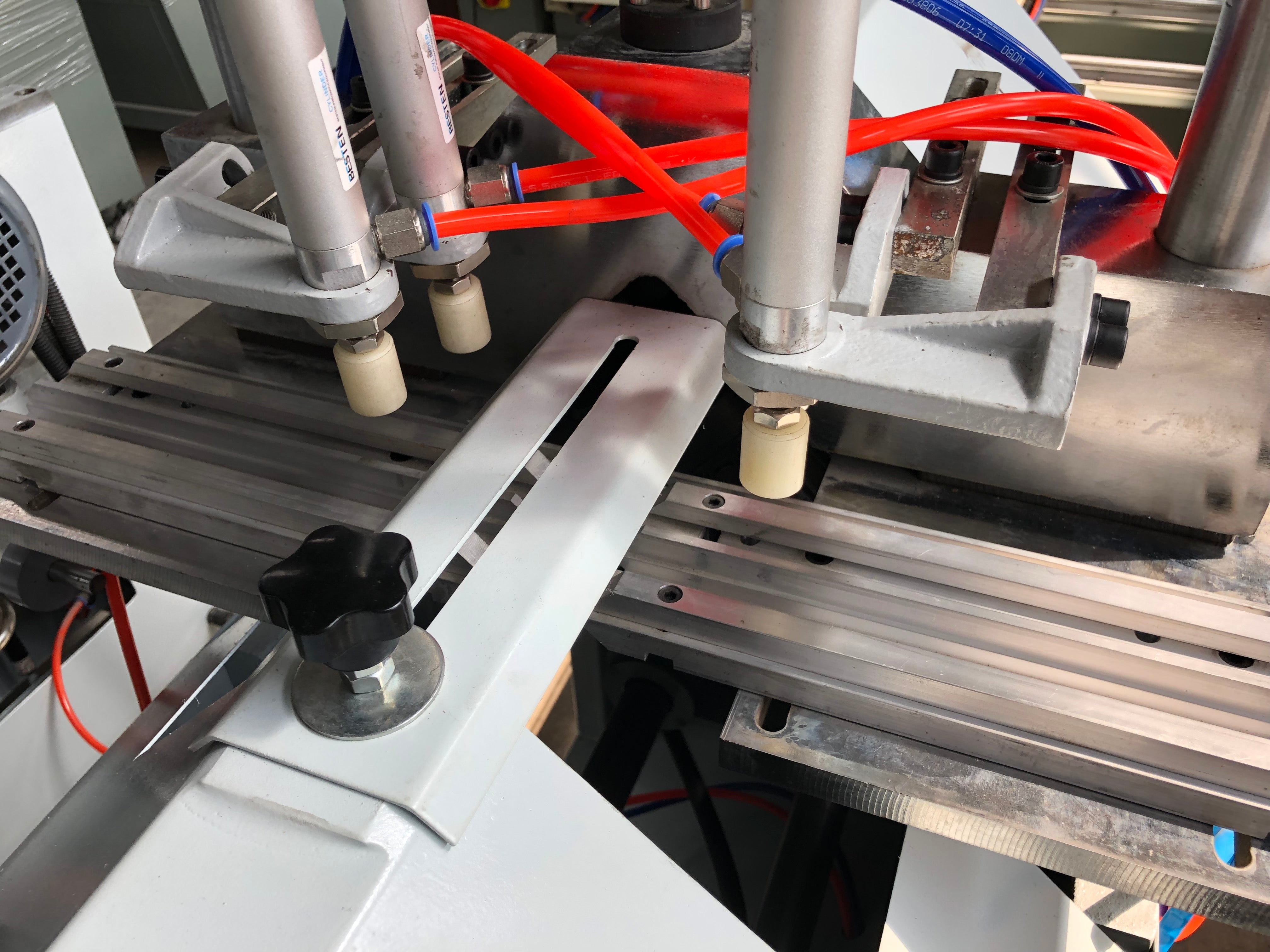

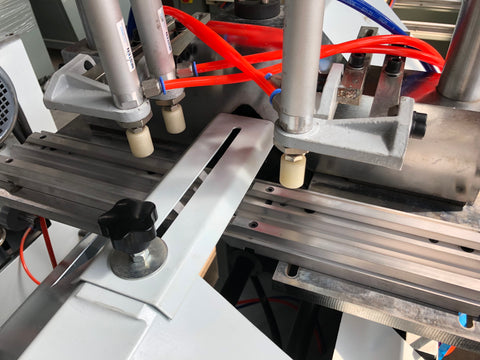

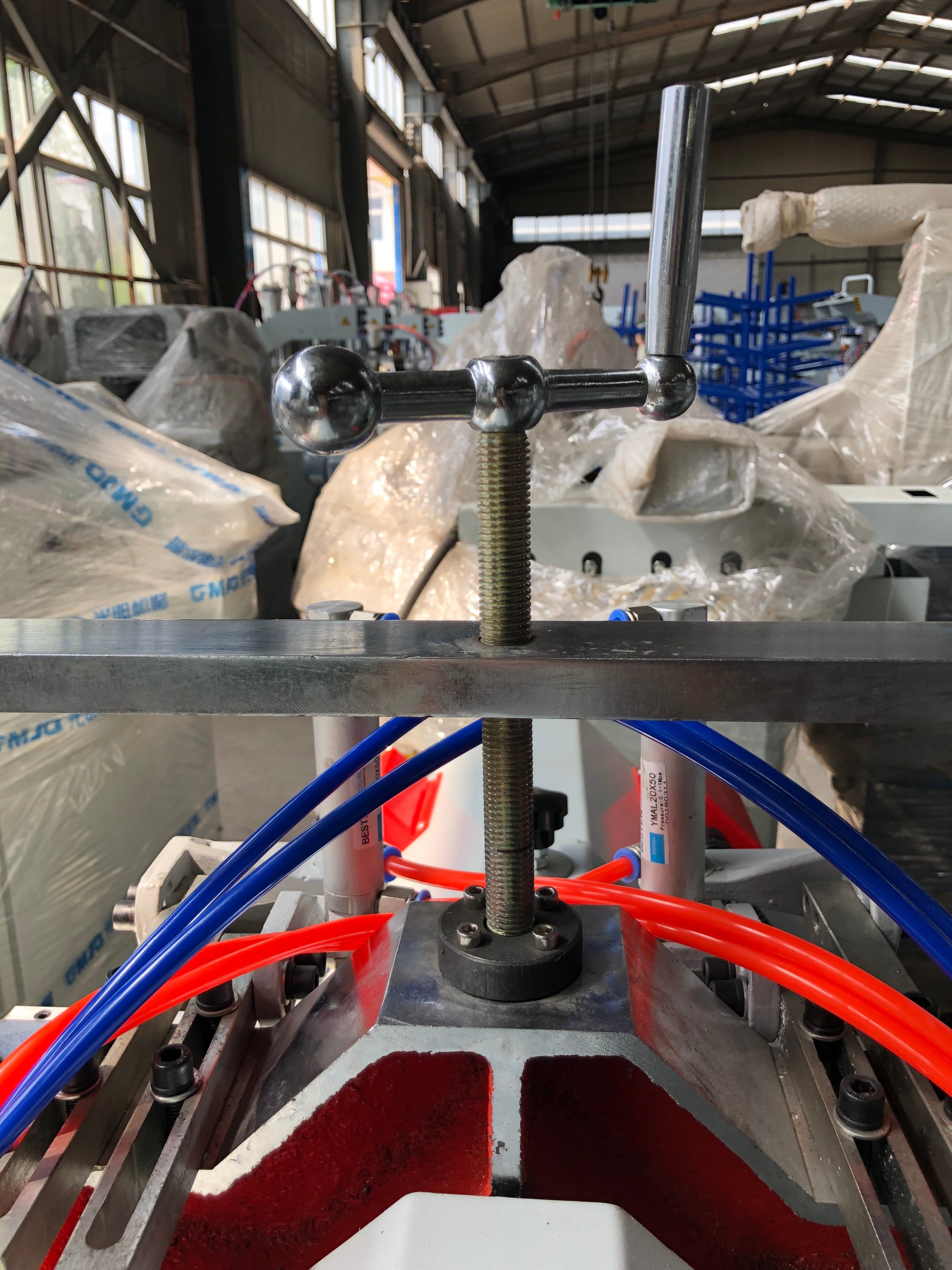

5. The vertical direction adjustable angle compaction system which adapted different profiles and make the press more reliably.

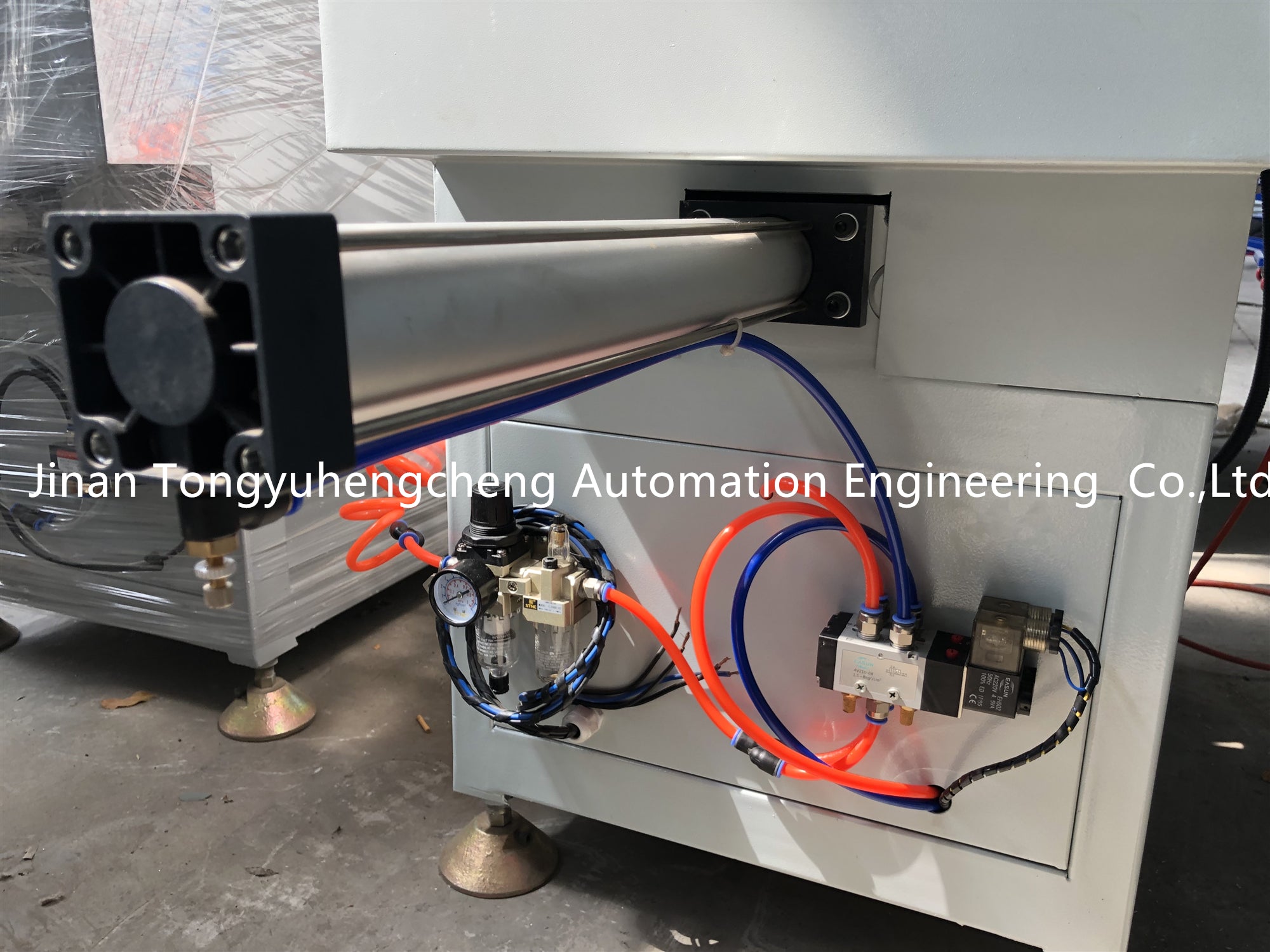

6. Pneumatic infeeding and the speed linearity adjustable.

7. The machine has pneumatic cleaning device.

Parameter:

Input Voltage 380V/50Hz
Input Power 1.5Kw
Operation Air Pressure 0.5~0.8MPa
Air Consumption 80L/min
Cutting Range 320~1800mm
Dimension 2560*1260*1350mm
Weight 200Kg


product details

Popular extrusion mould maker Popular extrusion mould maker Popular extrusion mould maker Popular extrusion mould maker Popular extrusion mould maker

Packaging & Shipping

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

Popular extrusion mould maker
Our Services

Popular extrusion mould maker

On exhibition

Popular extrusion mould maker

Company Information

Jinan Tongyuhengcheng Automation Engineering Co.,Ltd. is a high-techenterprise engaged in the design, development, production and marketing of PVC/aluminum doors and windows processing equipments. Our company has an experienced technical team, striving for excellence inproduct technology and providing the most advanced products and the most professional technical support for our initial & regular customers. We have most excellent sales team and after-sales service team that can offercomplete service during the entire sales process. We always treat every product as a handicraft, we seriously treat everyproduction process. Our business value is "Creat together, progress together, win-win". We will offer most suitable products for all of ourcustomers. Popular extrusion mould maker

FAQ
Popular extrusion mould maker

1. When can we arrange shipment?

We usually arrange shippment in 15 days after getting deopsit, but customized machines should be more than 25 days.

2.What you can do if my machines have problems?

a.We can send you free components to you if your machines are in guarantee time.

b.We can send our engineers to repair your machines
