OEM Service vertical opening window wall aluminium aerofoil louver blade price on China WDMA

  BALLEDE airfoil louver systems can be fixed or adjustable, allowing the angle of the louvers to be changed to provide increased levels of solar control. This type of system is more appropriate for east / south-east or west / south-west facing elevations .   MATERIALS: Aluminum alloy 6063-T5 OPERATION...
color :
Brown
Light Grey
White
Black
$70.00

China Windows and Doors Manufacturers Association

OEM Service vertical opening window wall aluminium aerofoil louver blade price



BALLEDE airfoil louver systems can be fixed or adjustable, allowing the angle of the louvers to be changed to provide increased levels of solar control. This type of system is more appropriate for east / south-east or west / south-west facing elevations .



MATERIALS: Aluminum alloy 6063-T5
OPERATION SYSTEM: Fixed / Motorized / Manual

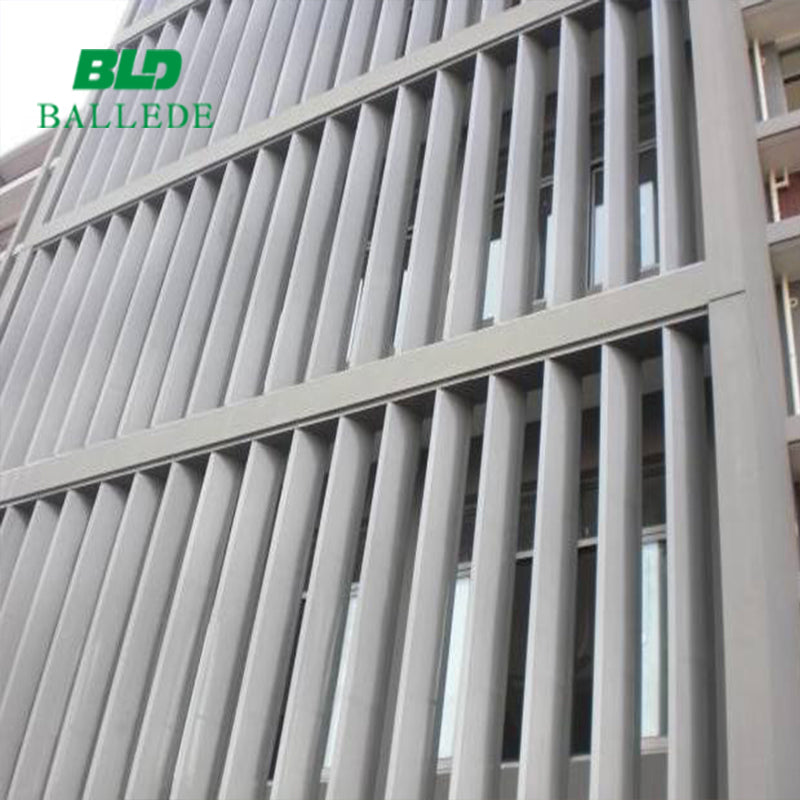

BLADES DIRECTION: Vertical and Horizontal
BLADE ANGLES: Adjusted 0~180 degree
BLADE SIZES: 100/150/200/250/300/400/450/600MM
BLADES SPAN: 1000 6000MM
SURFACE FINISH: Customized Colors in Powder coated/PVDF/Anodized/Mill finish



BLADES OPTIONS

OEM Service vertical opening window wall aluminium aerofoil louver blade price



TYPES(Fixed/Motorized/Manual for options)

OEM Service vertical opening window wall aluminium aerofoil louver blade price   OEM Service vertical opening window wall aluminium aerofoil louver blade price

                End Fixed                                                              Mounting to Building



OEM Service vertical opening window wall aluminium aerofoil louver blade price   OEM Service vertical opening window wall aluminium aerofoil louver blade price

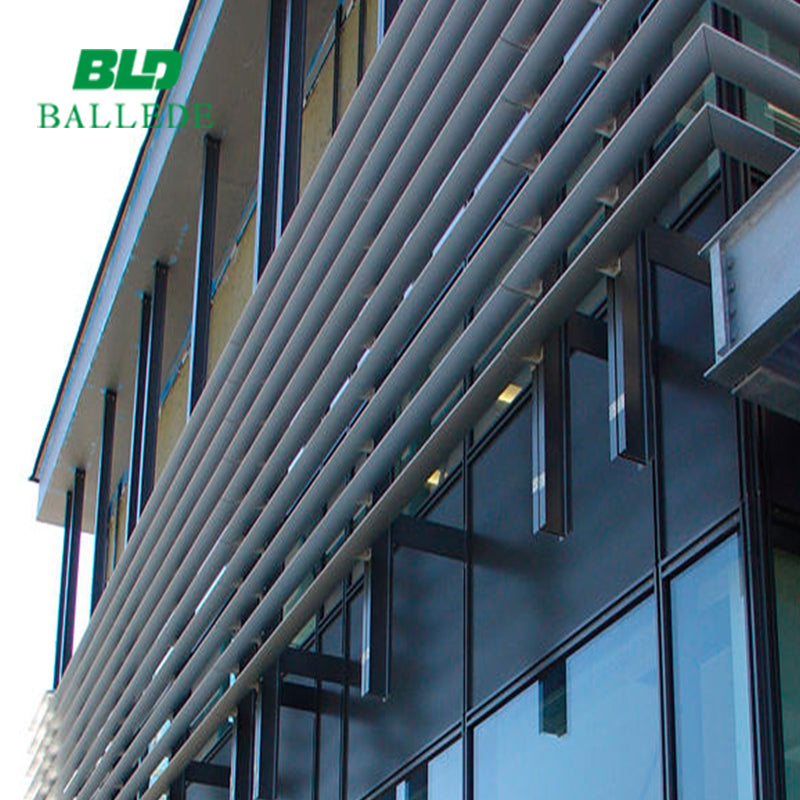

                                  End Fixed Overhead                                             Bracket Fixed Vertical



OEM Service vertical opening window wall aluminium aerofoil louver blade price   OEM Service vertical opening window wall aluminium aerofoil louver blade price

                      Bracket Fixed Overhead                                                   Sliding Screen



 Aluminum extruded wing-shaped profiles - 8 different standard profiles from 100 to 600 mm wide - Fins fixed at a chosen angle between 0 and 180 degrees in increments of 5 degrees - Adjustable fins with motorized operation, suitable for Building Management Systems - V-bracket fixtures, available in 0, 30 and 45 degrees for the 200 – 300 - Cup bracket fixtures, available in 0, 30 and 45 degrees for the 350 – 600 - Two standard supporting structures are available, tube or flat bar - Corner solutions are available for fixed systems - Available anodized, in polyester or PVDF coating (RAL) or in wood tones.



APPLICATIONS

OEM Service vertical opening window wall aluminium aerofoil louver blade price OEM Service vertical opening window wall aluminium aerofoil louver blade price

OEM Service vertical opening window wall aluminium aerofoil louver blade price OEM Service vertical opening window wall aluminium aerofoil louver blade price



-----------------------------------------------------------------------------
WE ARE PROFESSIONAL ON CUSTOM MADE LOUVERS FOR CUSTOMERS.
FOR MORE INFORMATION, PLEASE KINDLY CONTACT US OEM Service vertical opening window wall aluminium aerofoil louver blade price
