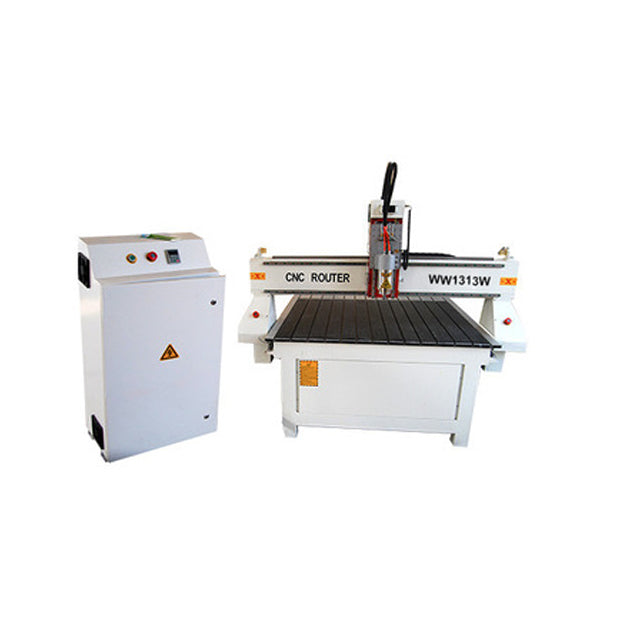

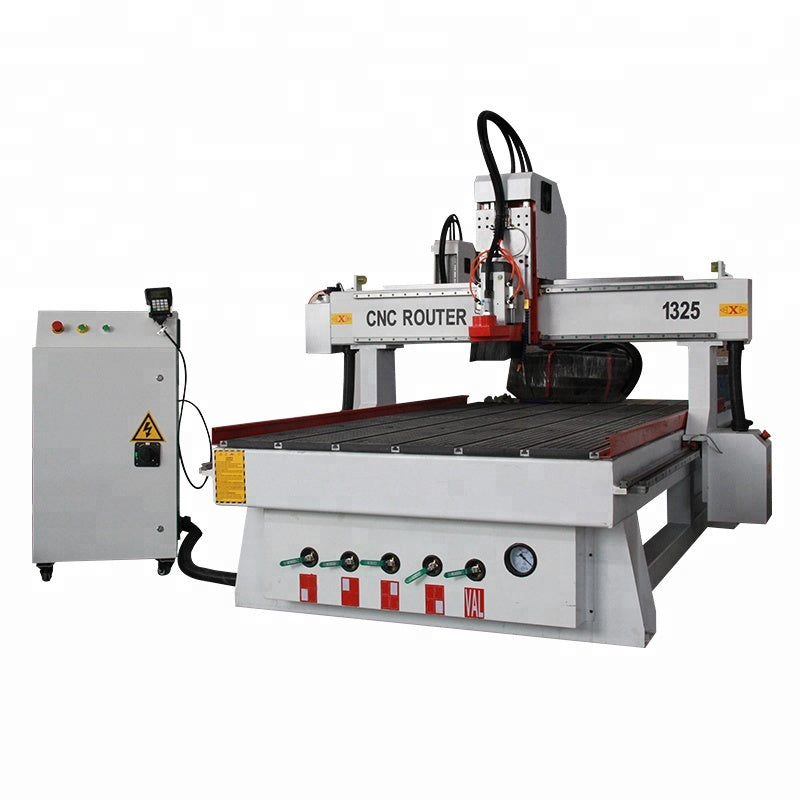

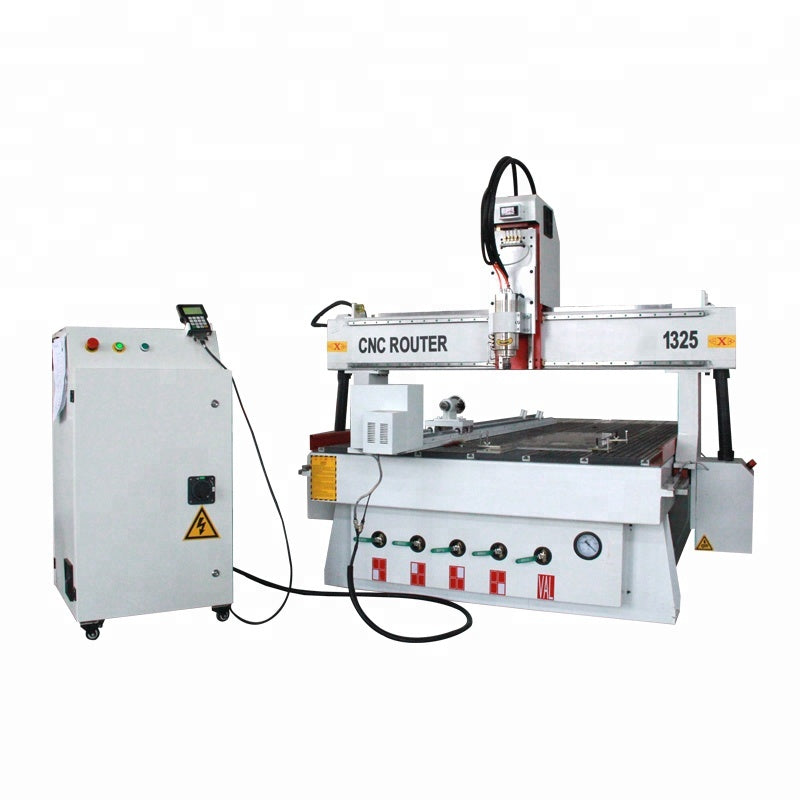

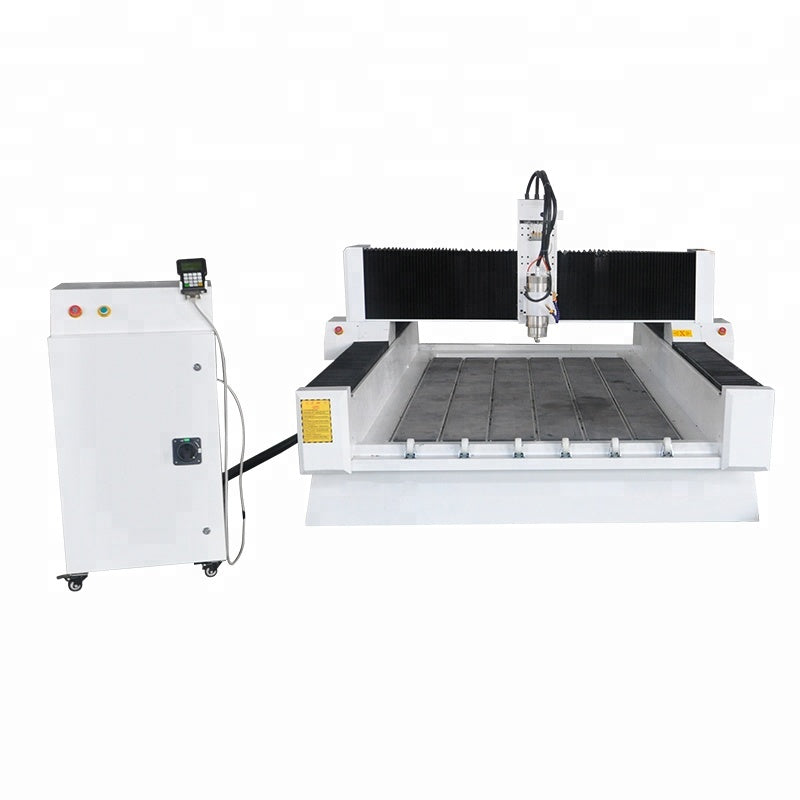

Main Door Wood Carving Design How Much Does A CNC Machine Cost on China WDMA

Product Description Wooden Carving Door Design How Much Does A CNC Machine Cost OverviewEntry-level three axis made from fully stress-relived structured steel for cutting and carving flat board. The Routers features • Precision ball scree drives • Rack and pinion transmission • Multi-zone vacuum plenum • World renown HIWIN bearings...
Model Number :
$6,400.00

China Windows and Doors Manufacturers Association

Product Description

Wooden Carving Door Design How Much Does A CNC Machine Cost

Overview
Entry-level three axis made from fully stress-relived structured steel for cutting and carving flat board. The Routers features • Precision ball scree drives • Rack and pinion transmission • Multi-zone vacuum plenum • World renown HIWIN bearings • Windows® based easy-to-learn and use G-Code Interface (multiple languages).

Advantages
1) The machine’s body is strong, high-precision, reliable and durable.
2) Imported high-precision ball screw, which moving smoothly, to ensure the machine’s high precision.
3) Well-known brands of HSD Air-cooled brushless spindle, strong cutting ability, low noise, to ensure the machine working for long time.
4) High-performance driven motor to ensure the machine’s high speed and accuracy.
5) Perfect design, top quality accessories, to minimize the machine’s failure rate.
6) Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.


Materials Cut
Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.

Applications
3D Carving, Acrylic Fabrication, Aluminum Fabrication, Architectural Millwork, Cabinetry, Exhibits and Fixtures, Signmaking, Arts and Crafts, Furniture, Boat Building, Musical Instruments and More.

Specification
No
Description
Parameter
01
X,Y,Z Working Area
1300x2500x200mm
02
Table Size
1360×2940mm
03
X,Y,Z Traveling Positioning Accuracy
±0.03/300mm
04
X,Y,Z Repositioning Accuracy
±0.03mm
05
Table Surface
Vacuum and T-slot Combined (Option: T-slot Table)
06
Frame
Welded Structure
07
X, Y Structure
Rack and Pinion Drive, Hiwin Rail Linear Bearings
08
Z Structure
Hiwin Rail Linear Bearings and Ball Screw
09
Max. Power Consumption
(Without Spindle) 3.2Kw
10
Max. Rapid Travel Rate
33000mm/min
11
Max. Working Speed
25000mm/min
12
Spindle Power
3.0/4.5/6/7KW
13
Spindle Speed
0-18000RPM
14
Drive Motors
Stepper System
15
Working Voltage
AC380V/50/60Hz,3PH (Option: 220V)
16
Command Language
G Code
17
Operating System
DSP System (Options: Ncstudio/Mach3 PC Software)
18
Computer Interface
USB
19
Flash Memory
128M(U Disk)
20
Collet
ER25
21
X,Y Resolution
<0.01mm
22
Software Compatibility
Type3/UcancameV9 Software (Option: Artcam software)
23
Running Environment Temperature
0 - 45 Centigrade
24
Relative Humidity
30% - 75%
25
Packing Size
3300X2100X1970mm
26
N.W.
1200KG
27
G.W.
1450KG
28
Optional Parts
Air Cooling Spindle or Water Cooling Spindle
Syntec Control System
Dust Collector/ Dust Hoods for three Axis
Vacuum Pump
Rotary System
Mist-cooling System
850W Yaskawa/800W Panasonic Servo Motors
Video

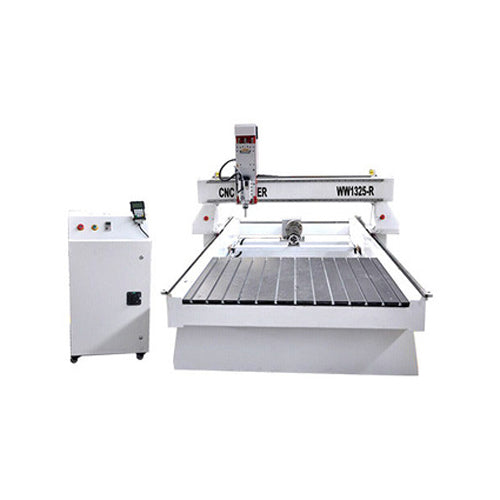

Rotary Axis Carving

MDF Engraving

Detailed Images

Water Cooling Spindle

Original: China

High quality water cooling spindle, High cost perfermence.

Inverter

Brand: Delta
Original: Taiwan
High quality inverter, widedly used in CNC router machine, high precision and good stability .

DSP Controller

Original: China
High quality CNC router machine controller, widely used for CNc router machine.
Interface: USB

Stepper Motor

Original: China
High quality domestic stepper motor, widely used for CNC router machine.

Gantry

Original: China
Gantry thickness 8~10 mm, with the aging threatment.

Control Box Inside

Inverter, Drivers and the electric parts in the control cabinet.

No
Option Part
1
Vaccum Pump: holding the sheet materials.
2
Mist-cooling System: cooling down the tools durning cutting metals.
3
Dust Collector: collect the dust during machine processing.
4
Rotary: clamp round materials for 4D engraving.
5
ATC Function: changing tools automatically.
Basic Accessories
Certifications
Packing & Delivery
Packaging
Size
3300X2100X1970mm
G.W.
1450KG
Packaging Details
The normal package is plywood box(Size: L*W*H). Delivered with in 2 weeks after payment.

Guarantee & After Sales Service

1.)The machine is guaranteed for 12 months.
2.)Technical support by phone, e-mail or MSN around the clock.
3.)Friendly English version manual and operation video CD disk.
