Low Cost Galvanized Prefab Light Steel Structure Canopy Carport Garage on China WDMA

Product Category Steel Structure Warehouse Steel Structure Workshop Chicken Poultry House Multi-floor Building Steel Structure Hangar Prefabricated House Low cost galvanized prefab light steel structure canopy / carport / garage: Product Description Product description: Low cost galvanized prefab light steel structure canopy/carport/garage is a new type of building structure system....
Dimensions :
$99.00

China Windows and Doors Manufacturers Association

Low cost galvanized prefab light steel structure canopy / carport / garage:

Product Description

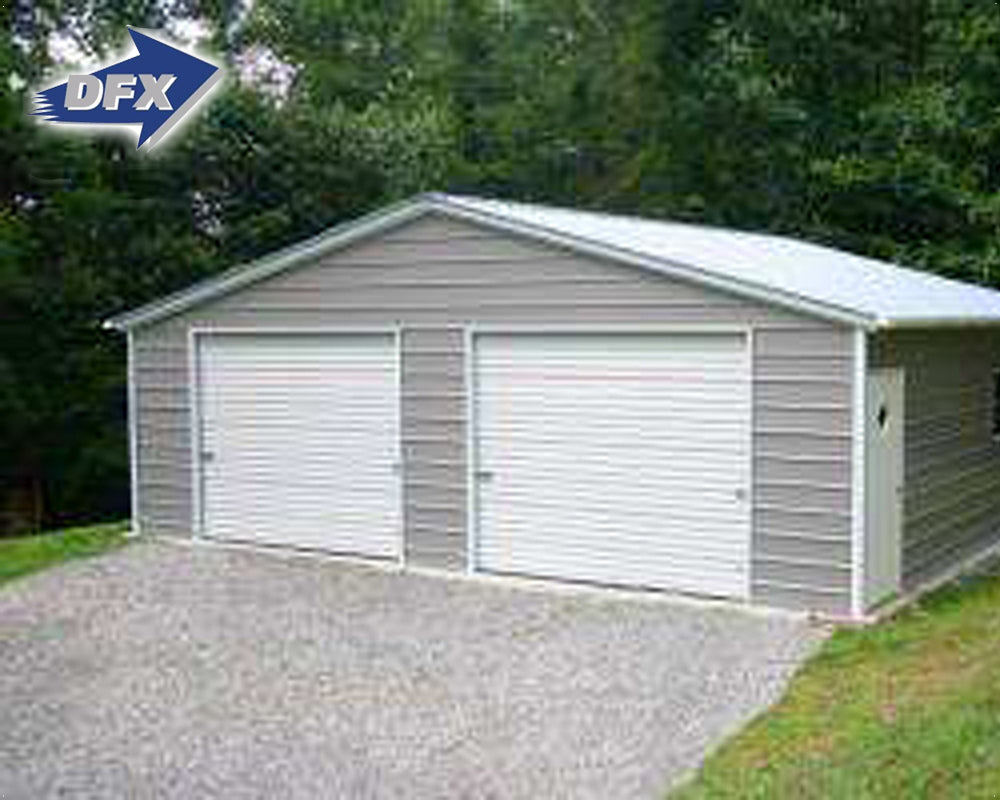

Low Cost Galvanized Prefab Light Steel Structure Canopy Carport Garage

Product description:

Low cost galvanized prefab light steel structure canopy/carport/garage is a new type of building structure system. The main steel frame is formed by linking up H-section, Z-section and U-section steel components while roof and wall using a variety of panels and other components such as windows, doors, and cranes.



Product application:

Low cost galvanized prefab light steel structure canopy/carport/garage is widely used as industry factory building, warehouse, gymnasium, poultry shed, school and medical clinic, etc.



2. Specification

Items

Specification
Main Steel Frame Column Q235, Q355 Welded H Section Steel
Beam Q235, Q355 Welded H Section Steel
Secondary Frame Purlin Q235 C and Z purlin
Knee brace Q235 Angle Steel
Tie Rod Q235 Circular Steel Pipe
Brace Q235 Round Bar
Vertical and Horizontal Support Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance system Roof Panel EPS Sandwich Panel /Glass Fiber Sandwich Panel /
Rock Wool Sandwich Panel / PU Sandwich Panel /Steel Sheet
Wall Panel Sandwich Panel / Corrugated Steel Sheet
Accessories Window Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window
Door Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Rainspout PVC
Live load on Roof In 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade 12 Grades
Earthquake-resistance 8 Grades
Structure Usage Up to 50 years
Temperature Suitable temperature: -50°C~+50°C
Certification CE, SGS, ISO9001:2008, ISO14001:2004
Finishing Options Vast array of colors and textures available
Paint Options Alkyd painting, twice primary painting, twice finish painting
(grey paint, red paint, white paint, epoxy zinc, etc.) Or hot galvanized.

3. Characteristics

1). Different types and sizes according to customer's needs, large or small, wide span: single span or multiple spans, the max span is 36m without middle column.

2). Low cost and maintenance: unit price range from USD30/m2 to USD70/m2 according to customers request.

3). Fast construction and easy installation: time saving and labor saving, all the items are factory-made, pre-cut, pre-welded, pre-drilled, pre-painted.

4). Reduced construction waste, long using lifespan: up to 50 years.

5). Nice appearance.

6). Others: environmental protection, stable structure, high quake-proof, water proof and fire proof, and energy conserving.

Product Show

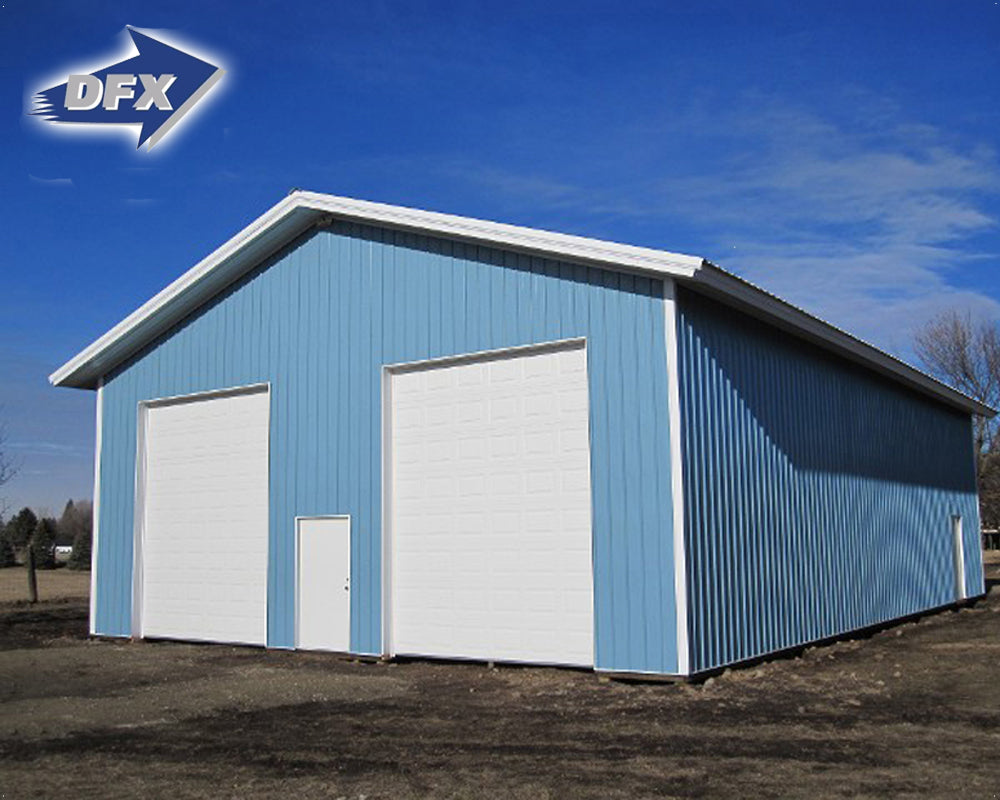

  Low Cost Galvanized Prefab Light Steel Structure Canopy Carport Garage

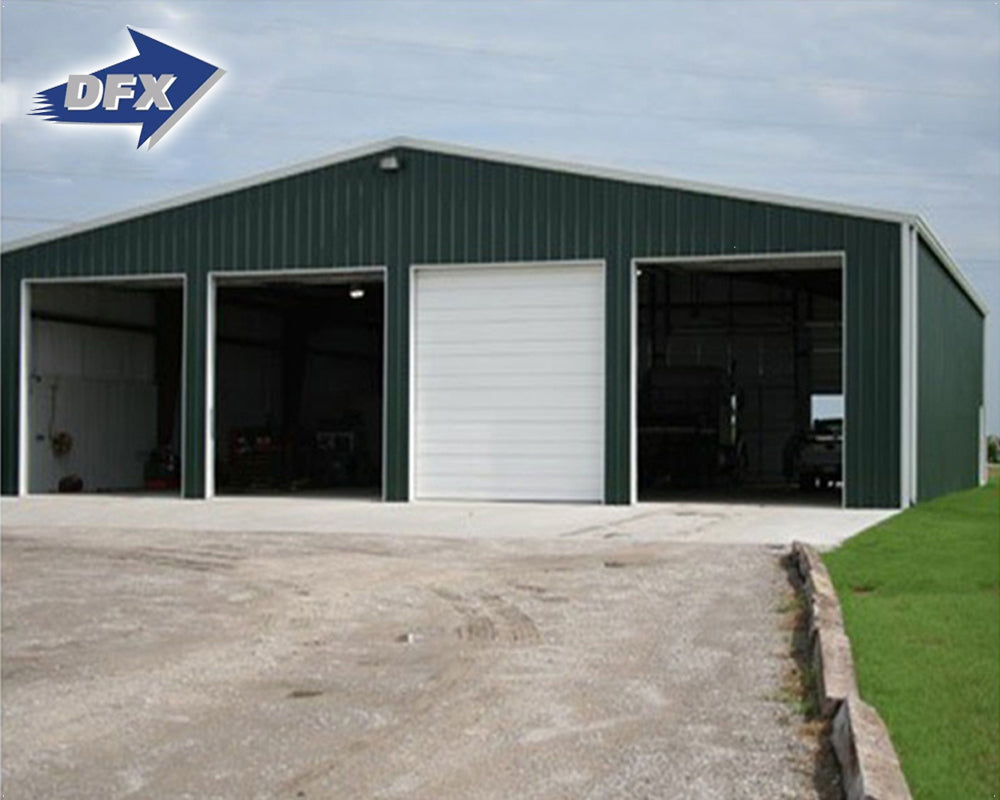

Low Cost Galvanized Prefab Light Steel Structure Canopy Carport Garage

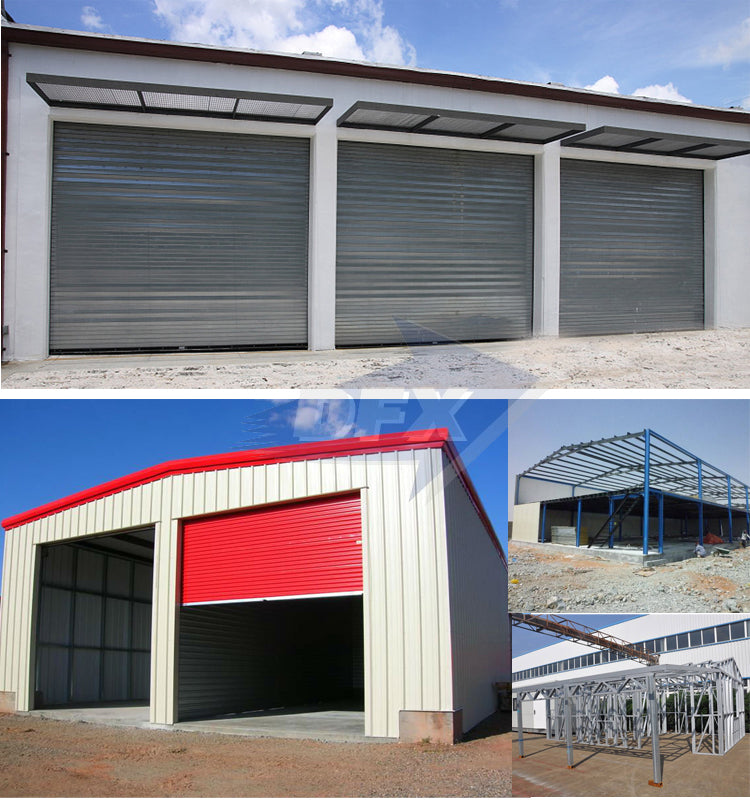

Low Cost Galvanized Prefab Light Steel Structure Canopy Carport Garage

Main Material

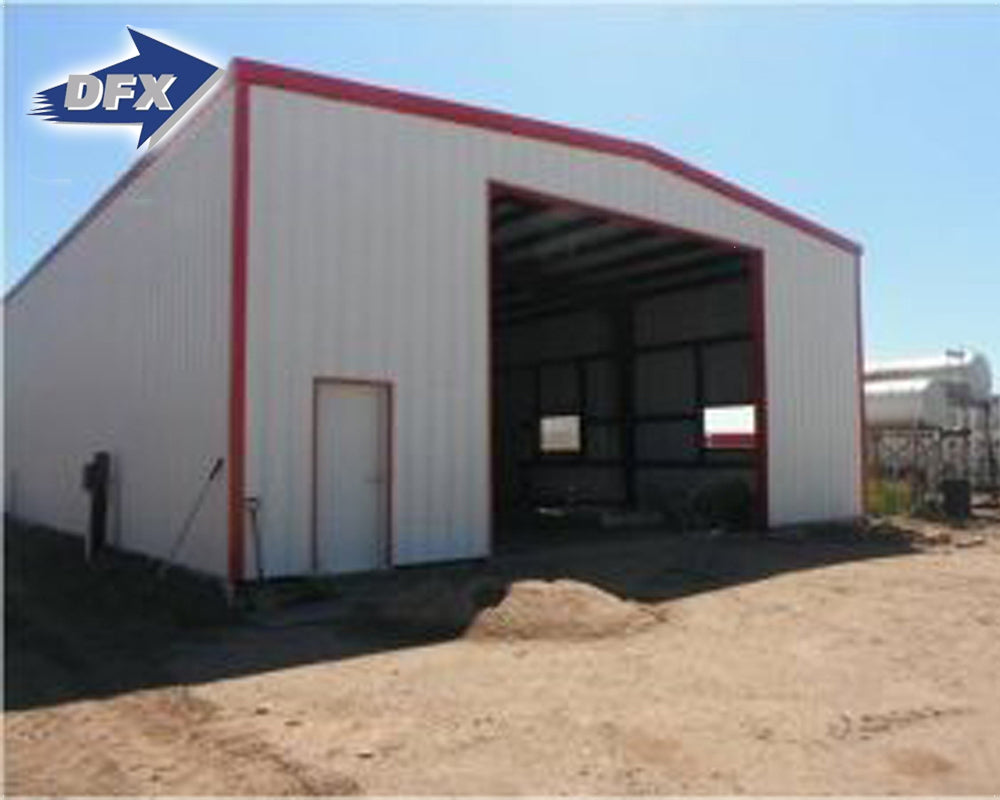

Low Cost Galvanized Prefab Light Steel Structure Canopy Carport Garage



Low Cost Galvanized Prefab Light Steel Structure Canopy Carport Garage Low Cost Galvanized Prefab Light Steel Structure Canopy Carport Garage

Successful Project



1. Some main oversea projects we undertook in the last couple months

Industrial factory (13000M2) ---Peru

Warehouse (14000M2)----India

Workshop (12000M2)----Brazil

Warehouse (3600M2)---France

Vegetable market (2500M2)----Mauritius

Pig shed (3500M2)---Australia

Chicken shed (2800M2)---Philippines

Aircraft hangar (1300M2)-----Maldives

Warehouse (900M2)----Russia

Prefabricated house (70M2)----800sets---Angola

Container house (20')----60 sets South Africa



2. Transaction history

Low Cost Galvanized Prefab Light Steel Structure Canopy Carport Garage Low Cost Galvanized Prefab Light Steel Structure Canopy Carport Garage

Company Information
Low Cost Galvanized Prefab Light Steel Structure Canopy Carport Garage

ABOUT US

Qingdao Director Steel Structure Co., Ltd. is a China based manufacturer of steel structure building, prefabricated house and related steel products.

Factory established in 1997

Area of the factory: 40000 square meter

Workshop area: 20000 square meter

Production lines:

5 lines for H section steel

3 lines for steel purlin

3 lines for corrugated color steel

3 lines for sandwich panel

Low Cost Galvanized Prefab Light Steel Structure Canopy Carport Garage

Low Cost Galvanized Prefab Light Steel Structure Canopy Carport Garage

Low cost galvanized prefab light steel structure canopy/carport/garage

FAQ
Q

You are manufacture factory or trading company?

A

We are manufacture factory. And you are welcomed to visit us for inspection. The quality control flow will show you ourprofessional. Also you will enjoy the best quality and competitive price.

Q

Whats the quality assurance you provided and how do you control quality ?

A

Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc. SGS, BV and other testing are available for us. We could deal with you by Trade Assurance via Alibaba.

Q

Can you offer designing service?

A

Yes, we have more than 10 design engineers. We could design full solution drawings as per your requirments. They use software: Auto CAD,PKPM, MTS, 3D3S, Tarch, Tekla Structures(Xsteel)V12.0.etc.

Low Cost Galvanized Prefab Light Steel Structure Canopy Carport Garage

Q

Do you offer guiding installation on site overseas?

A

Yes, usually we will send you the detailed installation drawing, if you need, we can provide the service of installation, supervision and training by extra. We can send our professional technical engineer to supervise installation on site overseas.



For more detailed information or quotation, welcome to contact us!
