LJZ2-450X3700 aluminum window door double mitre saw fabrication machine on China WDMA

Name:     aluminum window door double mitre saw fabrication machine Model:   LJZ2-450*3700 Function: LJZ2-450*3700 is the aluminium door and window making machine and main double mitre saw for aluminum. The aluminum double mitre saw is used for aluminum and PVC profile cutting processing adjusting to 90°~45°and cutting the mid-frame....
$4,996.00
$4,000.00

China Windows and Doors Manufacturers Association

Name:     aluminum window door double mitre saw fabrication machine

Model:   LJZ2-450*3700

Function:

  • LJZ2-450*3700 is the aluminium door and window making machine and main double mitre saw for aluminum.

  • The aluminum double mitre saw is used for aluminum and PVC profile cutting processing adjusting to 90°~45°and cutting the mid-frame.
  • France Schneider Electric Part and SMC/Easun Pneumatic Part are used on this aluminum double mitre saw.
  • Suit for batch production, continuous and multi-various production.

  • It features wide cutting range, high productivity.

Technical Parameters
Series No. Techncial Item Technical Parameters
1 Power Supply 380V 50Hz 3.55Kw
2 Air Pressure 0.5-0.8Mpa
3 Saw Blade Specification 450*30mm
4 Saw Blade Rotation Speed 3087RPM
5 Cutting Scope 580-3700mm
6 Cutting Angle -45 degree/ 45 degree/ 90 degree
7 Overall Dimension 4500*1100*1400mm
8 Total Weight 1200Kg

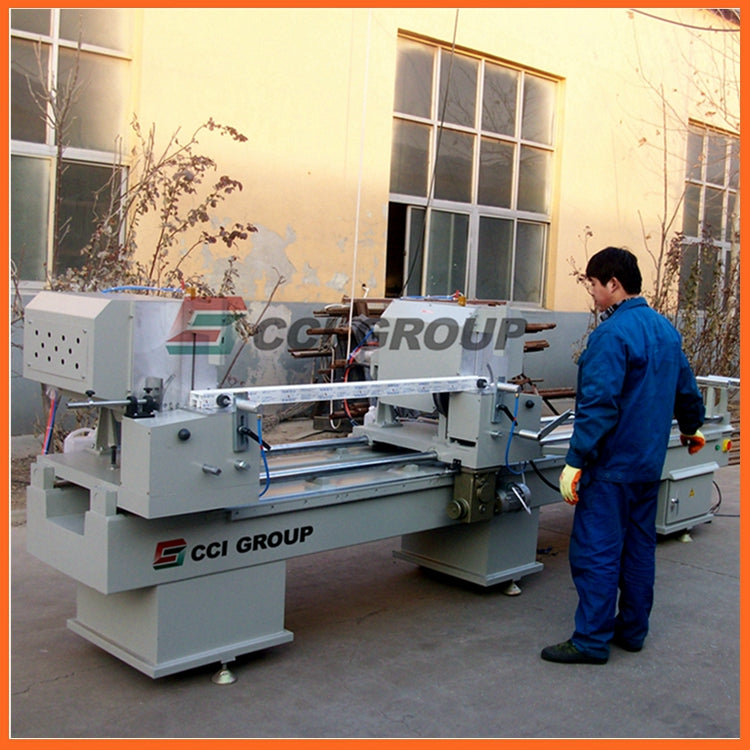

aluminum window door double mitre saw fabrication machine Picture

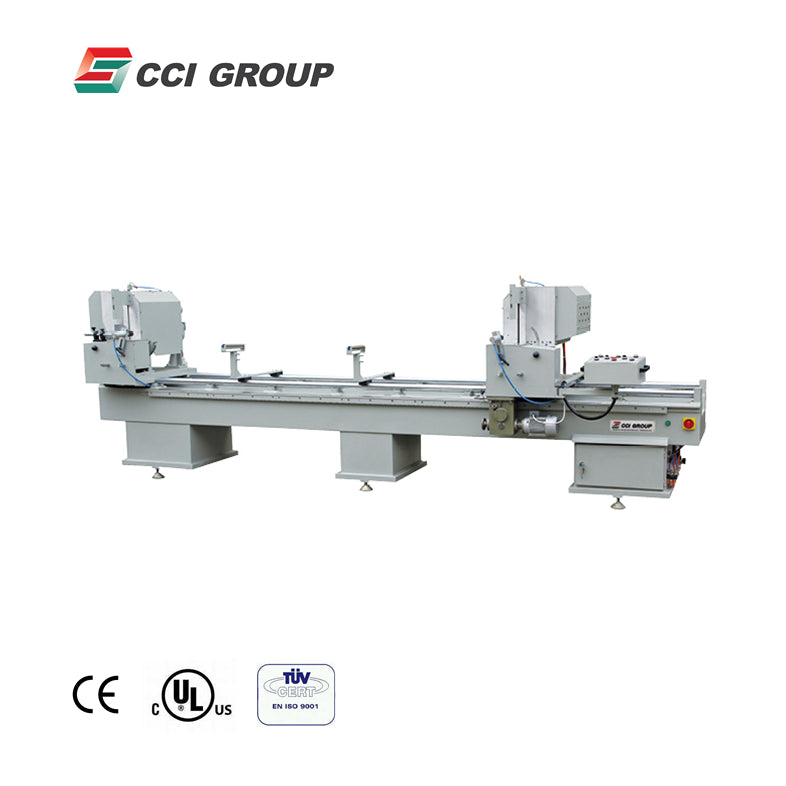

LJZ2-450X3700 aluminum window door double mitre saw fabrication machine
Product Details

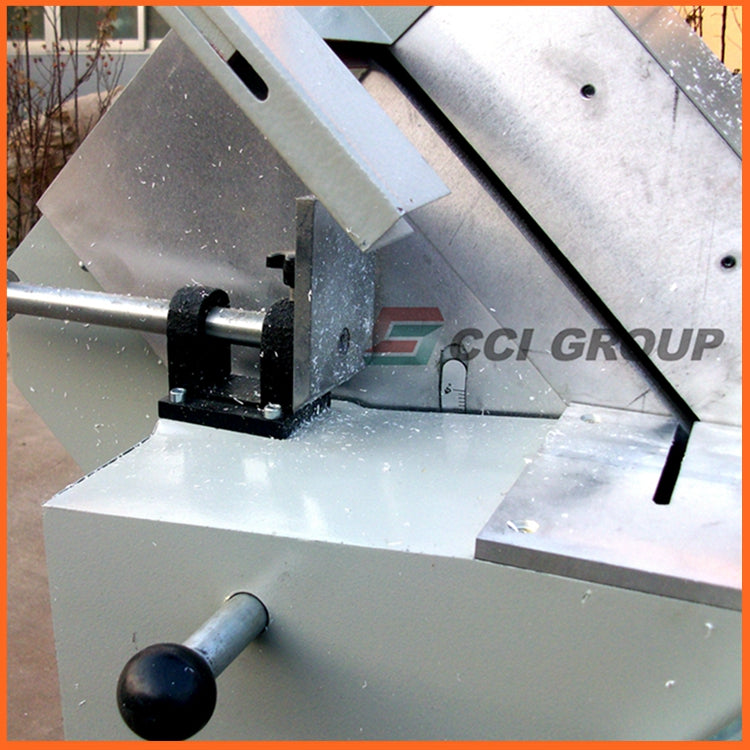

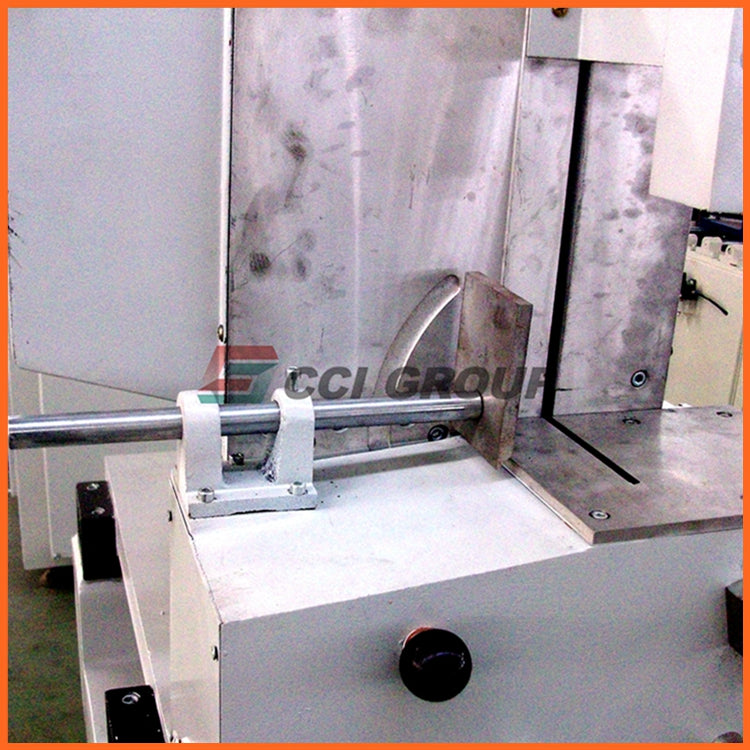

aluminum window door double mitre saw fabrication machine workbench

LJZ2-450X3700 aluminum window door double mitre saw fabrication machine LJZ2-450X3700 aluminum window door double mitre saw fabrication machine

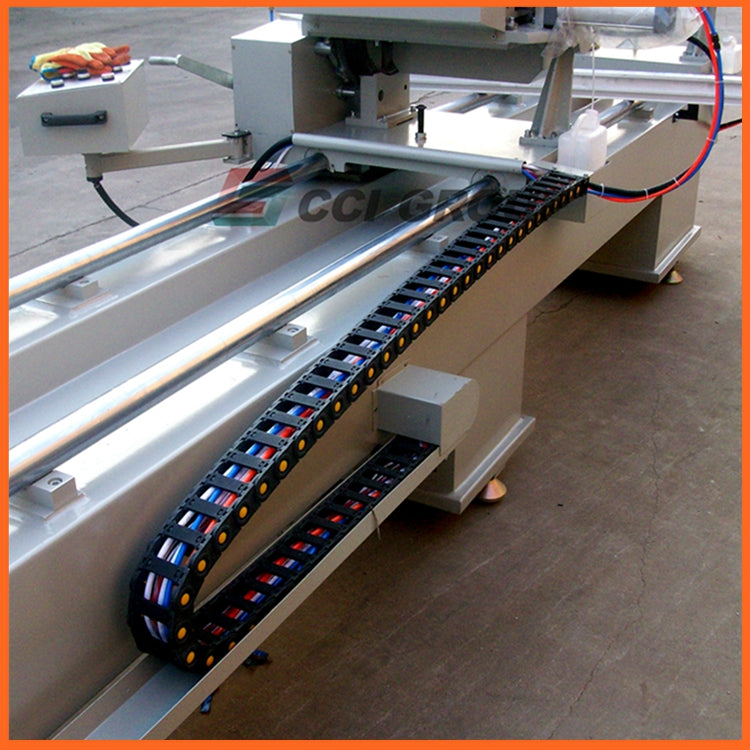

aluminum window door double mitre saw fabrication machine-Schneider Electric Parts and CE wire connection

LJZ2-450X3700 aluminum window door double mitre saw fabrication machine

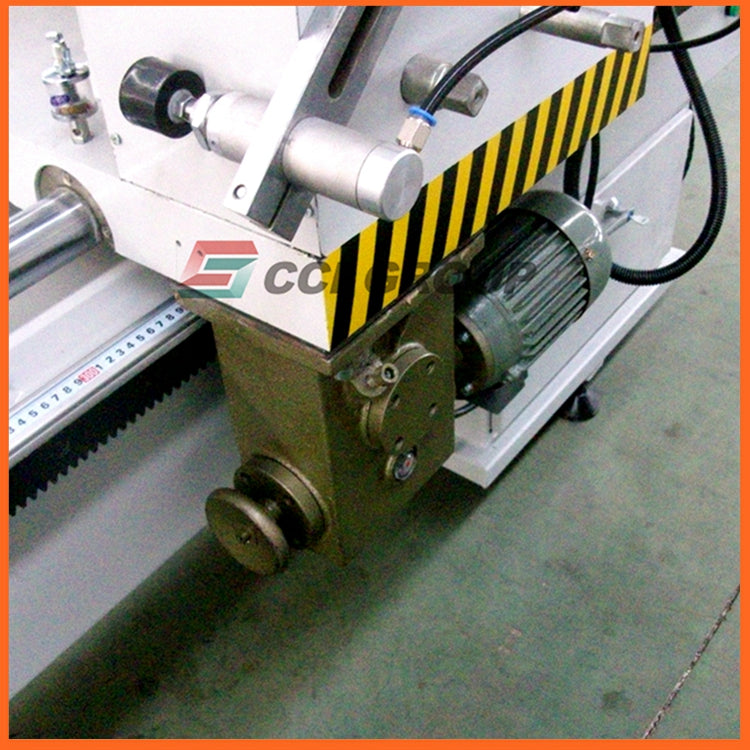

aluminum window door double mitre saw fabrication machine-SMC/ Easun Pneumatic Parts

LJZ2-450X3700 aluminum window door double mitre saw fabrication machine

LJZ2-450X3700 aluminum window door double mitre saw fabrication machine

Packaging & Shipping
The package and shipping is our follow-up item of our factory marketing work and prelude item of our factory after service work.

+ Our factory pay more attention to our machine package and shipping.

+ Package type: Wooden Case/Wooden Pallet/ Carton.We do not suggest using the plastic cover only on our machines.

+ Shipping type: Sea transportation and Express transportation. We do not suggest using the land transportation.

LJZ2-450X3700 aluminum window door double mitre saw fabrication machine

Our Services

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

We have our own spare parts warehouse for window door machines and insulating glass machines.

We can reply for every customers within 24 hours.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.

CCI always looking for long term cooperaion, not one time deal.

LJZ2-450X3700 aluminum window door double mitre saw fabrication machine

Company Information
As a path breaker in windoor machines of China, CCI Group creates and develops the brand-new high quality window machines and Insulating Glass Machines with 23 years hard working. Our aim is the best windoor machines and insulating glass machines manufuctuer from China.

Attaching much importance to quality and taking management and technology development as the impetus, CCI Group tacks the culture of operation excellence, and has obtained ISO9001-2000 edition and CE Qualification successively.

So far CCI Group has more than thirty offices around China, and has built many a foreign office, such as in Canada, Kazakstan, Vietnam and etc.

Now CCI Group has become the all-around equipments manufacturer, producing more than one hundred products, which includes  upvc window making machine, Aluminum Window Door Processing Machines , Aluminum Curtain Wall Processing Machine and Insulating Glass Processing Machines.

We would like to expand our cordial cooperation with you for better future.



CCI Factory CE Certificate on year 2002

+ Most of pvc window making machines were passed  CE Certificate;

+ Most of insulating glass making machines were passed CE Certificate;

+ Several aluminium window making machines were passed CE Certificate.

LJZ2-450X3700 aluminum window door double mitre saw fabrication machine

CCI Factory Exhibition Photo

+ As you known, our factory has several oversea offices all over the world. Normally, our marketing manager and distributor join the local market exhibition by ourselves.

+ If you have chance to be together with us on exhibition, welcome to contact us our marketing manager face to face if you have any demand about machine or after service for machines.

LJZ2-450X3700 aluminum window door double mitre saw fabrication machine

Factory picture

CCI Factory details:

+ Our factory has two large fabricating factories;

+ Our factory has our own office building and staff apartment;

+ Our factory has more than 50 fabricating workers which have more than 10 years window door and insulating glass fabricating experience;

+ Any more details, welcome to contact us our customer service department at any time on line.

LJZ2-450X3700 aluminum window door double mitre saw fabrication machine

Customer Show

CCI Factory Customer Details:

+ Our factory export our machines to more than 57 countries and areas.

+ Here we make a simple introduction about our client countries: USA, Canada, Brazil, Russia, Ukraine, Turkey, India, Pakistan, Vietnam, Philippines, Cambodia, Tunis,  Nigeria  and so on.

+ Hope you can be the next client in near future.

LJZ2-450X3700 aluminum window door double mitre saw fabrication machine

Contact Us

LJZ2-450X3700 aluminum window door double mitre saw fabrication machine + If you are window fabricator, looking for aluminum window door double mitre saw fabrication machine,

+ If you have interest to set up window production line as your new business,

Or you have any questions about window machine,

All the parts of machine can do some changes to meet your requirements.Any details information or help you want, please contact with me.

  • WhatsApp: 0086-13589148572
  • Skype: freeman2599
  • WeChat: 13589148572

CCI team is here, ready for support. press "send", let's start !
