China WDMA Popular Foreign House Design Price Of Aluminium 3 Panel Double Glass Sliding Patio Door Philippines Price And Design
American widespread frameless glass frosted internal bunnings double top hung sliding patio doors for sale on China WDMA
Factory price triple track modern design philippines patio living room double glazed temper glass aluminum sliding door on China WDMA
Interior Office Door with frameless folding glass window High quality aluminium profile for sliding frameless glass window on China WDMA
Finzone09 is used for most kinds of balcony shape, specially for flat balcony.
The upper track is 3mm thickness and importance of the point is 5mm thick; the width of glass profile is 29mm and the height is 41mm, the importance of the point is 2.5mm thick.
Use 8mm tempered glass and 5+4 laminated glass.
The max width for glass panel is 650mm and the height is 2300mm.

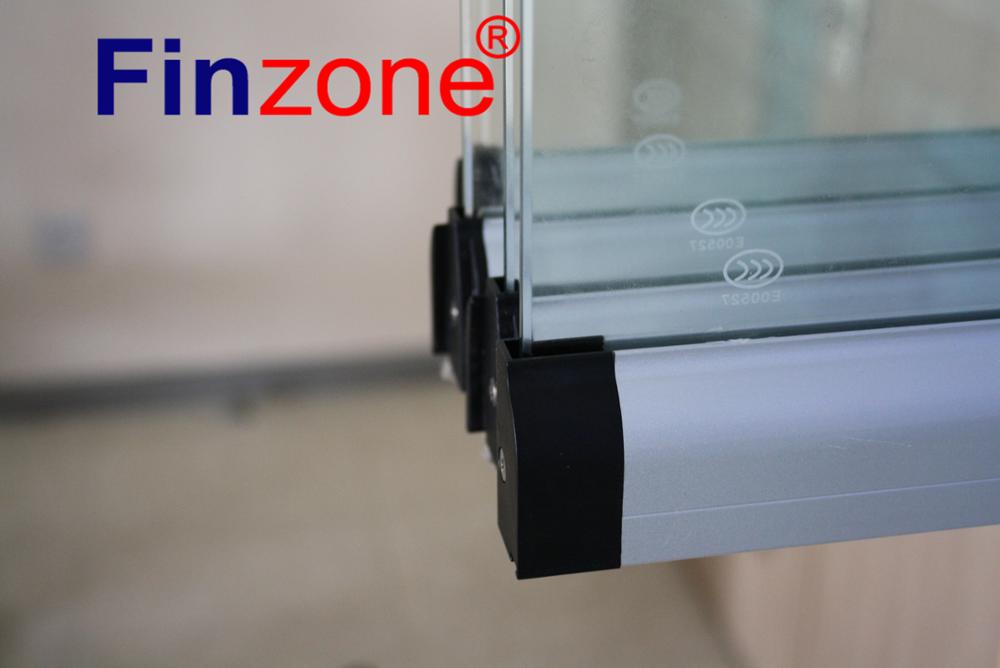

Apply nylon protection cap on glass profiles to avoid hurting. The protection is laddy-like and the sealing is better for glass panels.

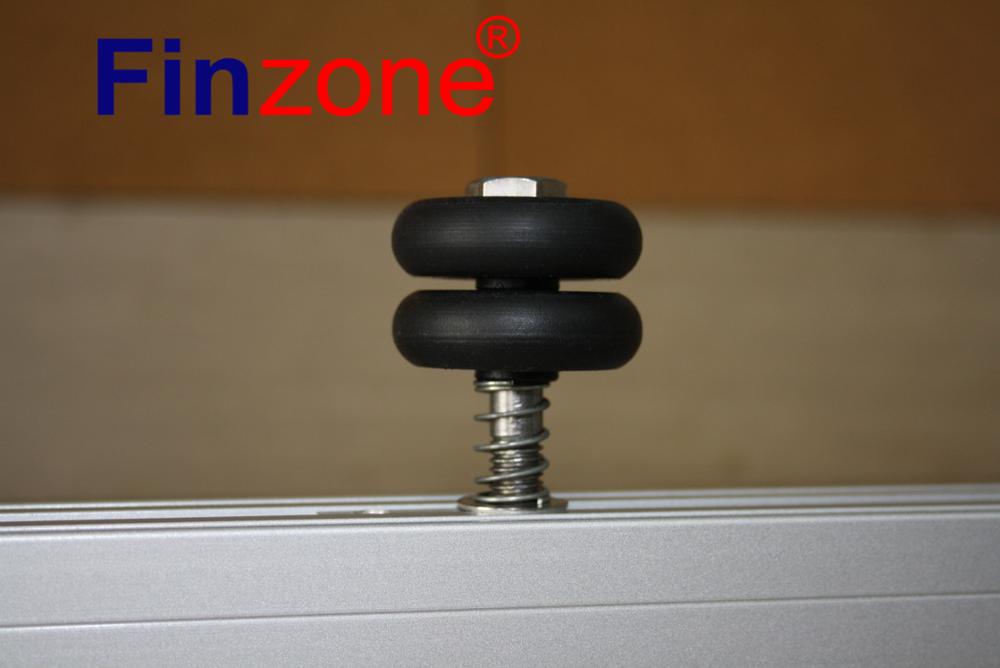

Use big bearing wheels and slide smoothly. The width of one bearing wheel is 36mm and the height is 11mm.

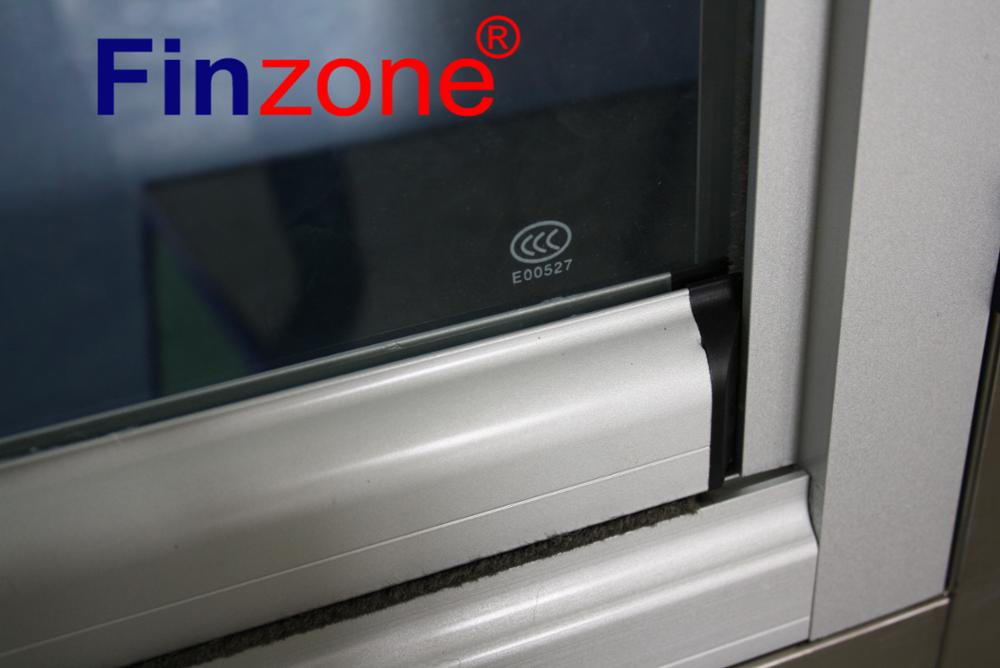

There is no gap between track profiles and glass profiles. There is no gap between the first and last glass panels with side profiles.
|Hinge axles:||Use SS304 for hinge axles so that can stand big weight and avoid the glass panels falling down.|
|No rivets:||Apply specially glue to connect glass and glass profile, there is no any rivets and holes in glass profile.|
Use SS304 to connect the track profiles to ensure the stablity of connection.
Used Aluminum alloy 6063T5 material for profiles, the surfaces are treated with static electroplating spray.
Finzone is professional in the balcony glazing system over the last 11 years. As the manufacturer and exporter of frameless balcony glazing system, we have many clients in more than 30 countries around the world, especially in Europe such as Finland, Sweden, Spain, Poland, etc. We can provide material to wholesale customers and also assembled products to retail and project customers. We have more than 5 different systems can meet different demands on balcony, terrace, patio, sunroom, even partition wall.
We have both wholesale customers and retail customers. We will offer raw material and assembled products to customers with different demands and we will provide all the assembly and installation manuals to help customers finish the assembly and installation. From manufacturing to installation, our service will always be with you.
