Intelligent fast pvc door/high quality high speed rolling shutters door on China WDMA

Product Description 1. Master Well High Speed PVC Roll-Up Doors are made from durable polyester PVC sheet with visible panels to provide a view of areas on the opposite side of the doors.2. It has advantages of reliability, practicability and easy operation. 3. it can be configured for a wide...
color :
Blue
Dark Grey
Orange
Red
White
Yellow
$1,199.00

China Windows and Doors Manufacturers Association

Product Description

1. Master Well High Speed PVC Roll-Up Doors are made from durable polyester PVC sheet with visible panels to provide a view of areas on the opposite side of the doors.
2. It has advantages of reliability, practicability and easy operation.

3. it can be configured for a wide range of opening and closing speed, allowing you to precisely set the best speed for your application.

4. Widely used in food factory, electronic workshop, warehouse, clean room, warehouse, etc.

Product Name
High Speed Rolling PVC Door
Maximum Door Size
W6500mm*H6000mm
Opening speed
0.8 - 2.0 M/S
Closing speed
0.6 - 1.0 M/S

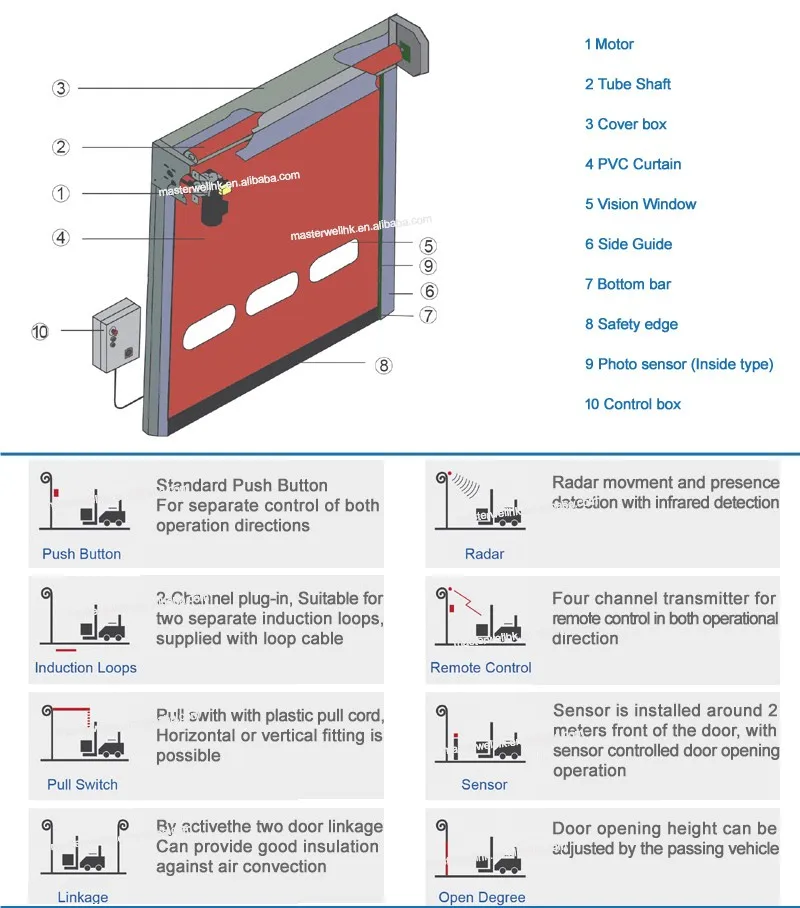

Operation way
Remote control, Access Control, Magnetic loop,Radar, Pull Rope Switch
Emergency Operation
Available with manual crank
Curtain Thickness
0.8 / 1.0 / 1.2 / 1.5mm

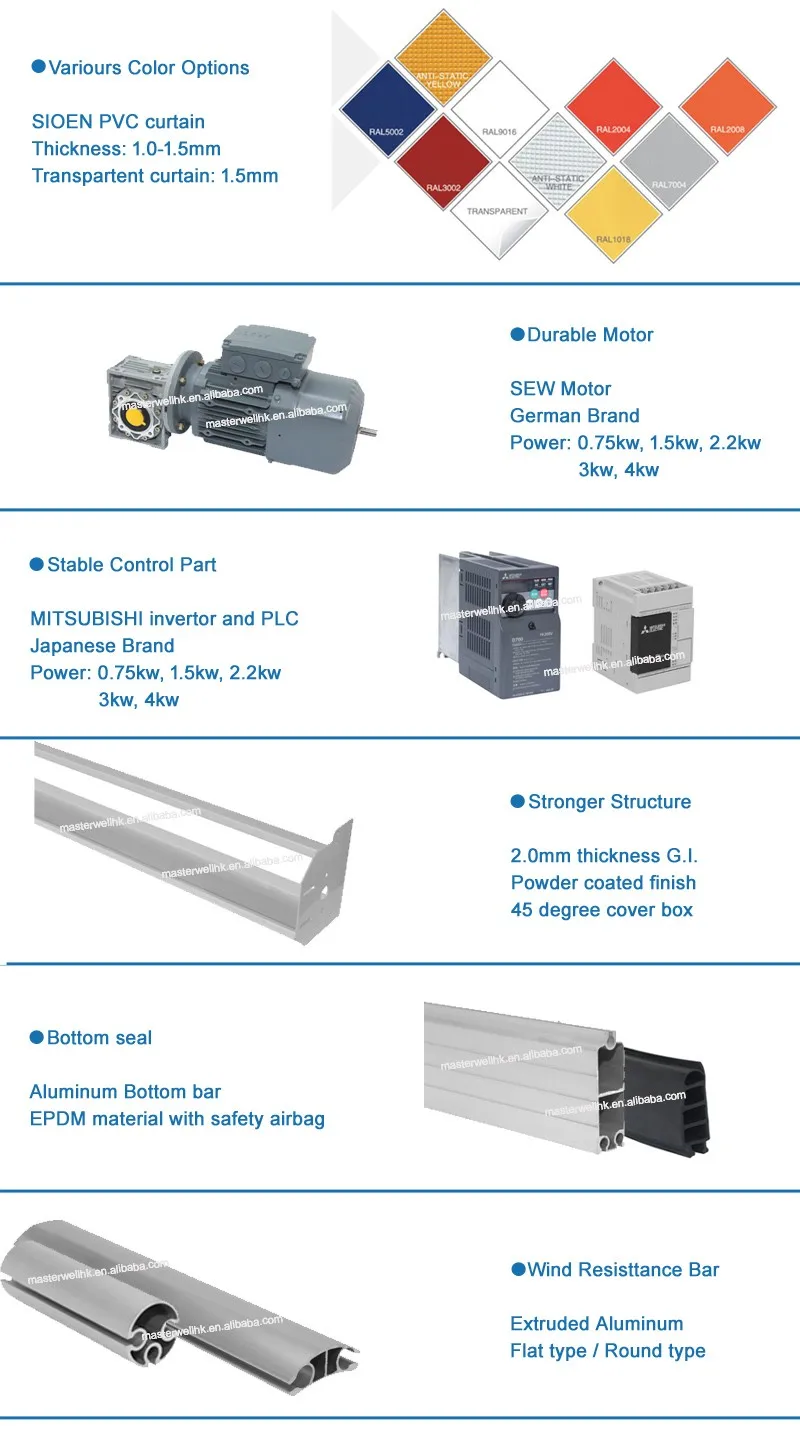

Hardware Material
Frame and Cover Box - Galvanized steel / 304 stainless steel
Track Guide - Galvanized Steel / 304 Stainless Steel / Aluminum extrusion
Wind Resistance Bar - Aluminum Extrusion
Curtain - Plastic PVC Fabric
Vision panel - 1.5mm thick transparent PVC
Motor
SNMA, SEW, SIEMENS,SEJ,SERVO
Motor Power
0.75-5.5KW
Input Voltage
220V 50HZ/380V 50HZ
PLC Brand
SIEMENS / MITSUBISHI / OMRON /KEWEI
Inverter / AC Driver
MITSUBISHI,SIEMENS,SHIHLIN
Control Box Finish
Powder coated steel /304SS
Safety Performance
Infrared beam protection system
Tolerance Frequency
2 times/min, Inverter opening 2500-3000 times/day
Packing & Delivery

1.Small quantity: Carton + Winding film + Wooden box
2.The full container quantity (20'GP/40'GP/40'HQ): Carton + Winding film


Related Products

Zipper Self Repairing Hi Speed PVC Door

100% Response Rate

Large industrial doors used garage doors

99.8% Response Rate

High Speed Belt Stacking PVC Door

97% Response Rate

Our Company

Relying on our excellent business performance and R&D, we have exported to more than 120 countries and regions. We are now growing up to about 100 people work team, including International Sales Department, Domestic Sales Department, Purchase Department, Financial Department, Human Resource Department and Research and Development. We are always ready to provide the professinal service for you.

Our Certifications
Our Show
FAQ

Q1: What is your MOQ?
A: No min order for high speed door. We also suggest wooden cases package for protection during shipment.

Q2: What is the max available size of the doors?
A: The max length can be 6.5M. The max width is 6M, adjustable.

Q3: Can you do the full set products according to my project drawing?
A: Yes, our engineers will check your engineering drawings to ensure the accuracy of each different accessory and quantity.

Q4: Can I get a sample of high speed door for quality check?
A: Sample is available.

Q5: How can I get a price of needed high speed door?
A: Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements.

Q6: What kind of payment terms would you accept?
A: We usually accept T/T, L/C, Western Union, etc. If you prefer other payments terms, please feel free to discuss with us.

Q7: We want to be your agent of our area. How to apply for this?
A: Please send your idea and your profile to any e-mails of us. Let's cooperate.

Q8: How to install your product, is it difficult?
A: Easy to install, just screw, no welding.If you need, installation video can be supplied. And you can contact our salesman if you have any question. Of course we can offer on-site installation guide services if you need.

Q9: Do you produce other products? Do you also produce accessories?
A: Yes, we also produce Garage door, Glass aluminum sectional door, Industrial door, Rolling shutter door, Dock leveller, Dock seal, Motor&Gate openers. We produce parts by ourselves in order to control quality and cost.

Q10: Could you send me the price list?
A: Yes, the product is not standard, the size is customized according to your requirements, I can provide a regular size quotation.
