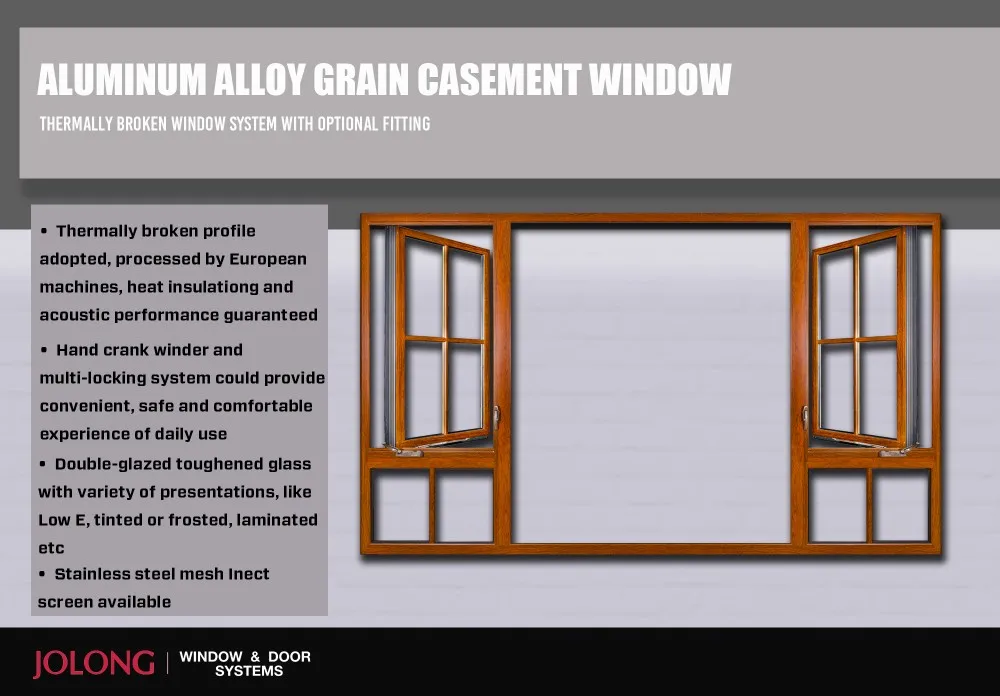

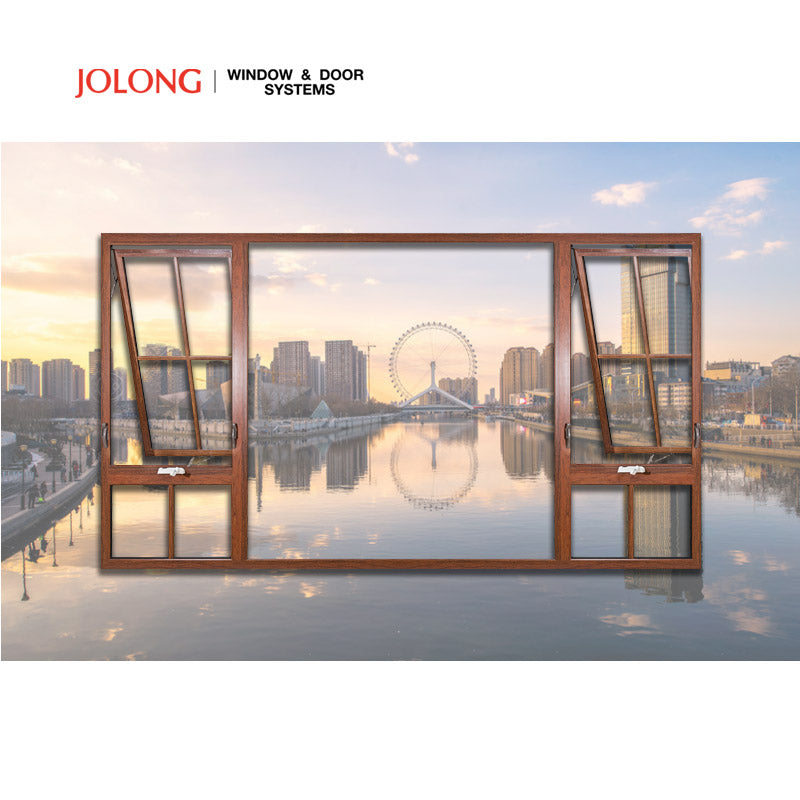

Grain awning thermal break aluminium window casement window AS2047 OEM

DESCRIPTION Profile 1.High quality aluminum alloy profiles, thickness 1.2 mm 2.Excellent quality thermal break aluminum alloy profiles, thickness 1.4-2.2mm Glass Customized glass available, standard issues as follow : 1.Single tempered glass: 5mm,6mm,8mm,10mm,12mm 2.Double tempered glass: 5/6+12A+5/6mm, 5/6+22A+5/6mm, 3.Triple tempered glass: 5+12A+5+12A+5mm 4.Special: Laminated glass, Low-E glass , Coated glass, Frosted...

Effective Price :

$120.00

Casement Windows

Quantity :

Subtotal : $120.00

Brand : China Windows and Doors Manufacturers Association

Product Type :

DESCRIPTION

Profile	1.High quality aluminum alloy profiles, thickness 1.2 mm 2.Excellent quality thermal break aluminum alloy profiles, thickness 1.4-2.2mm
Glass	Customized glass available, standard issues as follow : 1.Single tempered glass: 5mm,6mm,8mm,10mm,12mm 2.Double tempered glass: 5/6+12A+5/6mm, 5/6+22A+5/6mm, 3.Triple tempered glass: 5+12A+5+12A+5mm 4.Special: Laminated glass, Low-E glass , Coated glass, Frosted glass ,
Fitting	China and Germany's top brands
Screen	304 Stainless steel security mesh and heavy duty available
Finish	1.Powder coating 2.Anodizing 3.Wood grain color 4.Fluorine carbon coating
Colors	Black/ Dark grey / Light grey / Pearl white / Beige / Wood grain / Anodized / Brown
Standard	Comply with AS2047 & AS1288
Guarantee	20 Years Quality Guarantee for the Aluminum Window&Door Frame; 3-5 Years Quality Guarantee for the Hardware Fitting

PRODUCT

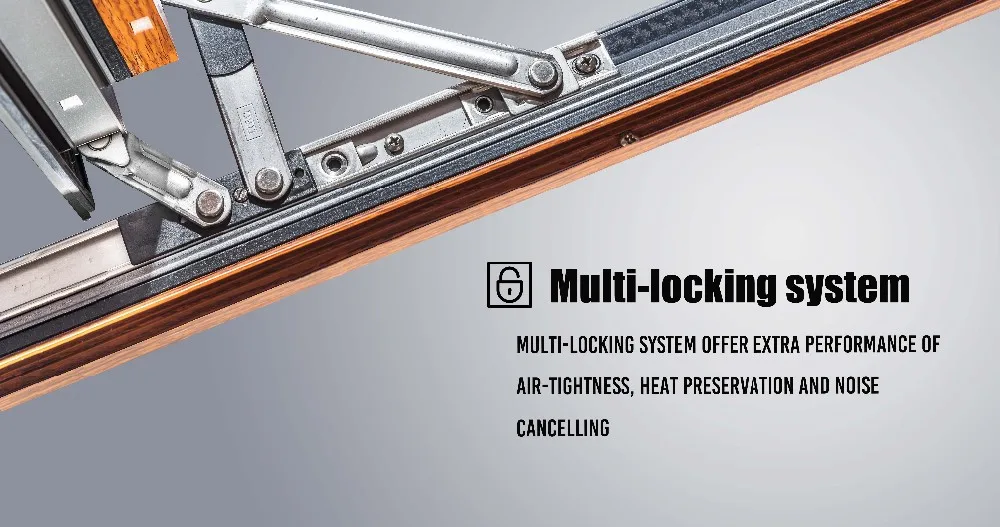

Multi-locking system

Multi-locking system offer extra performance of air-tightness, heat preservation and noise cancelling

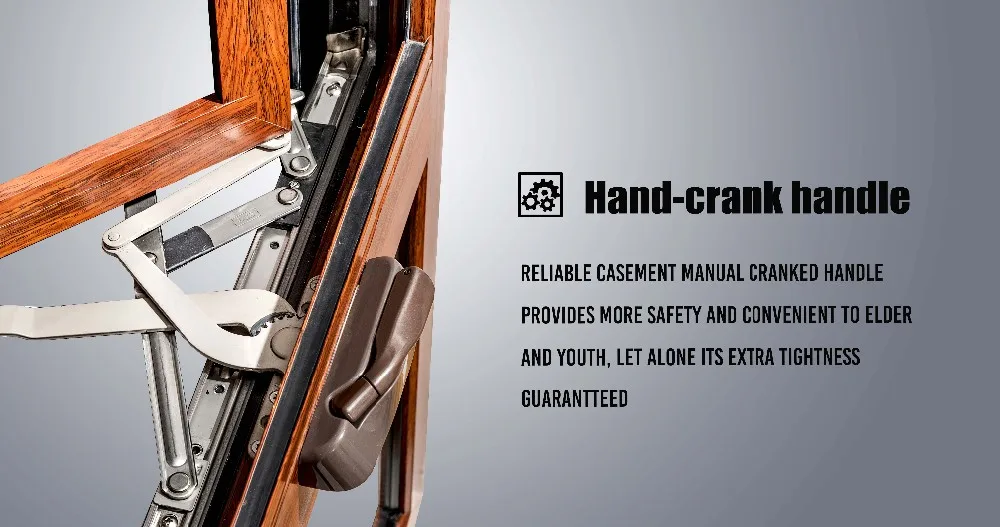

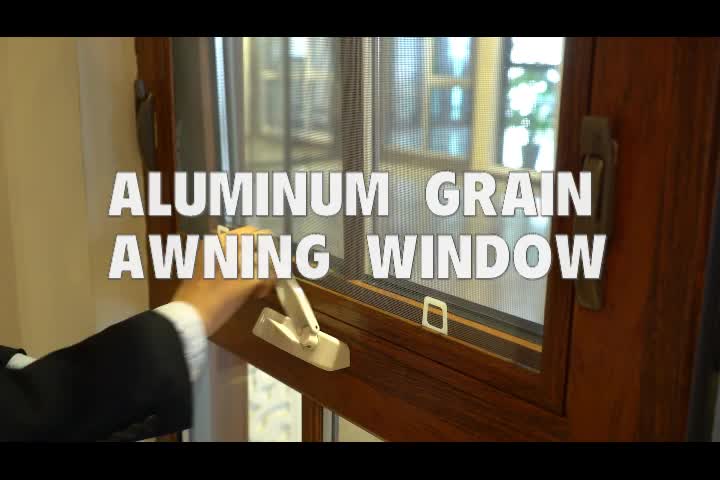

Hand-crank handle

Reliable manual cranked handle provides more safety and convenient to elder and youth, let alone its extra tightness guarantteed

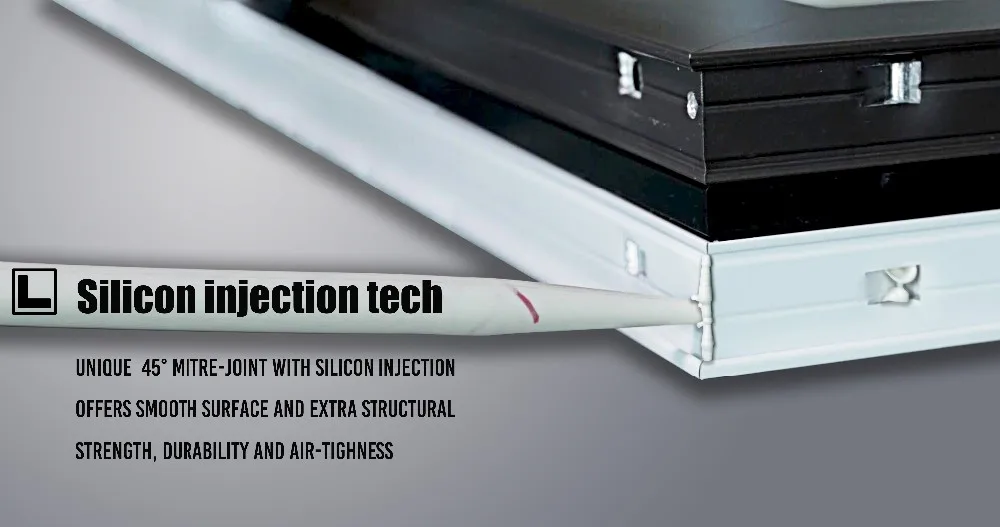

Silicon injection tech

Unique 45° mitre- joint with silicon injection offers smooth surface and extra structural strength, durability and air-tighness

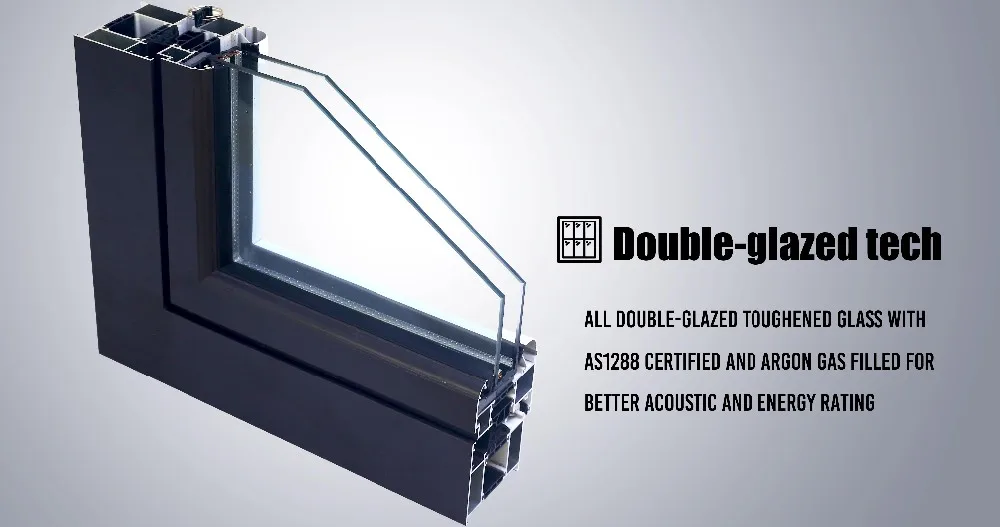

Double-glazed tech

All double-glazed toughened glass with AS1288 certified and argon gas filled for better acoustic and energy rating

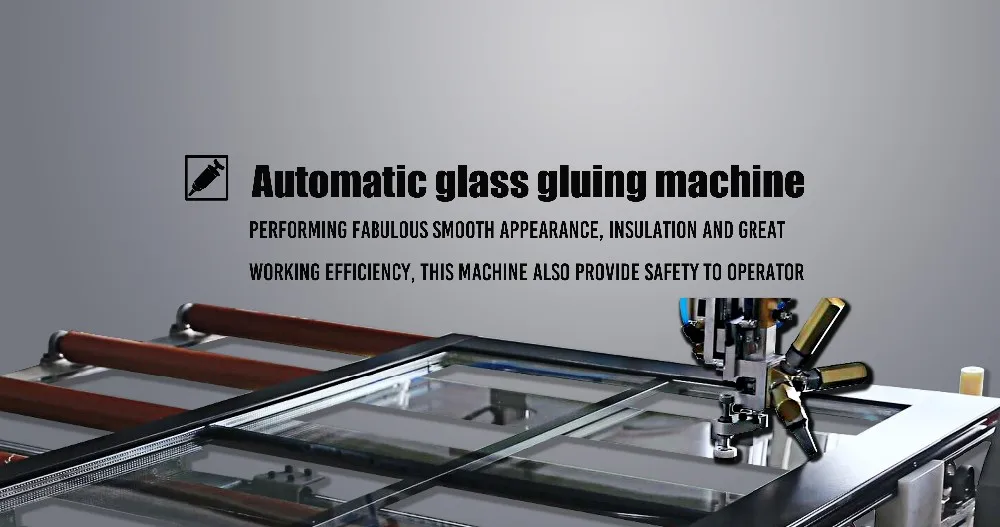

Automatic glass gluing machine

Performing fabulous smooth appearance, insulation and great working efficiency, this machine also provide safety for operator

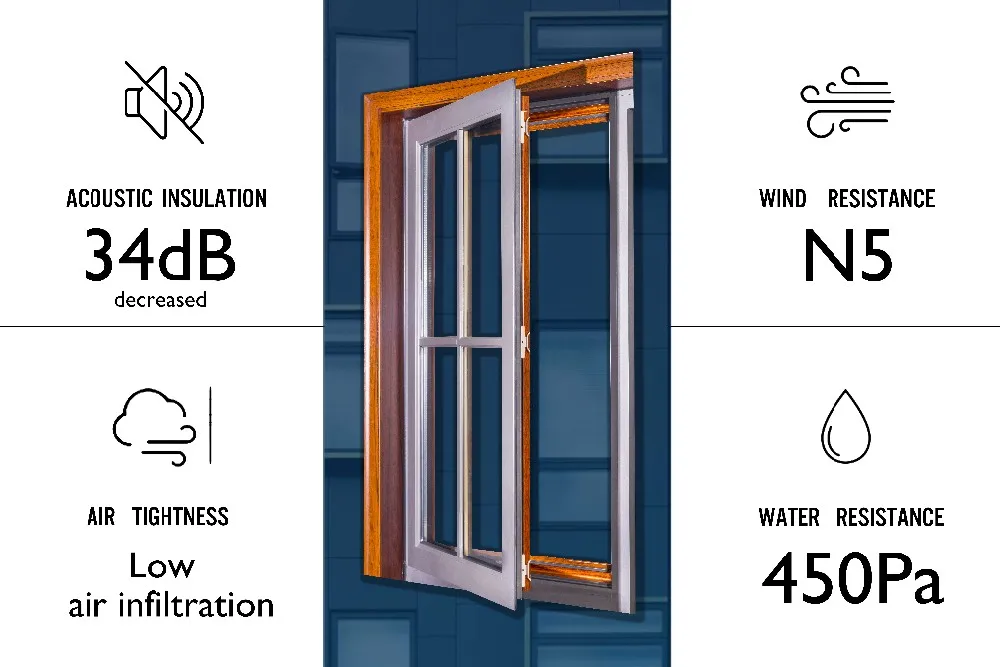

Air Tightness

Low

Wind Resistance

450Pa

Water Resistance

FITTING

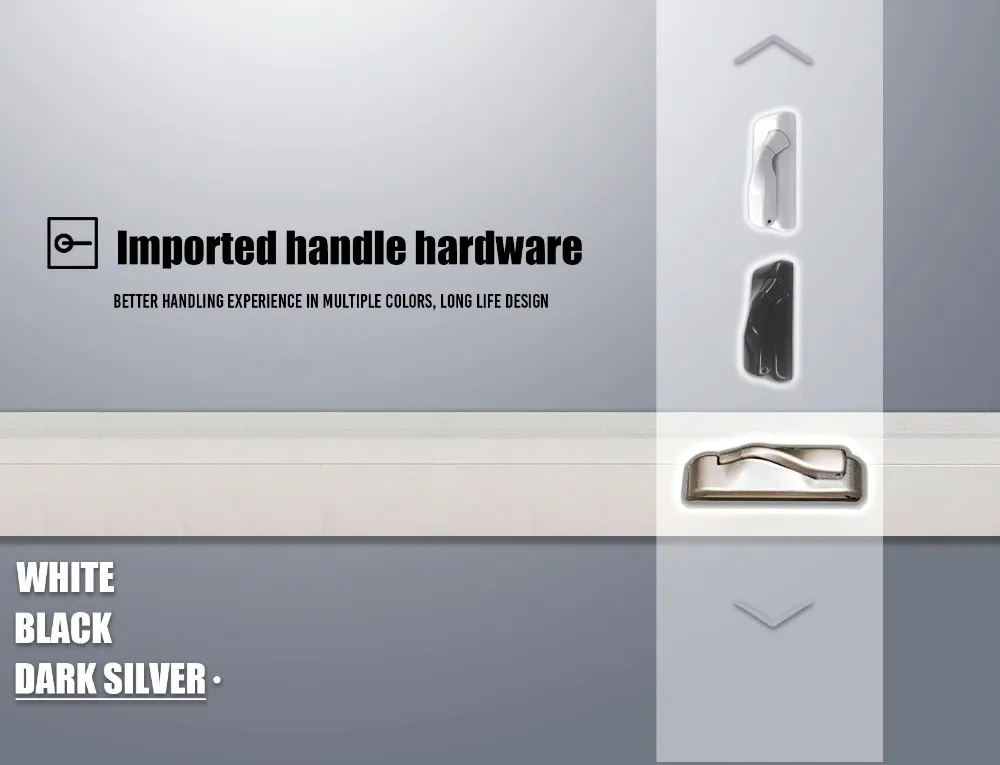

Imported handle hardware, better handling experience in multiple colors, long life design

COMPANY

Jolong is the first company in Qingdao to have a fully automatic production line for door and window processing,
This German and Italian Spanish CNC production line cost millions CNY, in order to achieve high precision and high efficiency of product processing. Only few workers are capable of output 350 thousands SQM window and door system annually

Emmegi, PRECISION TS2

Twin-head cutting-off machine with 3 controlled axes with automatic movement of the mobile head and electronic management of all 45 ° (internal) to 15° (external) angles. Blades feed driven by hydro-pneumatic cylinders. 550 mm-blade. Available with a useful cut of 5 m or 6 m in length.

Emmegi, PHANTOMATIC X4

Machining centre CNC with 4 controlled axes, used for the working of bars or aluminium, PVC, light alloys in general and steel pieces up to 2 mm. Automatically positioned clamp unit. It has a 4 or an 8 place (optional) tools storage, with the possibility of hosting 2 angular units and one milling disc, to perform machining on the 5 sides of the piece.

Four Point Welding Machine and Digital Station

Multi size of profiles welding available
Three-axis ball screw drive with high precision.
Imported CNC system, servo drive and servo motor are used to ensure machine reliability.
Based on the industrial computer platform, the program is specially developed according to the door and window industry; the full Chinese operation interface is simple and intuitive; it provides a reserved interface for the enterprise to realize information management.
