frameless bi fold window used as balcony glass system on China WDMA

Product Details Popular system: Finzone09 is used for most kinds of balcony shape, specially for flat balcony. Stronger profiles: The upper track is 3mm thickness and importance of the point is 5mm thick; the width of glass profile is 29mm and the height is 41mm, the importance of the point is...
Type :
$50.00

China Windows and Doors Manufacturers Association

Product Details

frameless bi fold window used as balcony glass system

Popular system:

Finzone09 is used for most kinds of balcony shape, specially for flat balcony.

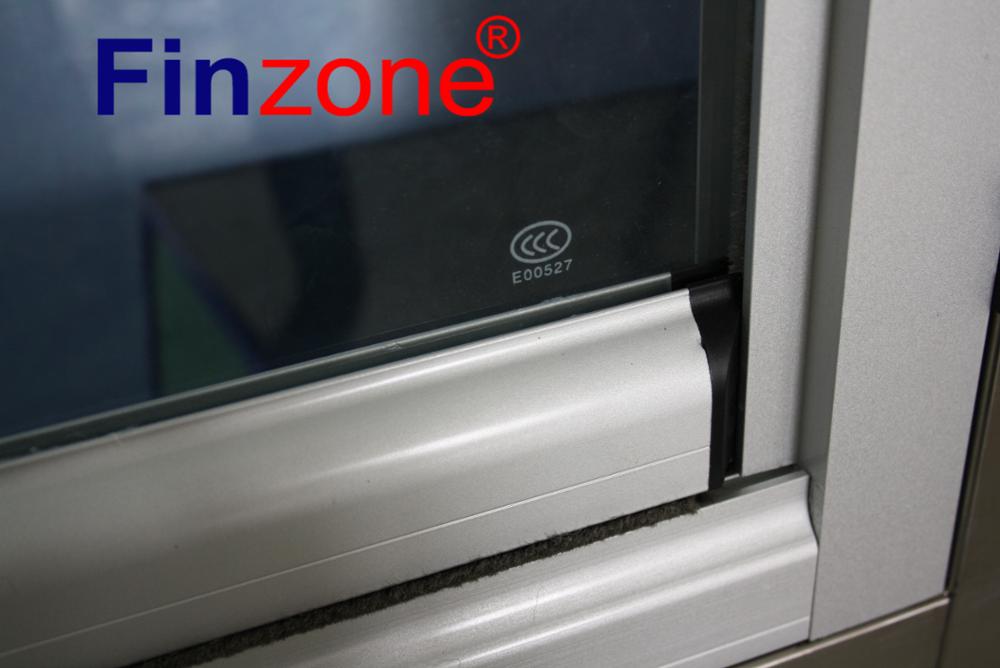

Stronger profiles:

The upper track is 3mm thickness and importance of the point is 5mm thick; the width of glass profile is 29mm and the height is 41mm, the importance of the point is 2.5mm thick.

Glass:

Use 8mm tempered glass and 5+4 laminated glass.

Big panels:

The max width for glass panel is 650mm and the height is 2300mm.

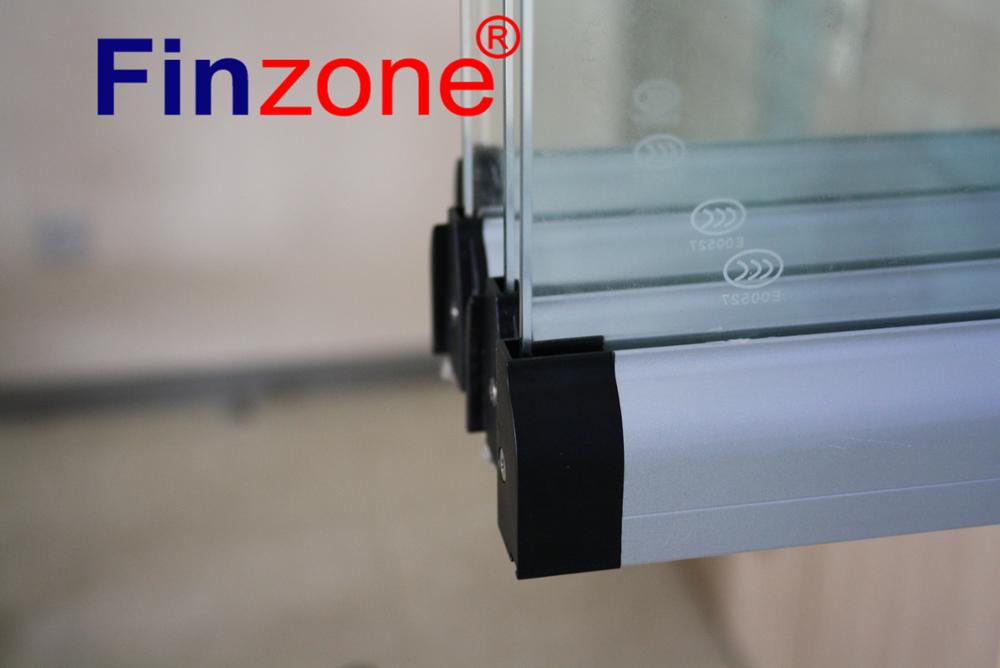

Protection cap:

Apply nylon protection cap on glass profiles to avoid hurting. The protection is laddy-like and the sealing is better for glass panels.

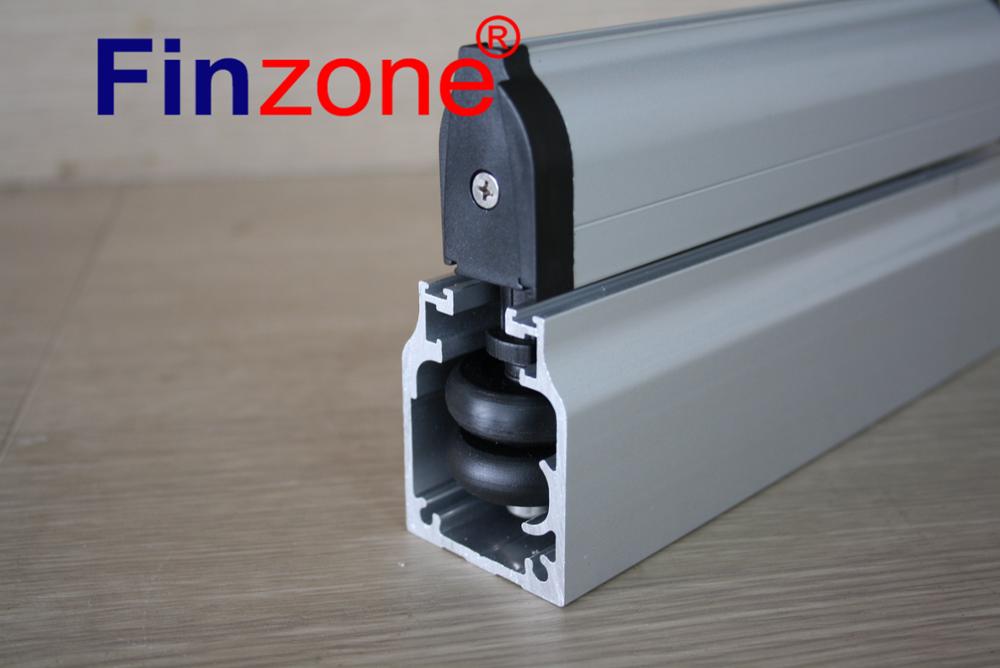

Better Rollers:

Use big bearing wheels and slide smoothly. The width of one bearing wheel is 36mm and the height is 11mm.

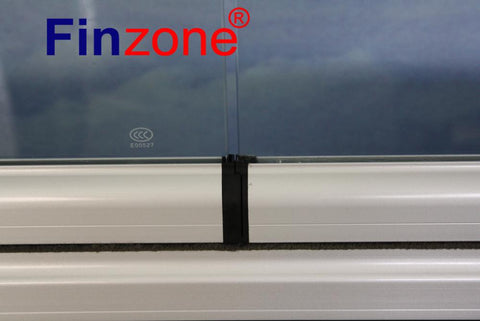

Best sealing:

There is no gap between track profiles and glass profiles. There is no gap between the first and last glass panels with side profiles.

Hinge axles: Use SS304 for hinge axles so that can stand big weight and avoid the glass panels falling down.
No rivets: Apply specially glue to connect glass and glass profile, there is no any rivets and holes in glass profile.
Connection hardware:

Use SS304 to connect the track profiles to ensure the stablity of connection.

Profile material:

Used Aluminum alloy 6063T5 material for profiles, the surfaces are treated with static electroplating spray.



frameless bi fold window used as balcony glass system

frameless window

Company introduction

frameless bi fold window used as balcony glass system

Finzone is professional in the frameless balcony glazing system over the last 11 years. As the manufacturer and exporter of frameless balcony glazing system, we have many clients in more than 30 countries around the world, especially in Europe such as Finland, Sweden, Spain, Poland, etc. We can provide material to wholesale customers and also assembled products to retail and project customers. We have more than 5 different systems can meet different demands on balcony, terrace, patio, sunroom, even partition wall.

frameless bi fold window used as balcony glass system frameless window

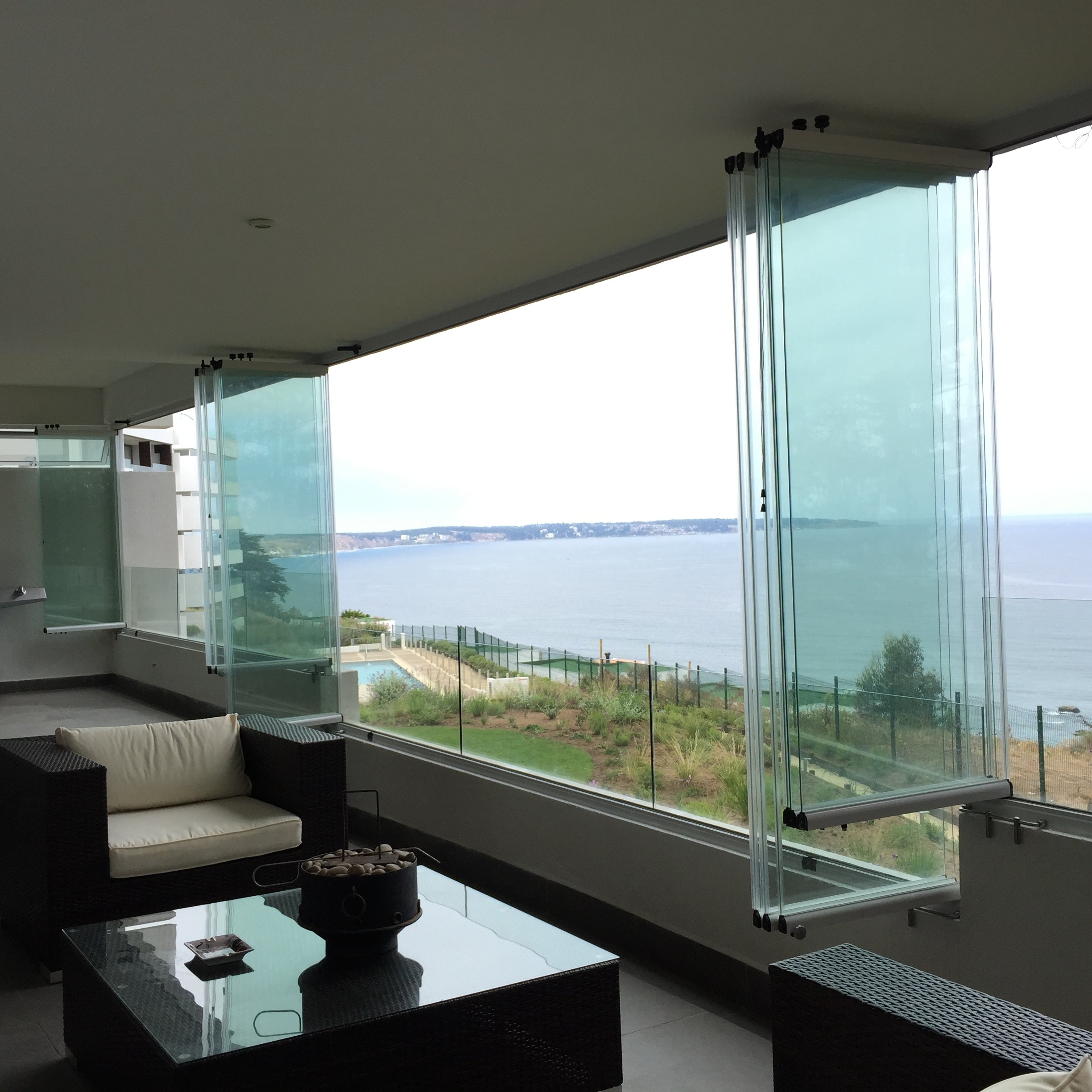

Show Case

frameless bi fold window used as balcony glass system frameless bi fold window used as balcony glass system frameless window

Factory introduction

frameless bi fold window used as balcony glass system frameless window

Our Exhibition

frameless bi fold window used as balcony glass system frameless window

Certifications

frameless bi fold window used as balcony glass system frameless window
