FastLink Different Lifting System Automatic Sliding Door on China WDMA

Product Description FastLink Different Lifting System Automatic Sliding Door The automatic garage door uses PU panels to provide good thermal insulation effect and high anti-wind performance to safeguard various occasions. High anti-wind pressure is safe for the building opening, with good sealing effects.   *The inside and outside panels are...
$4,000.00
$800.00

China Windows and Doors Manufacturers Association

Product Description

FastLink Different Lifting System Automatic Sliding Door

The automatic garage door uses PU panels to provide good thermal insulation effect and high anti-wind performance to safeguard various occasions. High anti-wind pressure is safe for the building opening, with good sealing effects.



*The inside and outside panels are made of color-coated steel or aluminum sheets by Shanghai Baosteel and the inside is made of PU foam material. The panels of 42mm in thickness are strong and durable with strong thermal insulation effect;

*The inside and outside door panels can be painted in various colors to match the color tones of the surrounding buildings;
*The sealing strips around the door panel can seal the gap between the opening and the panel completely when the door glazing drops down;
*The door panel could be added with ellipsoidal or rectangular glazing to increase transparency;
*The door track is formed by a galvanized steel coil provided by Baosteel in a one-time process without welding. It's durable and reliable;
*A variety of track-lifting methods could match the interior structure of your production hall or warehouse. Avoids interference with the pipings and tracks above the openings.



1, The PU panel is produced by our subsidiary company "Shanghai XinXin Panel Co., Ltd", imported the Germany 150 meter-long production line for the PU panel to gurantee the panel quality. High PU density lead to very good insulation effect (For this production line, there's only 1 in whole of China).

FastLink Different Lifting System Automatic Sliding Door



2, High density PU filler, excellent insulated effect! PU panel be made into sectional door panel, all by our own factory.

FastLink Different Lifting System Automatic Sliding Door



3, Sectional door installed in your warehouse. Good insulated effect, Anti-wind pressure meets GB/T 7106-2008, up to 700N/m2; Water sealing meets GB/T 7106-2008, Grade 1; Air Sealing meets GB/T 7106-2008, Grade 7.

FastLink Different Lifting System Automatic Sliding Door



Comparison for the Door Panel



Fastlink

Other Brands

Production

Technology

Germany Automatic Continuous

Production Line, whole numerical

control, polyurethane foam computer precision control, foam evenly high density. 6m/min High-efficient production

Handmade polyurethane filling foaming, rely on workers operating skills to control the quality of the

product, quality is not stable, low production efficiencies, 6 panels need 8 minutes foaming

Panel Material

finger prevent panel design, 0.5mm Bao steel color coated plate, Germany's bayer polyurethane foam materials

plastic parts split type door plank structure,0.45mm aluminium plate

Hinge And

Window Hole

NC Equipment, all prefabricate in

advance, improve the installation

precision and efficiency



The Internal

Block

Without

Internal panel needs foamblock directly affect the plate strength





Comparison Of Track

Configuration

Fastlink Other Brands

Track

2.0mm Bao steel, galvanized steel

1.8mm galvanized steel plate

Track Model

Patent design

Ordinary C orbit

Connection Type

Bolted connection

Dieless clinching





Comparison Of Torsional Spring Balance System

Configuration

Fastlink Other Brands

Material

60SiMn long service life

82B Short lifetime

shaft

Shaft Standard solid circular shaft

Non-standard six arrises hollow

Wire Rope Pulley

Cast aluminum alloy Plastic parts

Wire Rope Fixed Seat

Steel components Plastic parts





Comparison Of Electronic Control System

Configuration
Fastlink  Other brands
Control box Digital display control including error code display Simple control operation
Door and the dock leveler centralized control Control box can upgrade directly for the centralized contro Without
Motor limitation The absolute value code electronic limitation technology.Stable and High accuracy Mechanical limitation Unstable and Low accuracy
Our Features

4, FastLink PU sectional door details show:

Finger protect design                Soft edge design                        Anti-breaking spring device

FastLink Different Lifting System Automatic Sliding Door

Anti-breaking cable device          Built-in steel cable                     New type control box

FastLink Different Lifting System Automatic Sliding Door



5, Safety airbag device, when the door going down and touch any barrier, the device will operate and the door will stop going down then going up.

FastLink Different Lifting System Automatic Sliding Door

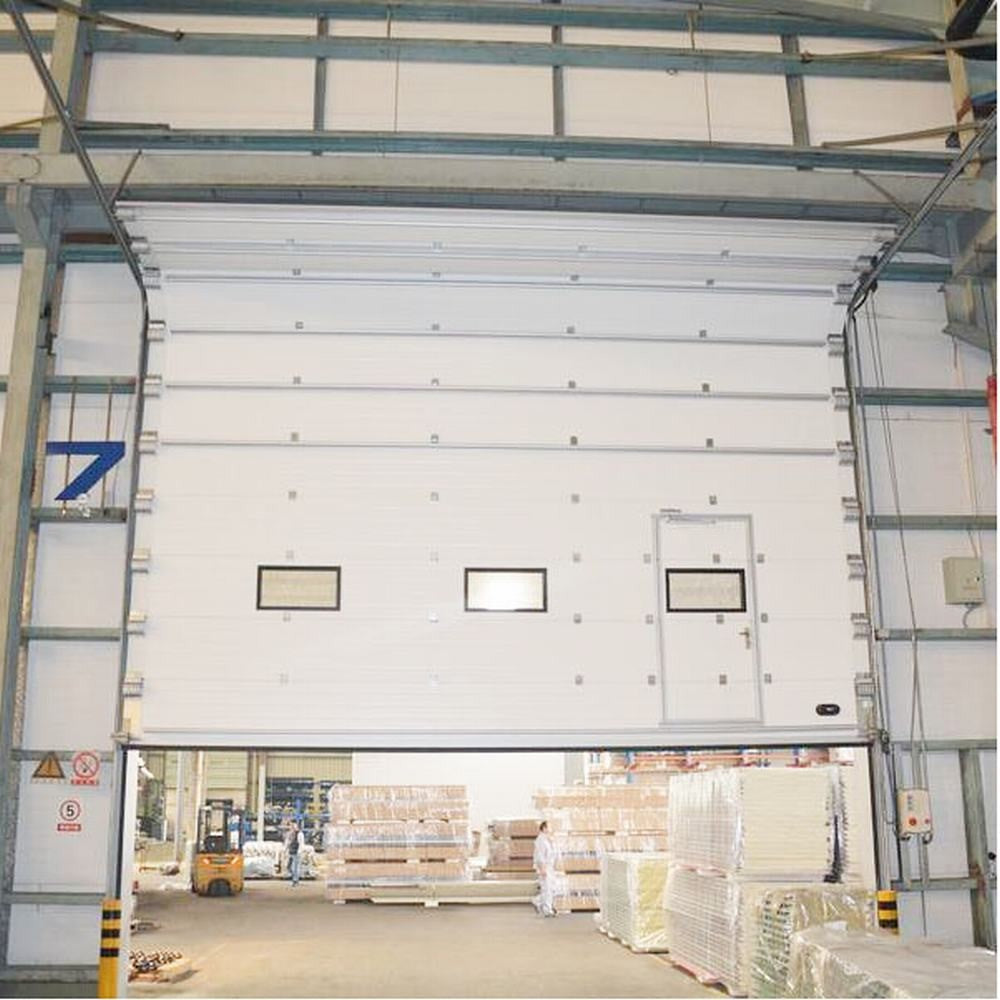

6, Vision window and pass door can be an optional to our customers.



FastLink Different Lifting System Automatic Sliding Door



Various Lifting System

  FastLink Different Lifting System Automatic Sliding Door

Packaging & Shipping



1. Packing: The door panel all packed in one wooden case. Door tracks, spring, control box, motor and some accessories all packed in one hard paper case.

2. Shipping: Standard finish production within 10-20 days, mostly based on order quantity. About 30 days to Europe, 35 days to America, 25 days to australia, 35 days to South Africa.

Our Services

1. Warranty

13 months, because there is a shipping period, so we plus one month for warranty compensation. During warranty, we will send sapare parts and components to you through Express.

2. 100% Payment Protection

If you pay through Ali Trade Assurance, via credit card or T/T, you will pay to Alibaba  first, then we manufacture and deliver, Ali will pay to us only when you confirm on your electronic contract that you have got the goods, or Ali will send the money back to you.



3. Shipping Assistance

If you ask shipping agent to Shanghai to ship your goods, we will help you deliver the goods to Shanghai port and deal with the export customs clearances; If you need us to ship the goods to your country, we will deliver the goods to the port you tell. (Whatever EXW, FOB, CNF,CIF or DDP, we always find the cheapest way for you to save money on your side)

Company Information

  FastLink Different Lifting System Automatic Sliding Door FastLink Different Lifting System Automatic Sliding Door FastLink Different Lifting System Automatic Sliding Door

Shanghai FastLink Door Co., Limited——a high-tech enterprise based in Shanghai and devotes itself to developing and becoming the largest manufacturer of industrial doors and loading / unloading equipment in China. We develop and manufacture independently the series of products including sectional doors, single panel doors, high speed doors, dock levelers, dock seals / shelters, vehicle restraints and HVLS fans. All the main products have passed European CE certification. They are protected by a number of technology patents and can be customized to produce per the demands of customers.

FAQ

 1) How much for the door?

Re: Sectional door price is based on door size, panel color, lifting type, with or without windows, with or without pass doors and also quantity for one time order. We have a detailed product survey form for you to fill in before quotation, which makes there's no misunderstandings. To provide you best price with the exactly product you need.



2) Door standard configuration?

Door Sections

Counterbalance

White Gray color is standard both inside and outside

Precision-engineered by a computer program

Pinch-resistant door panel

Torsion spring material is 60Si2Mn,electrophoresis spring

500mm height

Torsion spring by the special heat treatment and oil

immersion antirust treatment

40mm / 50mm thickness

Torsion spring providing a minimum 30,000 cycles

Two layer zinc galvanized steel with a thickness of

 0.5mm

Strutting

Bayer Polyurethane inside

All sections over 5500mm wide

Polyurethane insulation with a density of 42kg/m 3

outside strutting is made of 1mm thick galvanized steel

with abnormity structure

Flaser texture surface

Wind-load minimum 75kg/m2 per DASMA 102-2003

Interior have continuous back up steel strips

Safety Device

Fire-protection rating GB8624-B2

Broken cable safety device

Thermal conductivity k-value:0.5Watt/(m2x℃)

Electronic limit function with digital display control box

Thermal resistance λ-value:0.0170kcal/(m×h×℃)

Soft edge with safety gasbag

Track

Sliding bolt lock (only for manual type door)

380mm standard radius track

Versatile track configurations

2mm hot-dipped galvanized steel

Standard lift

C-profile anti-wind track

High lift

Weather Stripping

Vertical lift

Bottom seal is U profile astragal, sides and top are

quick-set-in ones

High/Vertical center lift

Hardware

Limitations

Aluminum die casting End Stiles

Maximum area 33m 2

Abrasion proof Nylon 66 Roller

Maximum width 5,500mm for standard lift

High-strength galvanized steel hinge

Maximum width 8,000mm for high lift

Aviation Dedicated galvanized steel rope

Maximum width 8,000mm for vertical lift

Push down bumpers

Maximum height 5,500mm for standard lift



Maximum height 6000mm for high lift



Maximum height 6000mm for vertical lift



3) How can I contact you?

You can send us an inquiry on alibaba through the following window, we will reply you as soon as possible. Or you can contact us directly via the following way.

Name: Gloria Chen

Skype: 13723716025(at)163.com

Mobile/WhatsApp/WeChat: 0086 13723716025

Mail:gloria.chen(at)fastlinkchina.com

Classic cases

Project cases:

Amazon                                                                Global Logistic Properties

(1000 sets sectional door, 620 units dock leveler)           (5000 sets sectional door, 2200 units dock leveler)

FastLink Different Lifting System Automatic Sliding Door

VIP Shop                                                              UPS

(1500 sets sectional door,1000 units dock leveler)          (200 sets sectional door, 150 units dock leveler)

FastLink Different Lifting System Automatic Sliding Door





Applications:



The industrial sectional door is excellent in the aspects of lightness, thermal insulation, tightness, anti-wind, anti-theft, long service life, realistic as the external doors in factories and logistics.

Widely applied in various industries such as automobiles, electronics, food, medicines, logistics, tobacco.





If you have any needs, welcome to send us your inquiry. We'll do our best to make all your needs satisfied!!!
