exterior aluminum metal louver for wall and window on China WDMA

Exterior aluminium metal louver DEXONE® offer all kinds of aluminium louver, architectural louver in China, such as Aerofoil louver, Aerowing louver, Aerobrise louver, Celoscreen sun shutter, Box louvers, Aeroscreen series in china. Aluminum building louver in different shape, size, and color. (RAL or wood grain color)   Architectural Exterior aluminium louver...
$150.00
$100.00

China Windows and Doors Manufacturers Association

Exterior aluminium metal louver

DEXONE® offer all kinds of aluminium louver, architectural louver in China, such as Aerofoil louver, Aerowing louver, Aerobrise louver, Celoscreen sun shutter, Box louvers, Aeroscreen series in china. Aluminum building louver in different shape, size, and color. (RAL or wood grain color)



Architectural Exterior aluminium louver  (fixed/horizontal)

It can be motorized or vertical system

exterior aluminum metal louver for wall and window

Architectural aluminium louver could be installed in horizontal or vertical system( including stationary), suitable for various of plane, facade and bevel indoor and outdoor sun shading of modern commercial buildings large-scale glass curtain wall, windows, and glass roof as awning, with grand building structure. The choice of slats color is as the designer, architect or owner requirements, harmonized with the buildings decoration perfectly.



Architectural aluminium metal louver

  1. Material Aluminum alloy

  2. Type: Fixing and adjustable installation

  3. Installing: horizontal / vertical

  4. Feature: Energy-saving, heat insulation

  5. Surface treatment: Powder coating (Akzo Nobel) / PVDF finish/Anodized

Architectural aluminium metal louver drawing

exterior aluminum metal louver for wall and window

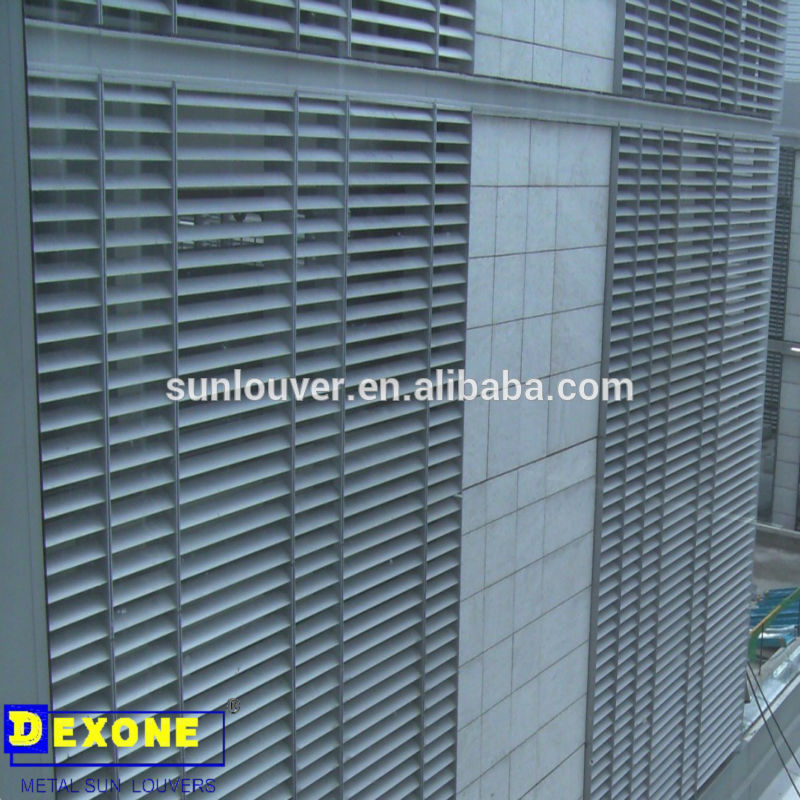

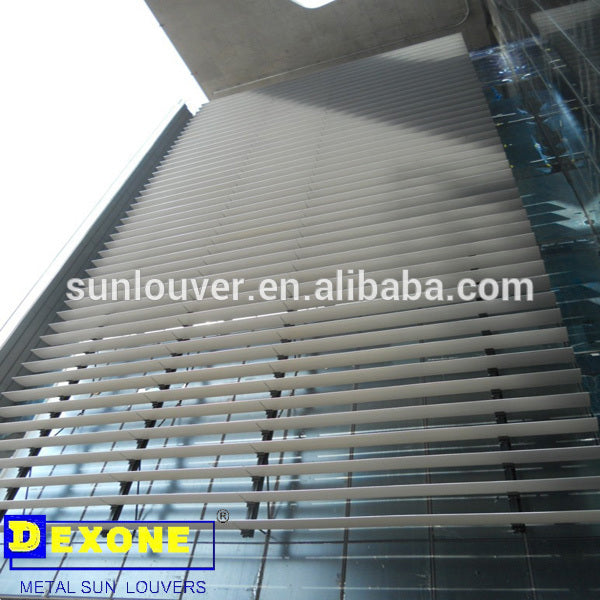

Similar Architectural aluminium louver project in Indonesia.



exterior aluminum metal louver for wall and window exterior aluminum metal louver for wall and window



  Architectural aluminium metal louver specification

Material

Aluminum extruded profile 6063-T5/T6

Series

Aerofoil / Airfoil

Shape

Elliptical

Size

200mm, 150mm, 100mm, 75mm, 400mm, 300mm, 350mm, 250mm,

Thickness

1.0-3.0mm

Finish

Powder coated, PVDF paint

Coating Material

Akzo Nobel, PPG, can be 15-20years warranty

Color

RAL colors and wood grain is available

Pattern

Vertical/Horizontal

Type

Fixed or motorized

Usage

Façade, curtain wall, window, louver, shutter



Advantages for  Architectural aluminium metal louver

  1. Protect from the strong sun light

  2. Heat insulation

  3. Easy installation

  4. Low maintenance cost

  5. Long life

  6. Up grade the building

  7. Block sunlight



Application for  Architectural aluminium metal louver

  1. Government building

  2. Air port, Hotel

  3. Exhibition hall

  4. Commercial building

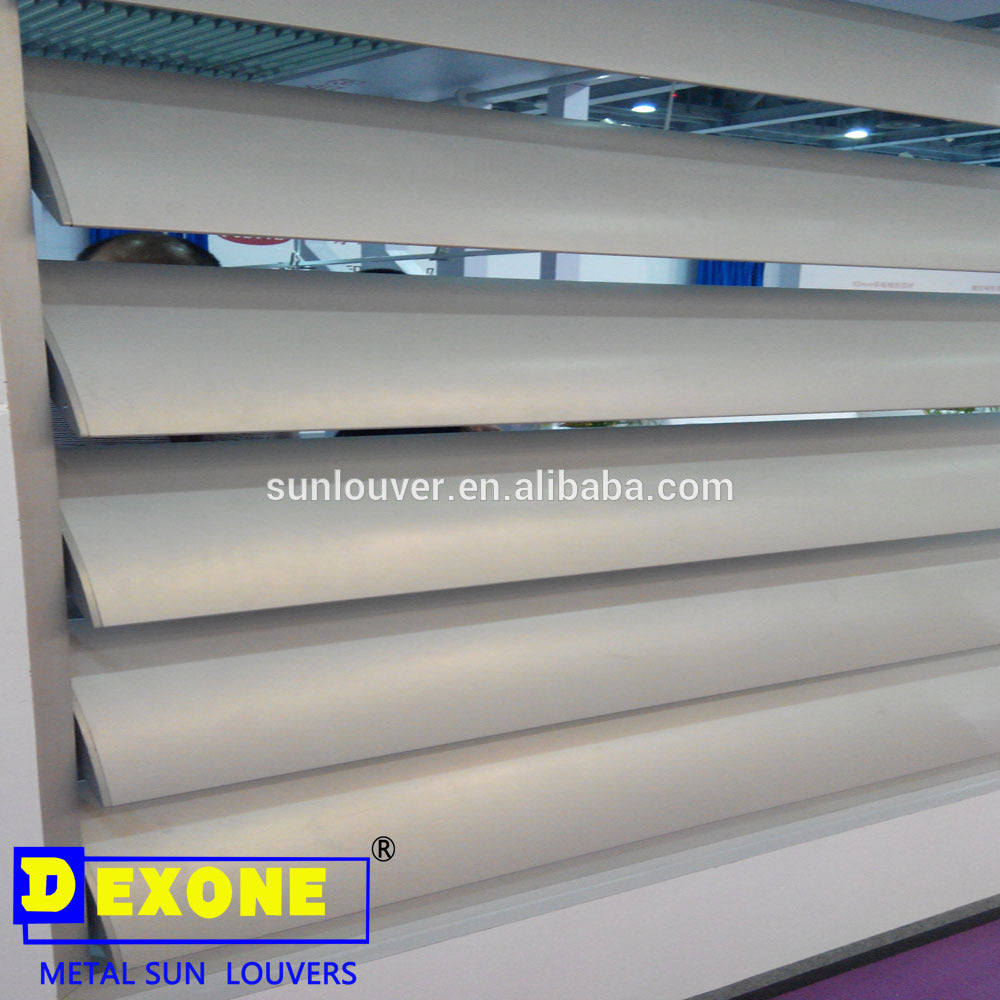

DEXONE® Aerofoil Architectural aluminium metal louver  are based on aluminum extrusions, mainly in elliptic shape, width vary from 75mm to 600mm, maximum length 6000mm. The length depends on wind load and clients requirement.

exterior aluminum metal louver for wall and window



DEXONE Aerofoil building metal  louver size as below, made of aluminum profile | aluminum extrusion section

exterior aluminum metal louver for wall and window

 Other similar  Architectural aluminium metal louver supply, please click it and contact us.

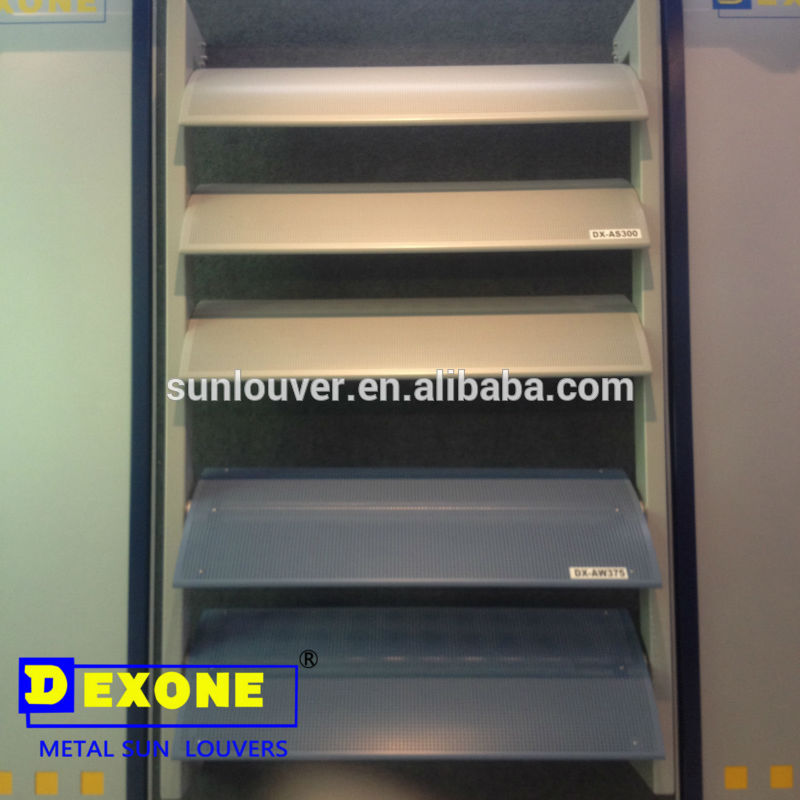

Aerowing perforated  Architectural aluminium metal louver

exterior aluminum metal louver for wall and window

other Architectural aluminium metal louver

exterior aluminum metal louver for wall and window

 Our Factory

 Packing & Loading

exterior aluminum metal louver for wall and window



Our Project

exterior aluminum metal louver for wall and window
