Design And Cost Of Steel Structure Warehouse Construction Buildings



Design And Cost Of Steel Structure Warehouse Construction Buildings

Product Description

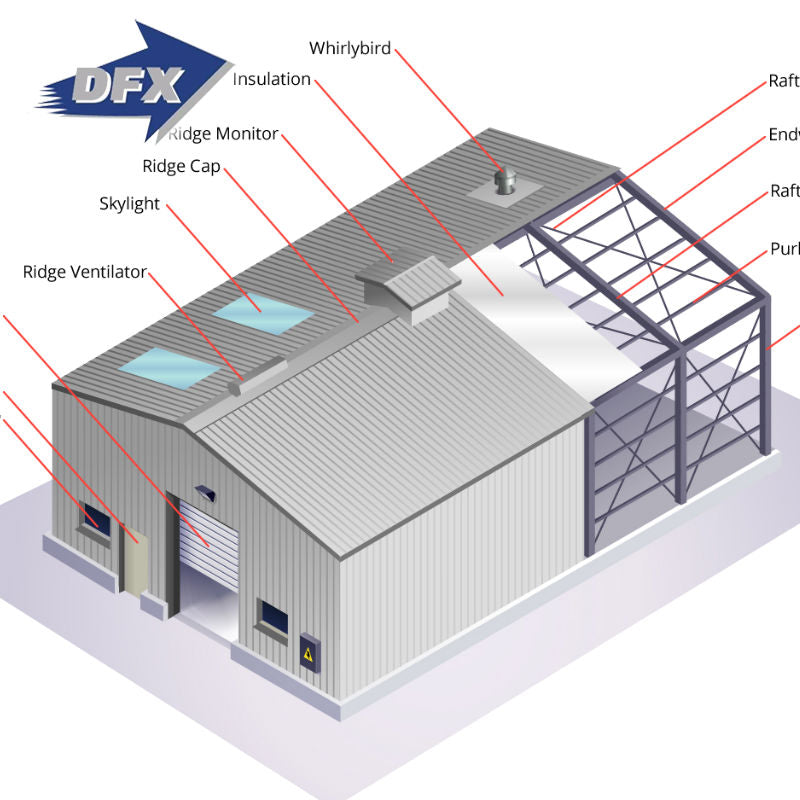

Design And Cost Of Steel Structure Warehouse Construction Buildings

2. Specification

Items Specification
Main Steel Frame Column Q235, Q345 Welded H Section Steel
Beam Q235, Q345 Welded H Section Steel
Secondary Frame Purlin Q235 C and Z purlin
Knee brace Q235 Angle Steel
Tie Rod Q235 Circular Steel Pipe
Brace Q235 Round Bar
Vertical and Horizontal Support Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance system Roof Panel EPS Sandwich Panel / Glass Fiber Sandwich Panel /
Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
Wall Panel Sandwich Panel / Corrugated Steel Sheet
Accessories Window Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window
Door Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Rainspout PVC
Live load on Roof In 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade 12 Grades
Earthquake-resistance 8 Grades
Structure Usage Up to 50 years
Finishing Options Vast array of colors and textures available
Paint Options Alkyd paiting, two primary painting, two finish painting
(gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized.

3. Characteristics

1. Wide span: single span or multiple spans, the max span is 36m without middle column.

2. Low costand maintenance: unit price range from USD35/m2 to USD70/m2 according to customers request.

3. Fast construction and easy installation: time saving and labor saving.

4. Long using lifespan:up to 50 years.

5. Nice appearance.

6. Others:environmental protection, stable structure, High quake-proof, water proof and fire proof, and energy conserving.

Specifications

Main steel frame:

Prefabricated construction design steel structure warehouse

Steel frame brace:

tie bar, roof and wall bracing, brace, knee bracing, casing pipe

Wall Panel:

50mm/75mm/100mm sandwich board(with EPS, PU, glass wool, rock wool, etc for its interlayer)

Roof Panel:

50mm/75mm/100mm sandwich board(with EPS, PU, glass wool, rock wool, etc for its interlayer)

Windows:

Aluminum alloy window or plastic steel windows

Doors:

Sandwich board door or aluminum alloy door

Fasteners:

anchor bolt, high strength bolt, general bolt, nut, washer etc



Specifications For Wall And Roof Panel

EPS sandwich panel



EPS sandwich panel(50mm,75mm,100mm)

Width of panels

950mm/1150mm

Lengths of panels

customized

Thickness of color steel plate

0.3-0.5mm

Specific gravities

8-16Kg

Resistances of heat-transfer process

0.035-0.05w/m.k

Sound deadening



Limits of fire resistance

None



Rock wool sandwich panel



Rockwool sandwich panel(50mm,75mm,100mm)

Width of panels

950mm/1150mm

Lengths of panels

customized

Thickness of color steel plate

0.3-0.5mm

Specific gravities

10.2-17.7Kg/

Resistances of heat-transfer process

≤0.044w/m.k

Sound deadening

21.5db

Limits of fire resistance

Grade A incombustible



PU sandwich panel



PU sandwich panel (50mm,75mm,100mm)

Width of panels

950mm/1150mm

Lengths of panels

customized

Thickness of color steel plate

0.3-0.5mm

density

≥30Kg/m3

Water absorption for 24 hours

≤1

thermal conductivity

≤0.023w/m·k

compressive strength

≥200kpa

fire proof rate

B1

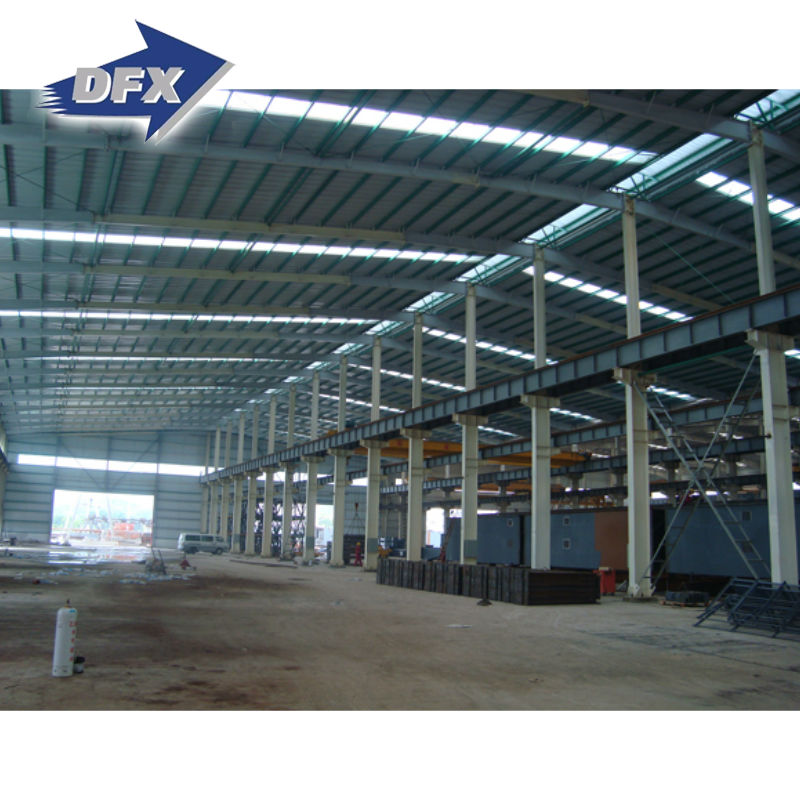

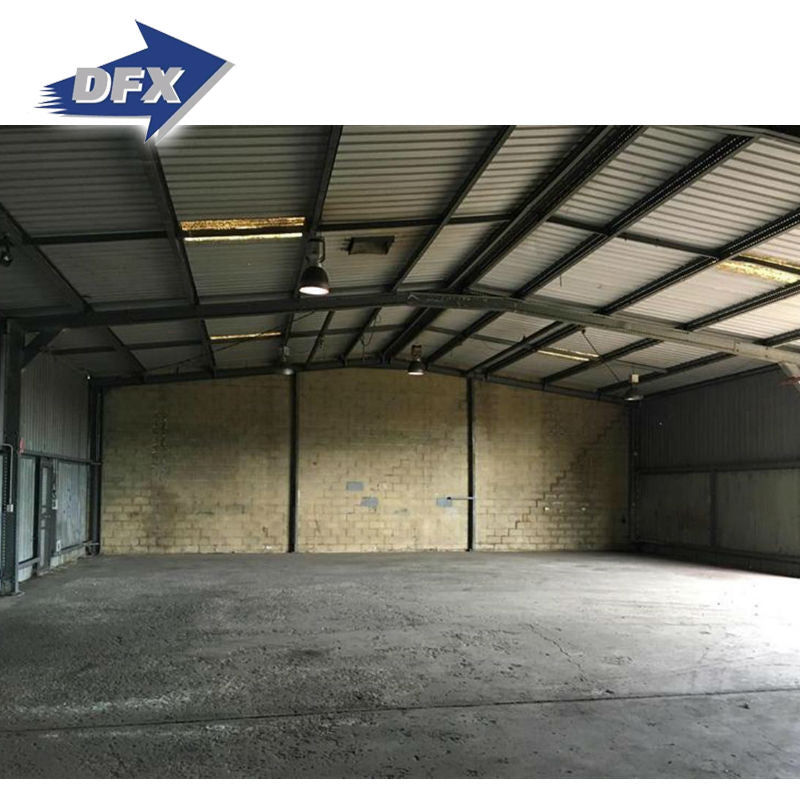

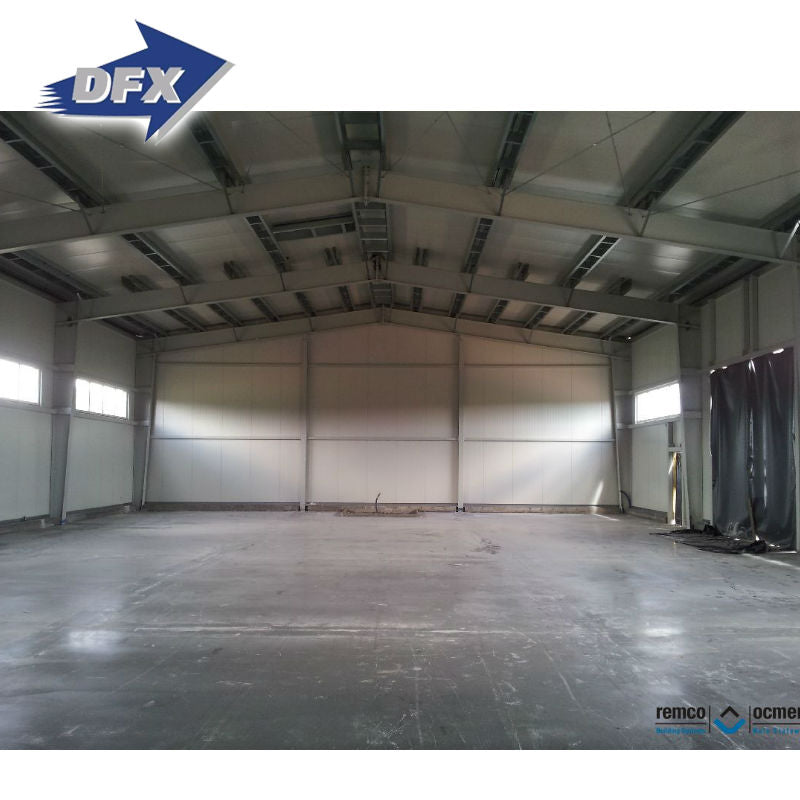

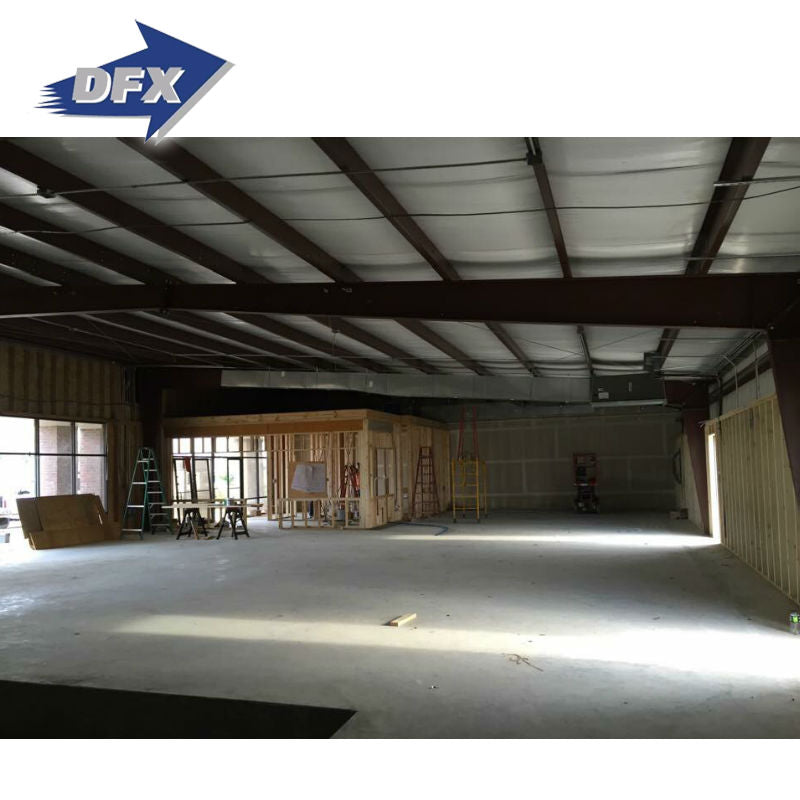

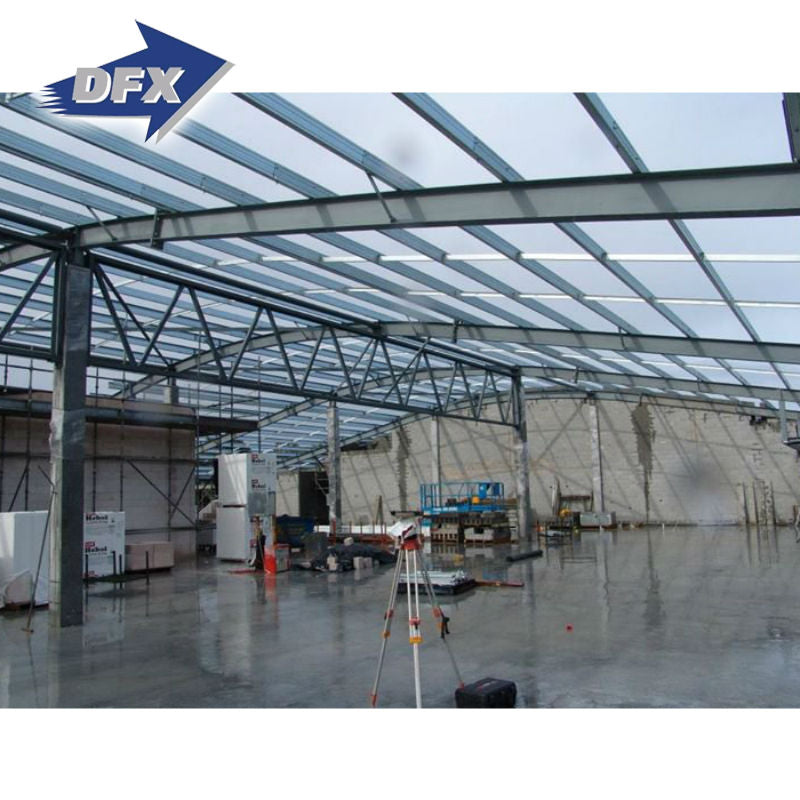

Product Show





Design And Cost Of Steel Structure Warehouse Construction Buildings Design And Cost Of Steel Structure Warehouse Construction Buildings



Design And Cost Of Steel Structure Warehouse Construction Buildings

Main Material

Design And Cost Of Steel Structure Warehouse Construction Buildings Design And Cost Of Steel Structure Warehouse Construction Buildings Design And Cost Of Steel Structure Warehouse Construction Buildings

Successful Projet



1. Some main oversea projects we undertook in the last couple months

Industrial Warehouse (13000M2) Argentina

Warehouse (14000M2)----Republic of Uzbekistan

Workshop (12000M2)----Canada

Warehouse (3600M2)---Romania

Vegetable Market (2500M2)----Mauritius

Pig shed (3500M2)---USA

Chicken shed (2800M2) )------ Australia

Aircraft Hangar (1300M2)------Australia

Warehouse (900M2)----Mongolia

Prefabricated house (70M2)----800sets---Angola

Container house (20')-----60 sets South Africa

2. Transaction history

Design And Cost Of Steel Structure Warehouse Construction Buildings Design And Cost Of Steel Structure Warehouse Construction Buildings

Company Information

Design And Cost Of Steel Structure Warehouse Construction Buildings Design And Cost Of Steel Structure Warehouse Construction Buildings

Our Services

Design And Cost Of Steel Structure Warehouse Construction Buildings



FAQ



Q1. You are manufacture factory or trading company?
A: We are manufacture factory. And you are welcomed to visit us for inspection. The quality control flow will show you ourprofessional. Also you will enjoy the best price and competitive price.
Q2. Is your price competitive with other companies?
A: Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost.
Q3. Do you offer service for installation?
A: We will give detailed installation drawings and video for free. And if you need, we could send engineers as installation director even a team.
Q4. Do you accept container loading inspection?
A: You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
Q5. Do you offer designing service for us?
A:Yes, we could design full solution drawings as your requirements. They use software such as Auto CAD, PKPM, MTS, 3D3S, etc. we will be glad to establish sincere business cooperation with you in the near future
Q6. What is the delivery time?
A: Delivery time depends on order quantities. Generally, the delivery time will be 30 days after receiving deposit.
Q7. How can you get a quotation for your projects?
A: You can chat with me anytime via Trade Manager to offer me your detail information or you can just fill out our questionaire(through my email below)and send back to us. We will give you the best quotation ASAP. Thanks for your kind cooperation.
