CNC double mitre saw for aluminium window fabrication on China WDMA

CNC double mitre saw Double Head Cutting Saw LJZ2S-500X4200         Product Description   Features of cnc double mitre saw :   1.     For cutting Aluminum profile. 2.     The feeding system adopts imported linear guide pair, with high accuracy and stability. 3.     Auto 45°,67.5and 90°cutting change 4.     Imported...
Model Number :
$16,425.00

China Windows and Doors Manufacturers Association

CNC double mitre saw

Double Head Cutting Saw

LJZ2S-500X4200

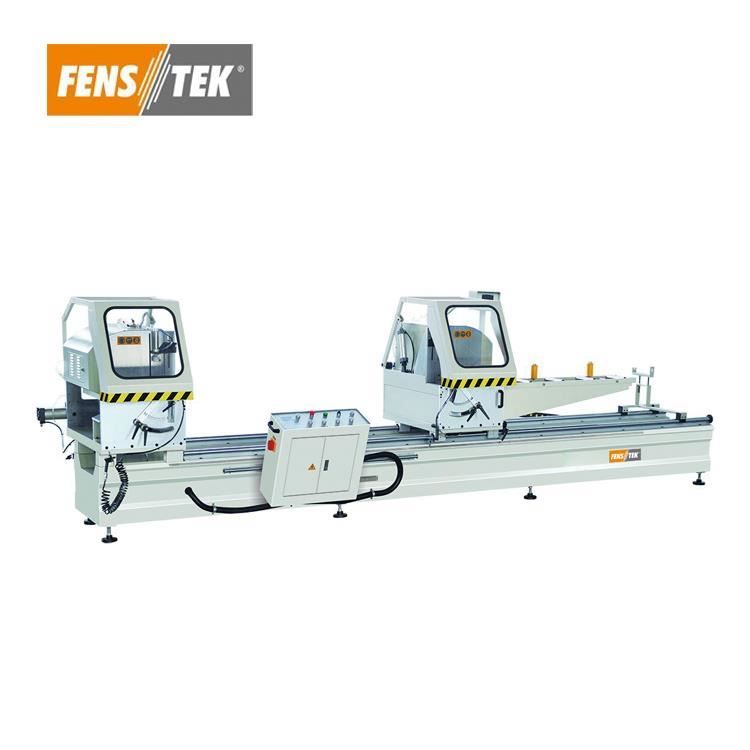

CNC double mitre saw for aluminium window fabrication

Product Description



Features of cnc double mitre saw :



1.     For cutting Aluminum profile.

2.     The feeding system adopts imported linear guide pair, with high accuracy and stability.

3.     Auto 45°,67.5and 90°cutting change

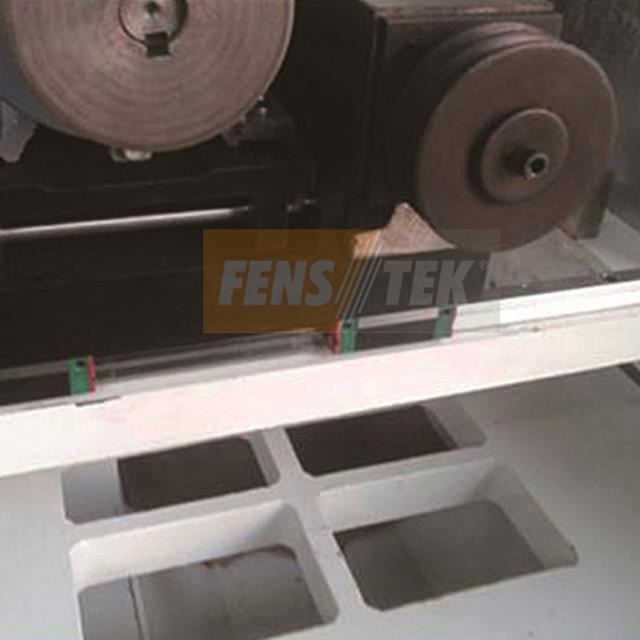

4.     Imported linear guiding pair ensured steady processing accuracy.

5.     Saw blade rotates smoothly due to high accuracy spindle.

6.     Hydraulic feeding systems ensure precise and stable feeding.

7.     Middle auto-induction profile supporter and following profile supporter make the loading and clamping  convenient.

8.     Carbide saw blade is of accurate processing and high efficiency.

9.     Two heads can work together or single, when together work, one time can cut off the required length and angle



Parameter of  cnc double mitre saw

Power supply

 3N~50Hz 380/220V or As Customer Specification

Saw-head motor

 2×2.2KW    2800r/min

Operation air pressure

 0.5~0.8MPa

Air consumption

 60L/min

Cutting length

 Max 4200mm Min 385mm

Cutting width

 Max 135mm

Cutting height

 900 : max  300mm  450 : max  200mm

Cutting angle

 90°,45°,67.5°(for spare )

Cutting speed

 Step less speed regulation 0-3m/min

Blade specification

 ø500×ø30×4.4×Z120

Repeat locating length

 ≤0.2mm

Cutting angle allowance

 ±5’

Cutting profile surface plane

 ≤0.1m

Cutting profile surface roughness

 Ra12.5μm

Contour dimension

 5530×1750×1950 mm

Weight

 1800kg



Main accessory



Wagen

Saw blade

Solenoid valve

Germany FESTO

Cylinder

PC(FESTO Joint Venture Brand)

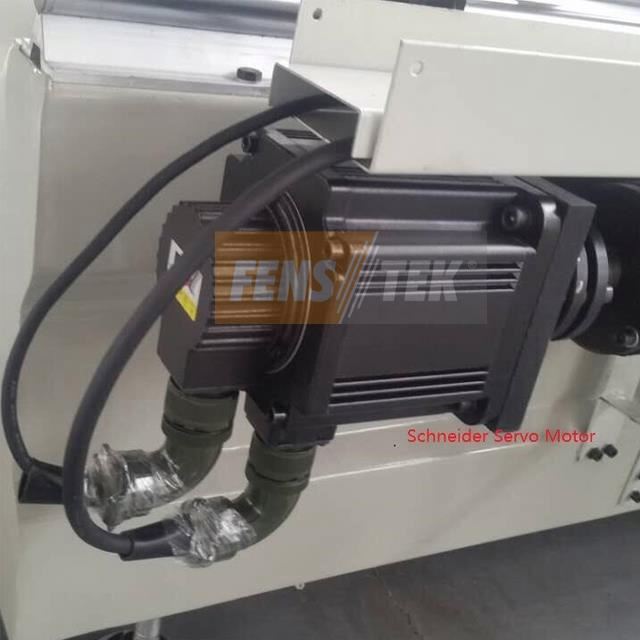

Motor

Anhui Sanyang (Best Chinese Motor Brand)

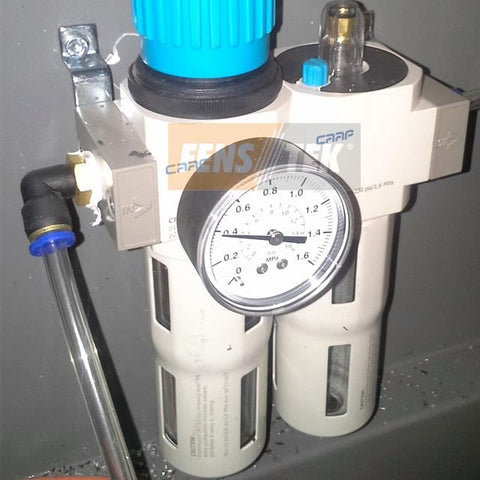

Air Filter Device

STNC

Electrical Button and Switcher

Schneider

AC Contactor and Circuit Breaker

Schneider

Linear Bearing System

HIWIN



Standard accessory



Saw blade

2pcs

Mobile work piece supports

2set

Air Gun

1pc

Complete tooling

1set

Certificate

1pc

Operation Manual

1pc

Coolant Spray  Device

2pcs



Optional Device

Dust Collector System

Digital displaying device (Model LJZ2XII-500X4200)



Delievery
