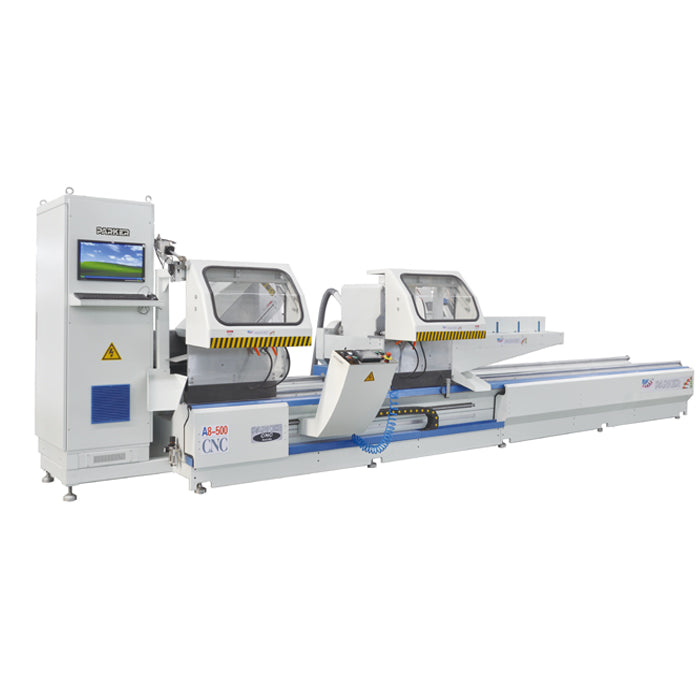

China New Condition Double Head Mitre Saw For Aluminum Window Fabrication on China WDMA

Product Description Any Angle Heavy Duty Double Head Cutting Sa A8-650 Features 1.The machine is the most advanced double-head cutting saw for aluminium profile. 2.The control system adopts the new closed-loop system, and can ensure the accuracy of repeat length. 3.The imported blade with high precision makes the cutting surface...
Model Number :
Max. Working Width :
$35,000.00

China Windows and Doors Manufacturers Association

Product Description

Any Angle Heavy Duty Double Head Cutting Sa

A8-650

Features
1.The machine is the most advanced double-head cutting saw for aluminium profile.
2.The control system adopts the new closed-loop system, and can ensure the accuracy of repeat length.
3.The imported blade with high precision makes the cutting surface smoothly.
4.The servo motor drives the speed reducer to adjust the cutting angle in 45°-157.5°.
5.The imported control system can ensure the cutting quality.
6.Several profile processing dimensions can be input one time and make continuous cutting.
7.The moving saw head with high moving speed,full closed-loop control and high accuracy of ruling is driven by synchronous belt which is controlled by the imported serve motor.
Parameter
Voltage
380V 50HZ
Power
7.5KW

Cutting length
Max5000mm Min480 at 90°

Max5000mm
Cutting width
200mm
Cutting height
350mm
Cutting angle
45°-157.5°(Any angle in the range)
Overall dimension
6800mmX1700mmX2000mm
Detailed Images





 France Schneider HMI touch screen

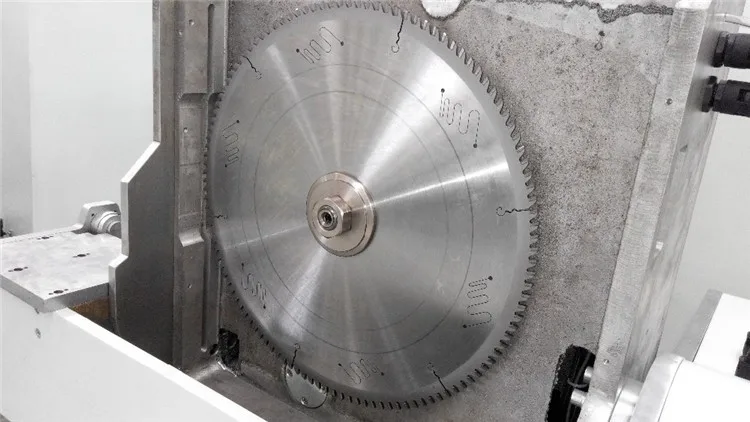

                  650mm diameter big saw blade

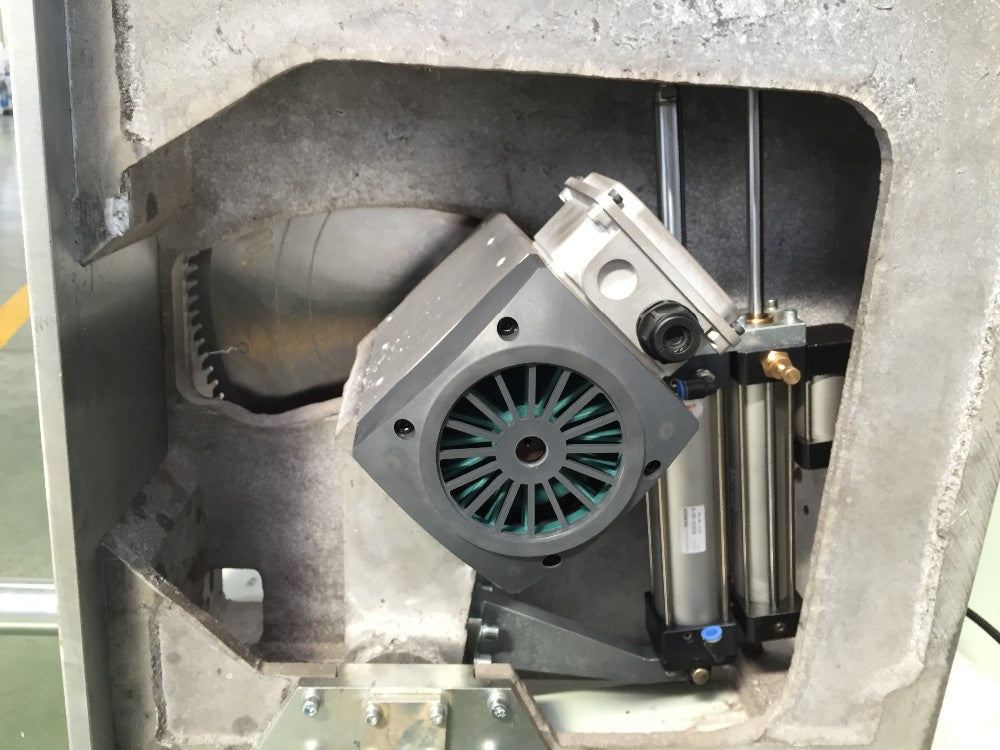

             Schneider Servo Motor Drive the Saw Blade





Full-set France Schneider PLC and Electric Parts


Why Choose Parker

Parker Data

15 years manufacturing experiences.

66,000 sqm production base.

35 peoples R&D team.

15 peoples after-service team.

Machine Parts Used

Machine parts all used the imported brand like Yaskawa, Schneider, TBI, ABB...and so on.

Meet CE and UL certificate.

Quality Control / After service

Raineshaw laser testing device before delivery.

5 engineers give fast solutions to solve the after-sales problem.



Parker Machine is Very Stable and Rarely See Suddenly Failed to Affect the Normal Work!

CE Certificate

Patent Certificate

Honor at home and abroad
Packing & Shipping

Packing:Wooden pallet or As customer requirement.

Woodbox for free fumigation

Shipping:Ocean ship  EXW/FOB/CIF

Container or LCL:20 GP/HQ/OT   OR  40 GP/HQ/OT

After-sales Service
After-sales Service
Information

After-sales Service 1
If our customers need our company send our engineer to install the machines and train your workers.Our customers should pay for our engineer's round trip tickets, board and lodging during testing and teaching, and subsidy USD60 per day.
After-sales Service 2
On-line Service and All documents and videos for Installation and train operation for free.(For Optional)
