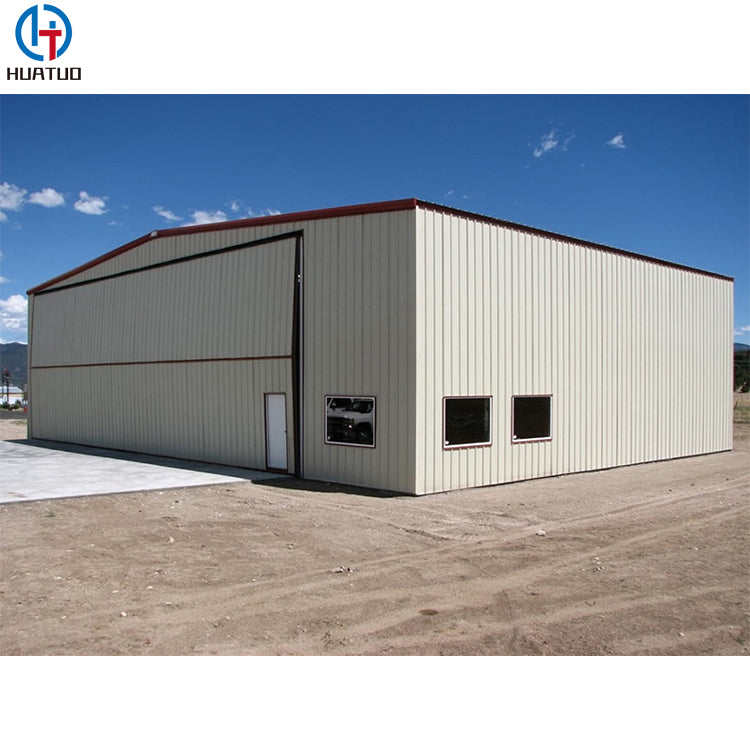

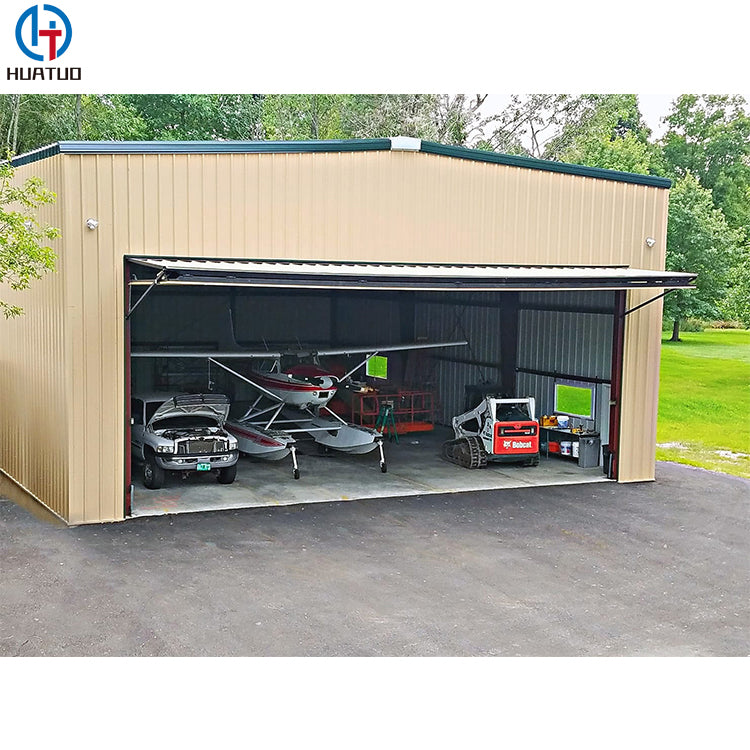

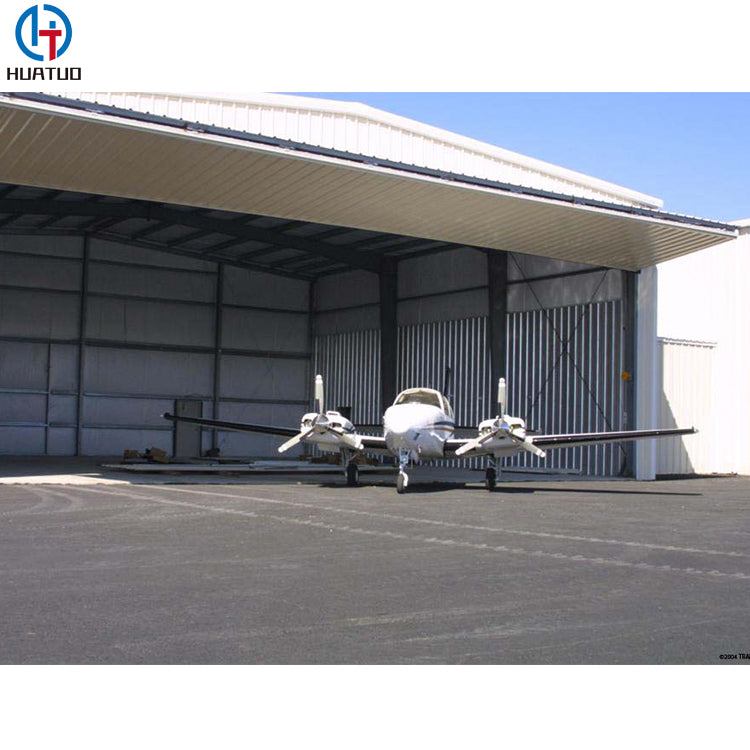

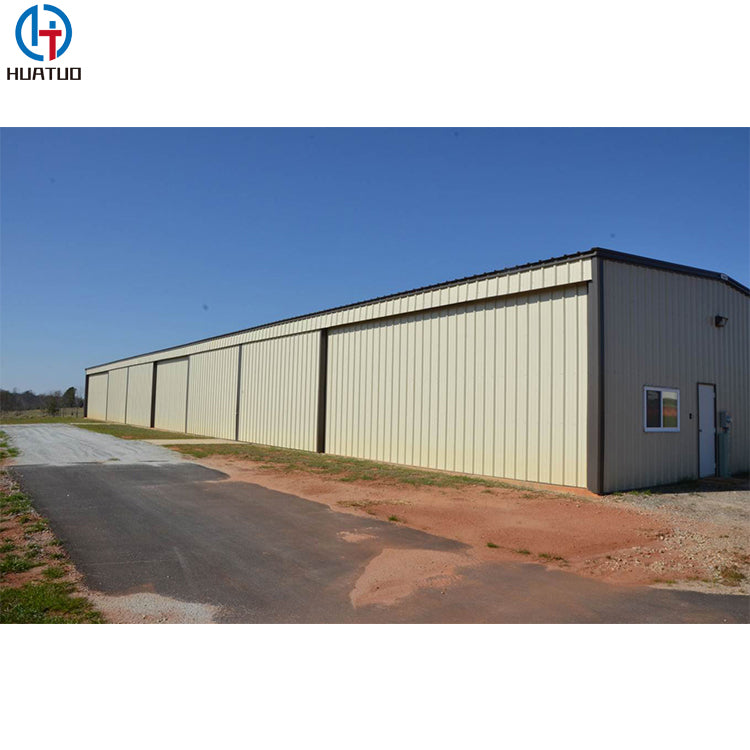

China low cost 1000 square meter Economical Steel Building Garage Hangar Steel Structure prefabricated warehouse on China WDMA
China low cost 1000 square meter Economical Steel Building Garage Hangar Steel Structure prefabricated warehouse

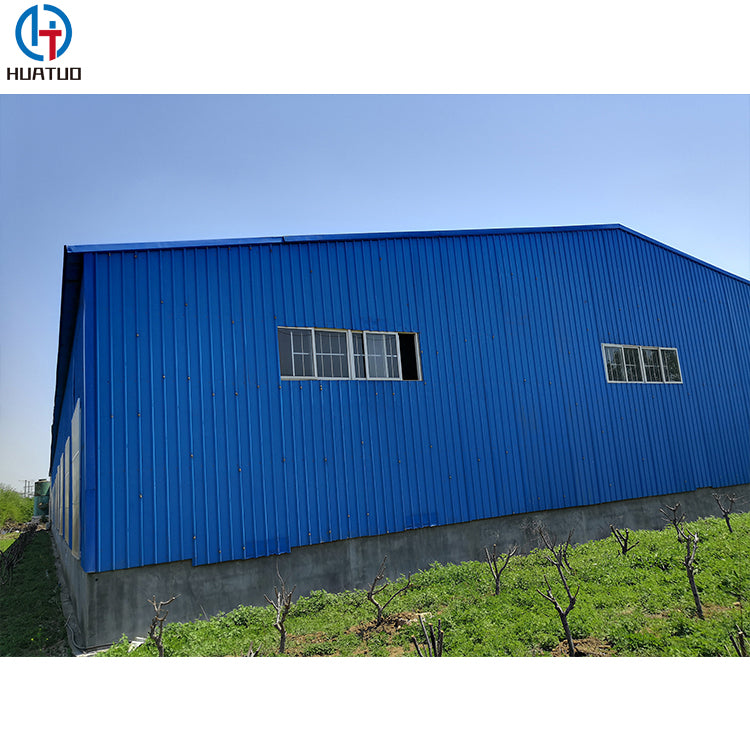

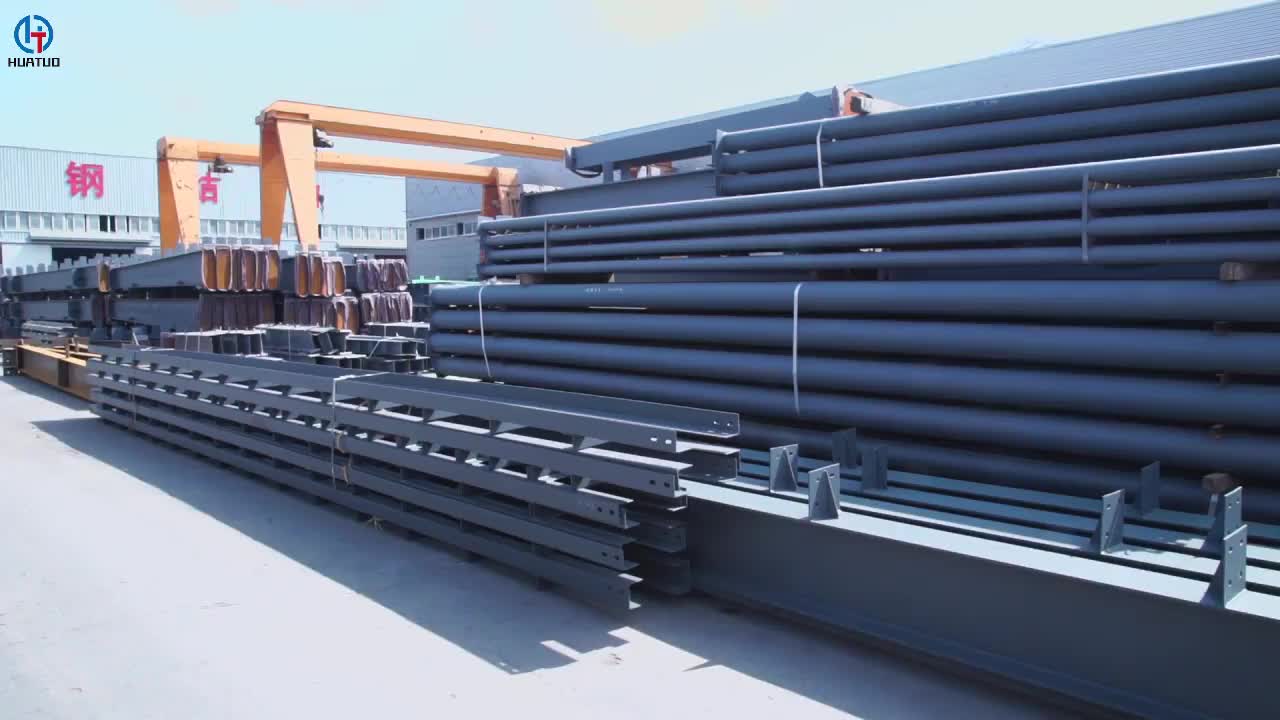

Qingdao Huatuo steel structure warehouse has features of high fire resistance, strong corrosion resistance. Steel structure workshop is mainly refers to the main bearing component is composed of steel. Including the steel columns, steel beam, steel structure, steel roof truss.
The roof and wall can be made of composite panel or veneer. Galvanized sheet metal can prevent rust and corrosion. The use of self-tapping screw can make the connection between the plates more closely, to prevent leakage. Composite panel for roof and wall can also be used in our system such as polystyrene, glass fiber, rock wool, polyurethane sandwich panel which have good thermal insulation, heat insulation, fire-retardant performace. The wall of the steel structure maintenance also can use brick wall.

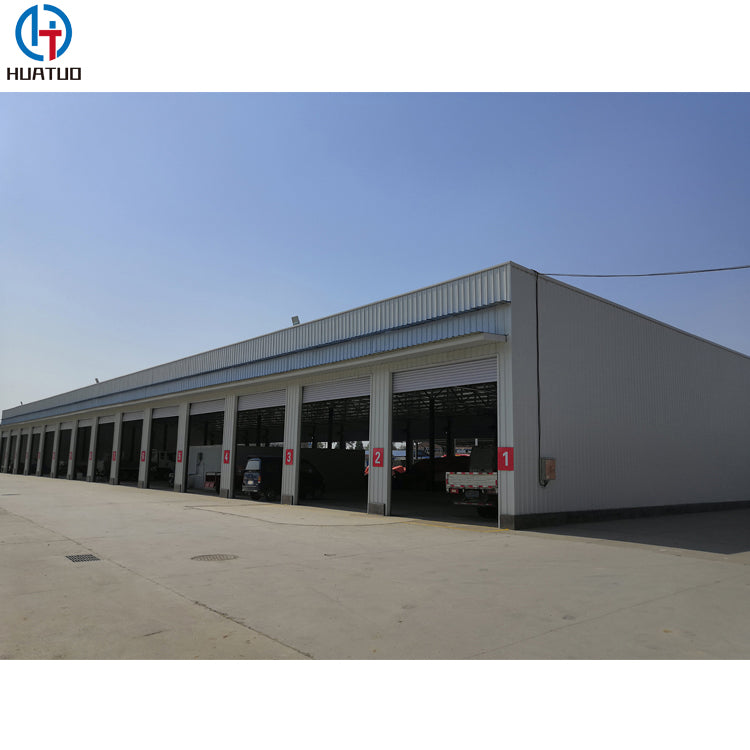

The usage scale includes large-scale workshop, or warehouse, supermarkets, entertainment centers and modular steel structure garage.
|Main Steel Frame||Colum||Q235,Q345 Welded H Section Steel|
|Beam||Q235,Q345 Welded H Section Steel|
|Secondary Frame||Purlin||Q235 C and Z purlin|
|Knee brace||Q235 Angle Steel|
|Tie Rod||Q235 Circular Steel Pipe|
|Brace||Q235 Round Bar|
|Vertical and Horizontal Support||Q235 Angle Steel, Round Bar or Steel Pipe|
|Maintenance System||Roof System||Roof Panel (EPS/Fiber Glass Wool/Rock Wool/PU Sandwich Panel or Steel Sheet Cover) and Accessories|
|Wall System||Wall Panel (Sandwich Panel or Corrugated Steel Sheet|
|Window System||Aluminum Alloy Window/ PVC Window/Skylight|
|Door System||Sliding Sandwich Panel Door/Rolling Metal Door/PVC Door|
|Others||PVC Rainspout,Gutter etc|
|Wind Resisitance Grace||12 Grades|
|Structure life span||Up to 50 years|
|Temperature||Suitable temperature -50℃~+50℃|
|Certification||CE, SGS, ISO9001:2015, ISO 14001:2015|
|Finishing Options||Vast array of colors and textures available|
|Paint Options||Alkyd painting, two primary painting, two finish painting(gray paint, red paint, white paint, epoxy zinc etc.) or Galvanized.|
Technical information of low cost prefabricated steel structure building:
Wind resistance: Grade 11(wind speed≤111.5km/h)
Earthquake resistance: Grade 7
Live load capacity of roofing: 0.5kn/m2
External and internal wall heat transmission coefficient: 0.35Kcal/m2hc
Second floor load capacity: 150 kg/m2
Live load of corridor is 2.0kn/ m2
1. Different types and sizes according to customer’s demand: large or small, wide span, single span or multiple spans. The max span is 36m without middle column.
2. Low cost and maintenance advantages.
3.Fast construction and easy installation: time saving and labor saving, all the items are factory-made, pre-cut, pre-welded, pre-drilled, pre-painted.
4.Reduced construction waste, long using lifespan: up to 50 years.
5. Nice appearance.
6. Others: environmental protection, stable structure, High quake-proof, water proof and fire proof, and energy conserving.
By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial building like office mansion, super marker, auto dealer shop, shipping mall, 5 star hotel.
Our excellent design team will design the steel structure workshop warehouse for you. If you give the following information, we will give you an satisfactory drawing.
1. Location (Where will be built): Country area
2. Size ( length* width* height ): m* m* m*
3. Wind speed: KM/H
4. Snow load: KG/m²
5. Rain load: KG/m²
6. Anti-earthquake: level
7. Brickwall need or not? If yes, 1.2m high or 1.5m high?
8. Thermal insulation: If yes, fiberglass wool, rock wool, PU sandwich panels will be suggested; if not, the metal steels will be ok. The cost of the latter will be much lower than that of the former.
9. Door quantity & size: units (width)m (height)m
10. Window quantity & size: units (width)m (height)m
11. Crane needed or not: If yes, units, crane max lift height m, max lift capacity tons, max wheel pressure and min wheel pressure!
we will recommend the best design for the purpose of the building
C. Agriculture Barn
D. Retail Store
E. Repair/Mechanic Shop
F. Office Space
G. Medical Warehouse
H. Animal Farm (please confirm what kind of animal)
1.Common type of the industrial building?
Reply: Portal frame is the usual type in the industrial workshop and warehouse shed. Other
types also could be designed and manufacturer as per clients’ request.
2.What’s the quality grade of the steel structure components?
Reply: Q345 is used for main steel structure, Q235 is used for secondary steel structure.
3.How about the delivery time?
Reply: Usually, within 45-60 days after the order confirmed, also depends on the fabrication
4.How about the derust grade?
Reply: Ball blasting Sa 2.5 on main steel structure ;
manual derust St2.0 on secondary steel structure.
5.What kind panel used for the roof and wall?
Reply: Color corrugated steel sheet and sandwich panel could be used. Sandwich panel
performs well on the heat insulation, sound insulation. Common sandwich materials are EPS, glass wool and PU.
6.How to install it?
Reply: We will furnish you the detailed construction drawing and the construction manual
which could help you to erect and install the building step by step. We also could send the engineer to your local to help you if needed.
Reply: Finish paint need be done after the frame installed, and do it again after 6-8 months. So the surface will stay more time.
