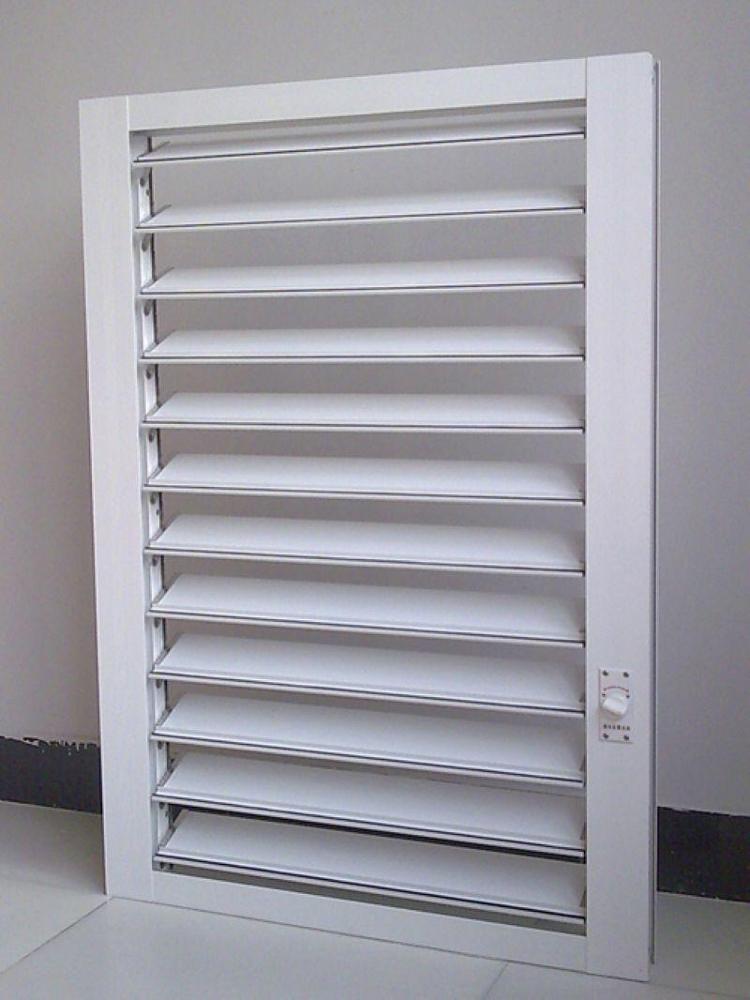

Aluminum Alloy Louver Plantation Shutter Window on China WDMA

Aluminum Alloy Louver Plantation Shutter Product Description    Part Name  Plantation Shutter  Material and Temper  6063 T5  Surface Treatment   Powder Coated / Wood Grain  Wind Proof  Yes Espagnolette multi point locking Double or triple glazing options Enhanced weather performance Tested to hurricane force winds Enhanced security Surpasses the requirement of...
color :
Chocolate
Dark Grey
Lavender
Light Grey
Sky Blue
Black
Clear
$30.00

China Windows and Doors Manufacturers Association

Aluminum Alloy Louver Plantation Shutter

Product Description



 Part Name  Plantation Shutter
 Material and Temper  6063 T5
 Surface Treatment   Powder Coated / Wood Grain
 Wind Proof  Yes
  • Espagnolette multi point locking
  • Double or triple glazing options
  • Enhanced weather performance
  • Tested to hurricane force winds
  • Enhanced security
  • Surpasses the requirement of building regulations
  • Green guide ‘A’ rating
  • Thermally broken profiles as standard with unique design to improve thermal performance
  • Thermally broken profiles as standard with unique
    design to improve thermal performance
  • Can easily be combined with all window and door systems
  • Windows Energy Rating = A, U-value = 1.5 W/m2K

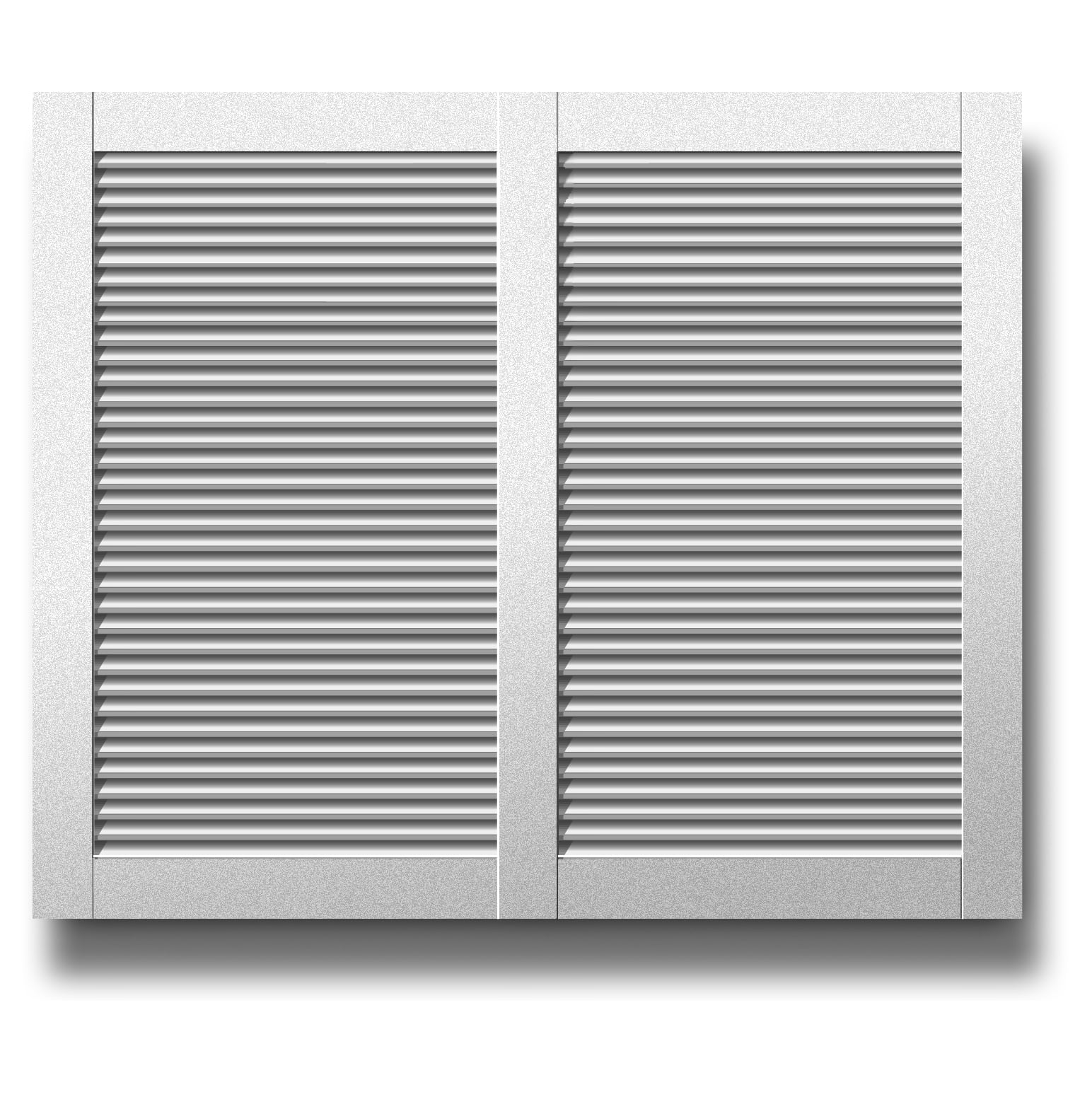

Aluminum Alloy Louver Plantation Shutter Window

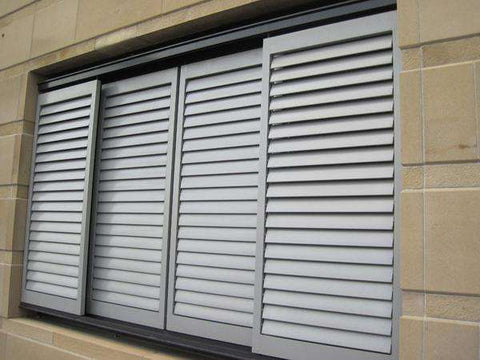

Aluminum Alloy Louver Plantation Shutter Window
Aluminum Alloy Louver Plantation Shutter Window



Packaging & Shipping

Aluminum Alloy Louver Plantation Shutter Window

 Standard export carton packing
 Wooden or iron pallets with plastic belts
 Air bags to fill in the space between each two iron pallets

  Aluminum Alloy Louver Plantation Shutter Window

Aluminum Alloy Louver Plantation Shutter Window   Aluminum Alloy Louver Plantation Shutter Window

Descriptions Aluminium Plantation Shutters
Material 1.2mm ~ 2.0mm 6063T5 Grade Aluminium
Available sizes Width range  400mm Minimum - 870mm Maximum  Single Shutter
 400mm Minimum - 1200mm Maximum Hinged Shutter
 400mm Minimum - 600mm Maximum Double Hinged Shutter
 700mm Minimum - 1200mm Maximum Sliding Shutter
 400mm Minimum - 700mm Maximum  Bi-Fold Shutter
Height range  600mm Minimum - 3600mm Maximum Fixed, Sliding and Bi-Fold Shutter
 400mm Minimum - 3600mm Maximum Hinged and Double Hinged Shutter
Max area      4.32sqm Single, Hinged and Sliding Shutter System
 2.16sqm Double Hinged Shutter
 2.53sqm Bi-Fold Shutter System
Elliptical blade size Width   63.5mm, 90mm, 115mm
Operation Typical Type  Single, Hinged, Double Hinged, Sliding and Bi-Fold System
Mid rail position   Mandatory for all shutters over 2000mm in drop,a second is required for drops over 3000mm
Specify height of mid rail to centre and note if critical mid rail heigh is required
Control and handle   Type   Aluminium control rod
Operation  Operation by rod or blades
Finishes Timber Grain  White Oak, Red Wood.
Powder coated  White, Grey, Silver and Black
Customized colours       Special paints can be made to order, refer to RAL colour.

Workshop Visit

Aluminum Alloy Louver Plantation Shutter Window

Quality Control

Aluminum Alloy Louver Plantation Shutter Window

Company Information
Aluminum Alloy Louver Plantation Shutter Window In order to quick respond to the domestic customers in east of China, Shouchi Aluminum Industry Co.Ltd is set up in 2018 in Nantong City, also as the office to serve foreign customers. The manufacture base in Shandong is still serving the northen customers.

Managing upon ISO9001 Quality Management System,  ISO14001 Environmental Management System, ISO18001 Occupational Health and Safety System, ISO10012 Measurement Management System. The qulity adapt to EN14351.

Shouchi have casting workshop equipped 8 casting furnaces and have capability of producing 100,000 tons of aluminum rods per year. The furnaces  are feeding molten aluminum instead of aluminum ingot, prevent contaminated and air bubble.



Total 23 extrusion production lines as follows, 3 lines of 600 tonnage extrusion force, 6 lines of 800 tonnage extrusion force, 10 lines of 1000 tonnage extrusion force, 2 lines of 1650 tonnage extrusion force, 1 line of 2600 tonnage extrusion force, 1 line of 4000 tonnage extrusion force.

After aging process, processing with oxidation, electrophoresis, vertical powder coating, wood grain transfer. Output 78,000 tons of various aluminum profiles in 2018.

Aluminum Alloy Louver Plantation Shutter Window

Coperation With Many Famous Construction Groups

Aluminum Alloy Louver Plantation Shutter Window

Aluminum Alloy Louver Plantation Shutter Window

Certifications

Aluminum Alloy Louver Plantation Shutter Window
