Aluminium Doors And Window Designs, Soundproof Double Glazed Aluminum Sliding Windows

Product Description Hot sale soundproof double glazed aluminum sliding window 1. 6063 aluminum profile, has small cutting surface, high strength, good sound insulation and safety performance;2. Standard notch design, hardware and accessories are installed quickly, effectively improving processing efficiency by 30%; 3. The new Anton EPDM sealing strip has excellent...

Effective Price :

$60.00

Request A Quote

Sliding Windows

Quantity :

Brand : China Windows and Doors Manufacturers Association

Product Type :

Product Description

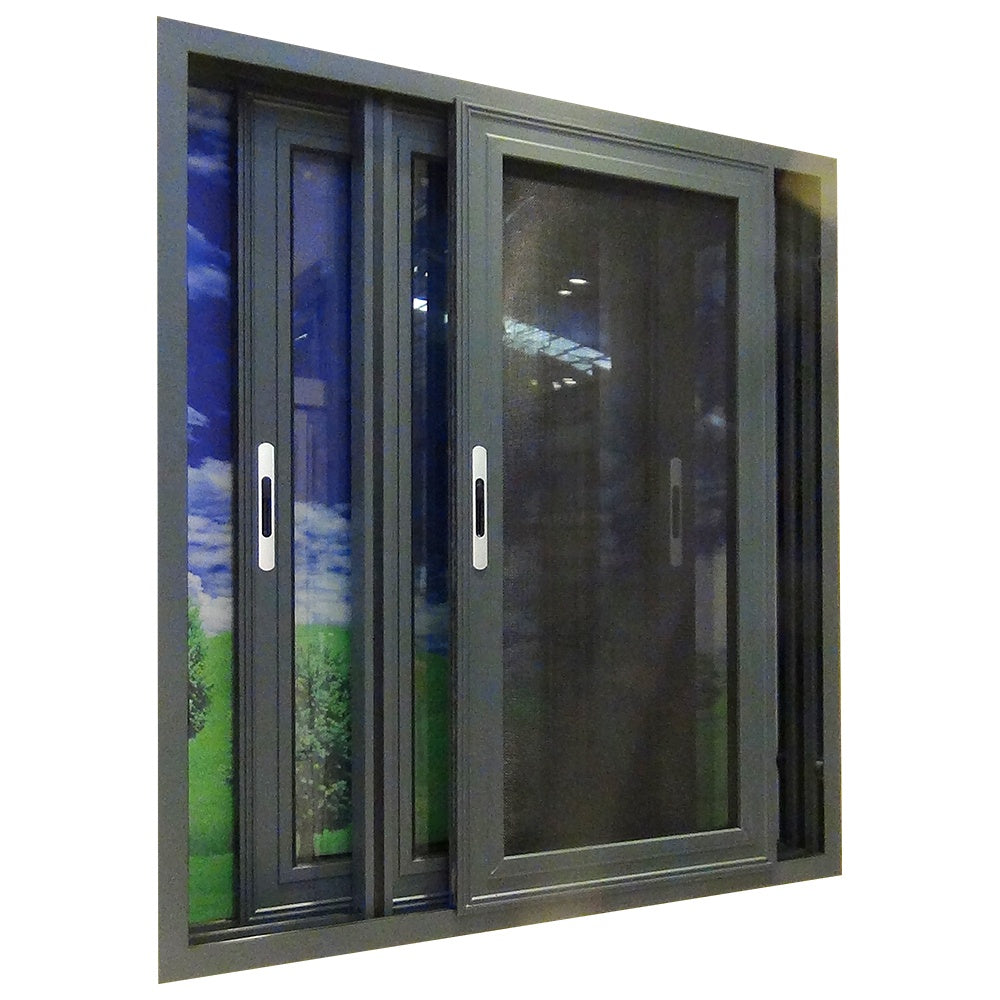

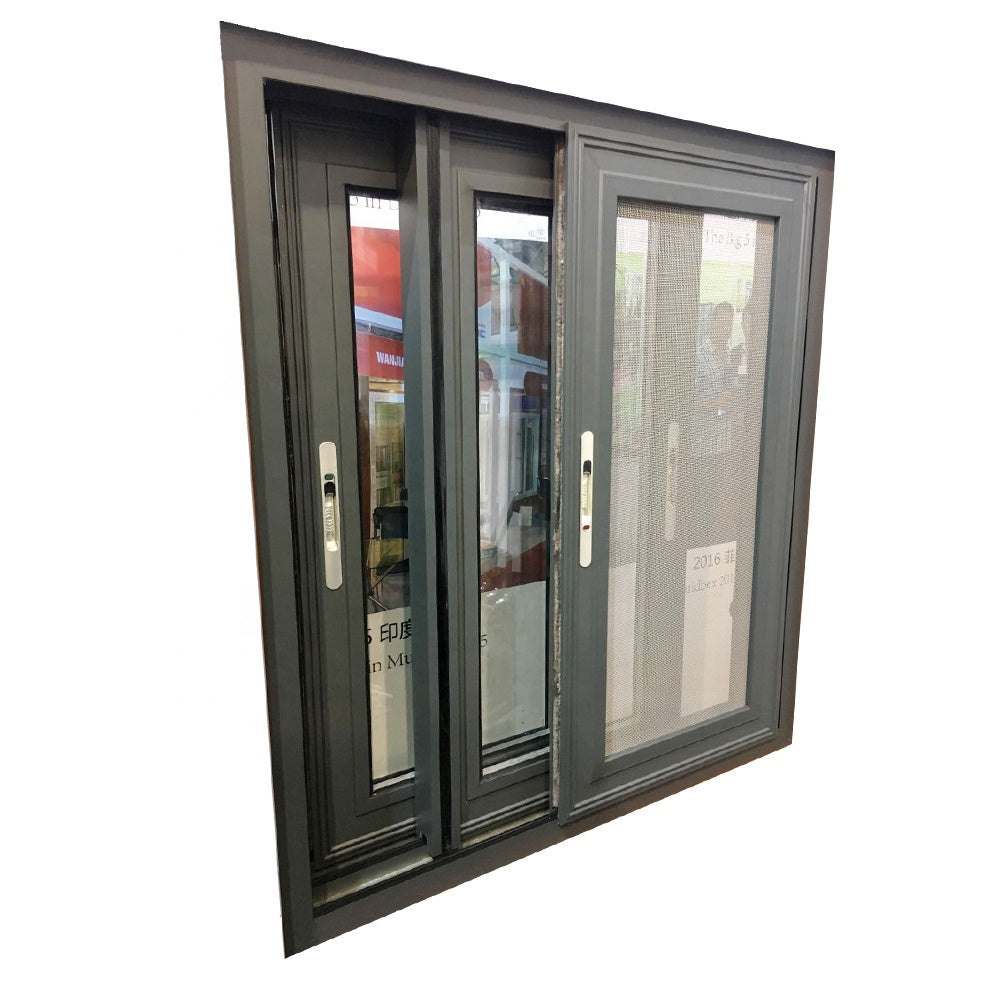

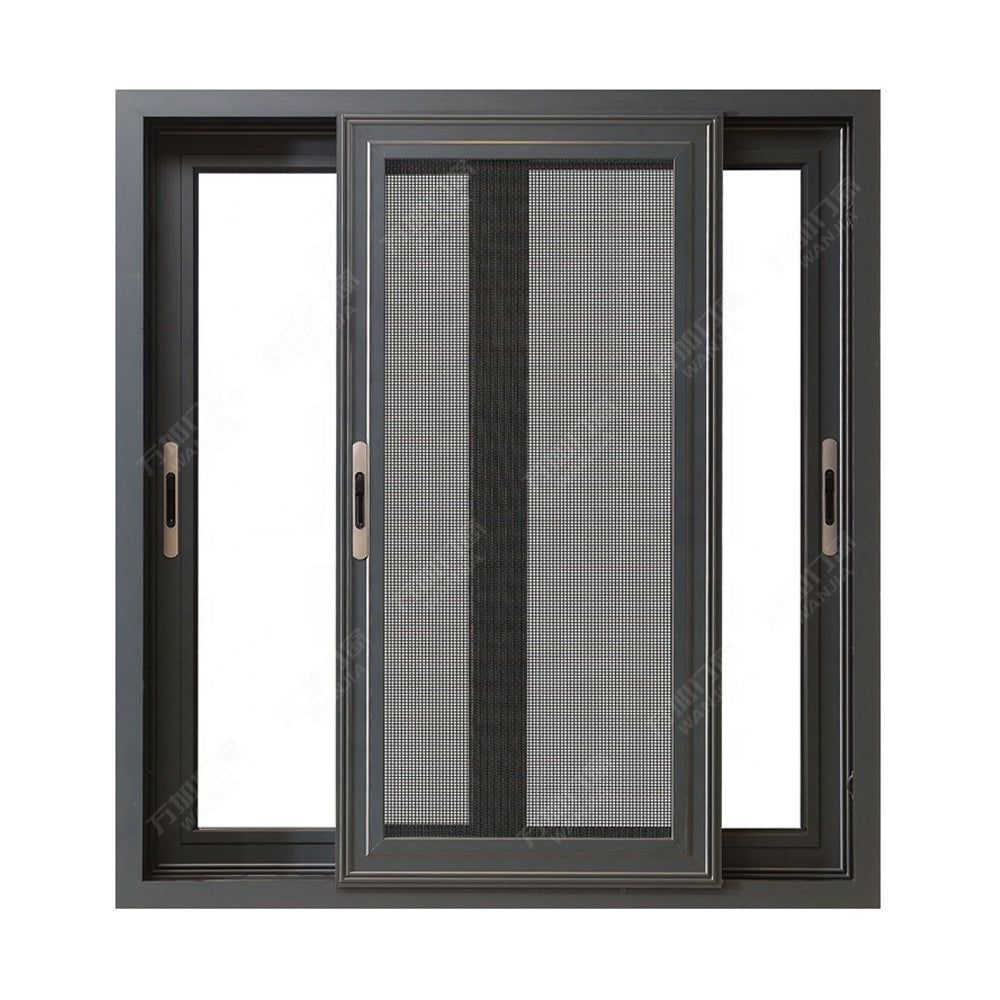

Hot sale soundproof double glazed aluminum sliding window

1. 6063 aluminum profile, has small cutting surface, high strength, good sound insulation and safety performance;

2. Standard notch design, hardware and accessories are installed quickly, effectively improving processing efficiency by 30%;
3. The new Anton EPDM sealing strip has excellent resistance to oxidation, ozone and erosion.
4. PA66GF25 imported heat-insulating bridge rubber has a heat transfer coefficient of 3.0W/m2·k which is much lower than that of ordinary aluminum alloy profiles, 140-170W/m2·k. Combined with hollow tempered glass, it can effectively reduce the heat conducted through doors and windows. ;
5. The hollow glass is filled with argon gas, which can reduce the U value of the insulating glass and increase the heat insulation of the insulating glass;
6.The sash has a curved decorative line, which looks nice and elegant

Product Information
Window Type	70 series aluminum sliding window
Opening style	Swing
Opening Pattern	Horizontal
Frame Material	Aluminum
Color	Cutomized
Size	Cutomized
Functions	Heat & Sound insulation
Profile	A. Aluminum alloy, 6063-T5, can be thermal break B. Wall thickness: 1.2, 1.4, 1.6, 2.0mm, can be customized C. Surface treatment: anodized, electrophoresis, powder coated, color can be customized
Glass option	A. Single glass: 5,6,7,8,10,12,15,19mm Tempered Glass B. Double glazing: 5+ 6/9/12 +5mm Tempered Glass C. Laminated glass: 5+ 0.38/0.76/1.52PVB+5mm Tempered Glass D. Tinted/Reflect glass/Tempered Glass E: Customized
Hardware	A. Made in China B. Made in Germany C. Customized
Fly screen	A. Stainless steel security mesh B. Aluminum security mesh C. Fiberglass fly screen D. Retractable & invisible fly screen

Main Features

1) Strong plasticity
Aluminum alloy doors and windows are metal materials, aluminum and various metal elements cast into a variety of alloys, with other doors and windows have unparalleled advantages, light weight and high strength, can be extruded into a variety of complex cross-section profiles, can be Satisfy the door and window designer's various new section material requirements.
2) Good sealing performance
Confined performance directly affects the use of doors and windows and energy consumption. Sealing properties include watertightness, airtightness, heat insulation, sound insulation and other four aspects.
3) Long service life
Due to its light weight, high density, precision processing, assembly, and precision, aluminum alloy doors and windows can be opened and closed lightly and flexibly, without noise, easy to use and maintain, corrosion resistance, small deformation, strong fire resistance, and long service life (50-100 years).
4) Environmental Protection and Energy Saving
The new material H-UPVC can be used to form a partition space between the internal and external profiles, so that the heat conduction of the aluminum alloy is minimized, the heat insulation and the sound insulation effect are good.
5) Excellent weather resistance
Anti-acid and alkali corrosion and free from air pollution. Acid rain. Ozone attack, UV-resistant, long-term to maintain the inherent color and luster.
6)Elegant decorative effect
The paint finish uses a powder coating process and a woodgrain thermal transfer film. Powder coating is a high-grade spraying process, with excellent resistance to fading, anti-blooming, anti-oxygen pollution, acid rain and other aggressive, anti-ultraviolet ability, and can withstand harsh weather conditions. Using the thermal transfer technology, the wood grain is transferred to the surface of the metal plate to form a realistic wood grain on the surface of the product. The substrate does not need to be glued, and the plate does not need any treatment after the transfer.

Product Detail

Corner Combine

---No water leakage if we do the right one
The compact sealing with adhesive between profiles to provide the nice and neat window framing.

Sliding Track

---The design decide the performance
Typical design to support heavy duty leaf as well as smooth sliding,water drainage and safe stepping.

Product Feature

Certification

Q:What is your main product?

A:We can supply the window system (including profile, glass,hardware,accessories ) as well as the finished products ready for installation.

Q:How can I know your price?

A:The price is based on buyer's specific requirement, so please provide below information to help us quote exact price to you.

1) Shop drawing / window schedule to show the window dimensions, quantity and type;

2) Frame color;

3) Type of glass and thickness (single or double or laminated or others) and color (clear, tinted, reflective, Low-E or others, with Argon or without).
