304 stainless steel window security fly proof screen wire mesh / mosquito door net on China WDMA

304 stainless steel window security fly proof screen wire mesh / mosquito door net Specification  Product Name:  304 stainless steel window security fly proof screen wire mesh / mosquito door net  Material:  Stainless Steel ,Low Carbon Steel Or Aluminum  Wire diameter:  0.025-2.6mm  Mesh count:  2mesh-500mesh  Application: Use for mining,Particle Separation, Filtering,  Features:...
material :
$35.00

China Windows and Doors Manufacturers Association

304 stainless steel window security fly proof screen wire mesh / mosquito door net

304 stainless steel window security fly proof screen wire mesh / mosquito door net

Specification

304 stainless steel window security fly proof screen wire mesh / mosquito door net

 Product Name:  304 stainless steel window security fly proof screen wire mesh / mosquito door net
 Material:  Stainless Steel ,Low Carbon Steel Or Aluminum
 Wire diameter:  0.025-2.6mm
 Mesh count:  2mesh-500mesh
 Application: Use for mining,Particle Separation, Filtering,
 Features: Alkali And Acid Resistance, Abrasive Resistance
 Weaving Method: Plain Weave, Twill Weave,  Plain Dutch Weave, Twill Dutch Weave,
 Reverse Dutch Weave, Five-heddle Weave



Mesh Wire Dia. (MM) Opening (MM) Material (AISI)
7meshx7mesh 1 2.63 304 or316
10meshx10mesh 0.6 1.94 304 or316
12meshx12mesh 0.5 1.62 304 or316
16meshx16mesh 0.4 1.19 304 or316
16meshx16mesh 0.35 1.24 304 or316
18meshx18mesh 0.35 1.06 304 or316
20meshx20mesh 0.4 0.87 304 or316
24meshx24mesh 0.26 0.8 304 or316
30meshx30mesh 0.3 0.55 304 or316
35meshx35mesh 0.17 0.56 304 or316
40meshx40mesh 0.23 0.4 304 or316
50meshx50mesh 0.2 0.31 304 or316
60meshx60mesh 0.15 0.27 304 or316
70meshx70mesh 0.12 0.24 304 or316
80meshx80mesh 0.13 0.19 304 or316
90meshx90mesh 0.12 0.16 304 or316
100meshx100mesh 0.1 0.15 304 or316
120meshx120mesh 0.09 0.12 304 or316
150meshx150mesh 0.063 0.11 304 or316
180meshx180mesh 0.053 0.09 304 or316
200meshx200mesh 0.053 0.07 304 or316



Mesh Wire Dia. (MM) Opening (MM) Material (AISI)
250meshx250mesh 0.04 0.063 316
300meshx300mesh 0.04 0.044 316
325meshx325mesh 0.035 0.043 316L
350meshx350mesh 0.03 0.042 316L
400meshx400mesh 0.03 0.033 316L
450meshx450mesh 0.028 0.028 316L
500meshx500mesh 0.025 0.026 316L

304 stainless steel window security fly proof screen wire mesh / mosquito door net

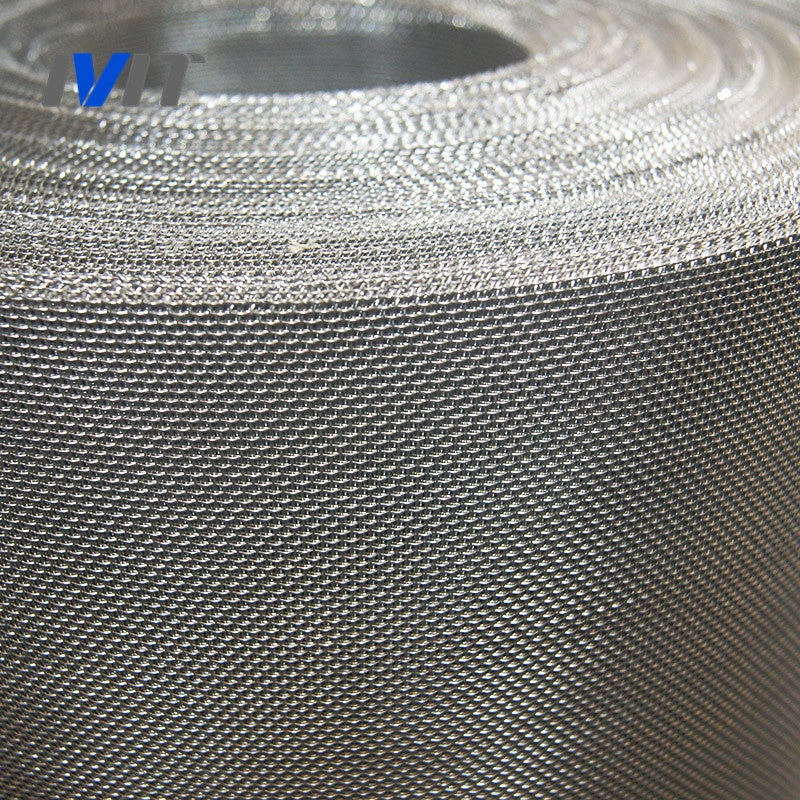

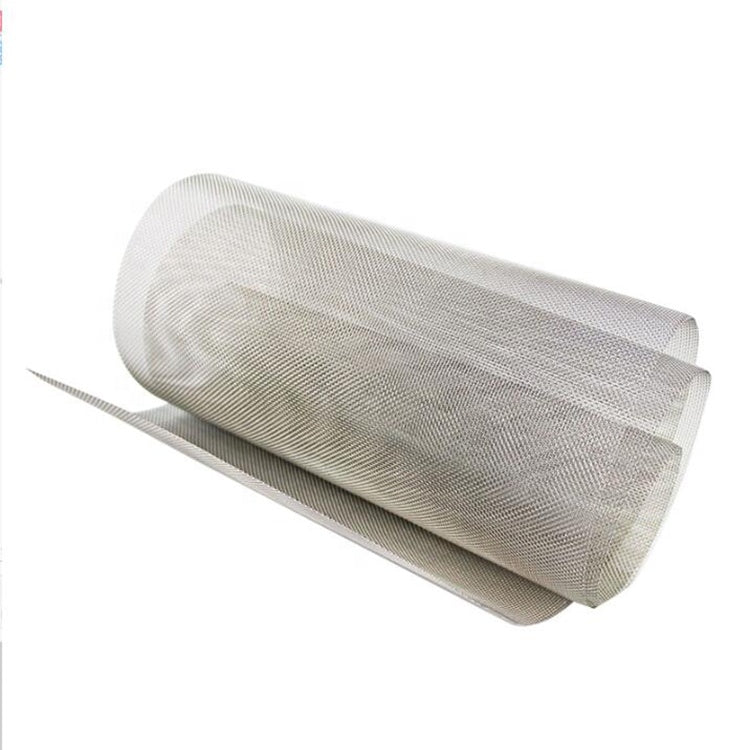

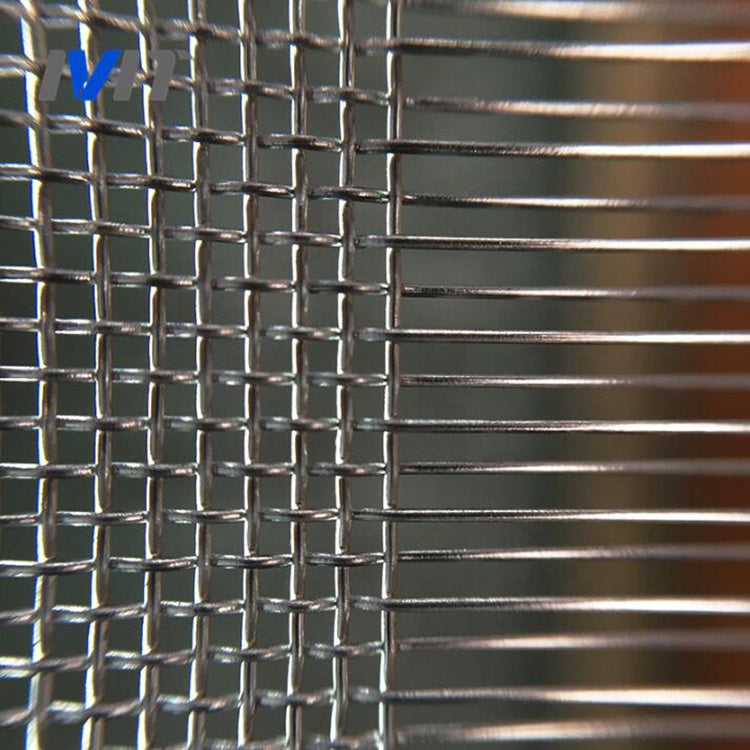

Product Description

304 stainless steel window security fly proof screen wire mesh / mosquito door net

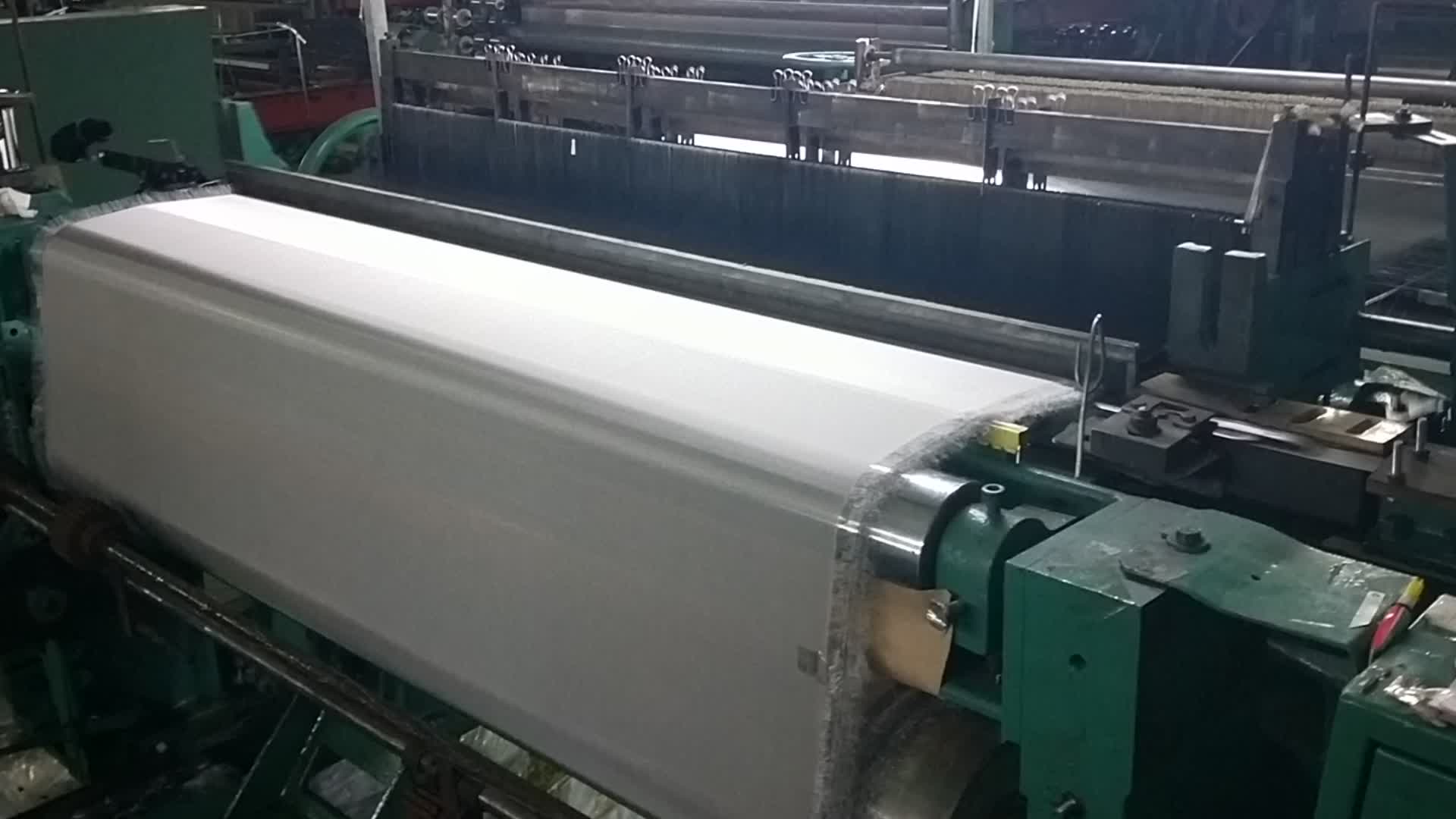

Production Process
304 stainless steel window security fly proof screen wire mesh / mosquito door net

304 stainless steel window security fly proof screen wire mesh / mosquito door net
