24 zone Color Screen Archway Metal Detector/Security Door Frame Metal Detector on China WDMA

24 zone Color Screen Archway Metal Detector/Security Door Frame Metal Detector Detail Description Technical Parameters Place of Origin: Guangdong China (Mainland) Brand Name: Guard Spirit Model Number: XYT2101LCD Color: Gray Type: Door Frame Metal Detector Certificate: CE,ISO9001, ROHS, FCC, IEC Warranty period: 12 months, Lifetime Maintenance Detecting zone: 24 Detecting...
$900.00
$600.00

China Windows and Doors Manufacturers Association

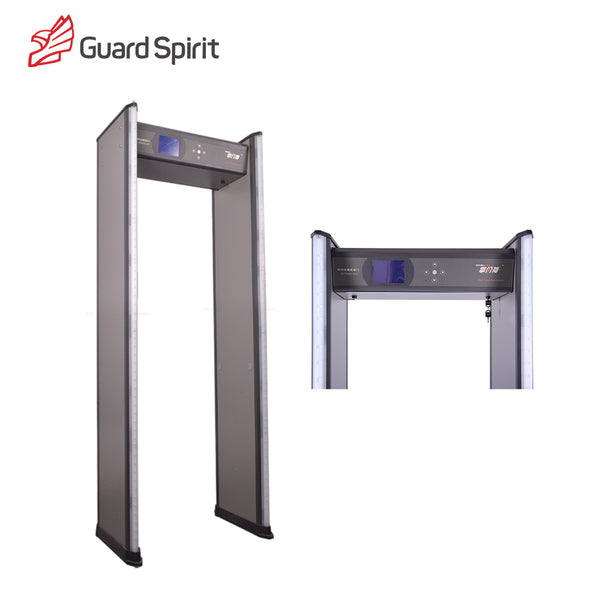

24 zone Color Screen Archway Metal Detector/Security Door Frame Metal Detector

Detail Description

Technical Parameters

Place of Origin:
Guangdong China (Mainland)
Brand Name:
Guard Spirit
Model Number:
XYT2101LCD
Color:
Gray
Type:
Door Frame Metal Detector
Certificate:
CE,ISO9001, ROHS, FCC, IEC
Warranty period:
12 months,
Lifetime Maintenance
Detecting zone:
24 Detecting zones
Electronic Current:
90V-240V
Net Weight:
65kg
Standard:
GB15210-2003
Work environment: -20℃-60℃
Sensitivity level:
255 level
Standard External Size: 2230*835*580MM Standard 2000*700*500MM
internal Size:

Features and Functions

  •  Door Frame Metal Detector
  • Adopt advanced digital signal processing control replaced traditional analog signal control, better stability.
  • Friendly windows interface, both Chinese and English program, easy to operate.
  • Program Self-diagnostic when power on, automatically checking left and right door panel, LED light and choose the best working frequency.
  • Automatically count passengers and alarm times, keep alarm records for inquiry (up to 20000 records)
  • Detecting Zones: Standard 8 zones. It can extend to 16,24 zones by separate left and right alarm.
  • Sensitivity adjustable: Each zone has 255 degree sensitivity level, three patterns: High, middle, Low for different requirements. Preset the metal size, weight, volume, location to exclude the coin, key, belt..
  • Anti-interference function. using advanced interactive transmitting and receiving to avoid interference, frequency range from 8. 4K-8K to avoid frequency interference
  •  6 preset programs for working applications.
  • PVC material and Control unit on the top, waterproof, moisture-proof and cooler.
  • Integrated and modularized circuit design lead to simple installation and more convenient after services.
  • Adjustable Passing speed: up to 100 persons/min.
  • Battery back up:4—8 hours
  • Background light: 0-99 seconds for choose
  • Calendar function: real time display year, month, date, hour, minute, second
  •  Harmless to heart peacemaker, pregnant women, magnetic floppy, recording tapes, etc.
  • Network support: (For Option)

Detailed Images

24 zone Color Screen Archway Metal Detector/Security Door Frame Metal Detector



24 zone Color Screen Archway Metal Detector/Security Door Frame Metal Detector

Packaging & Shipping
Packaging Detail:

1.Two Carton boxes Packing Size:
235*68*26cm  (left and right door panel)
82*48*30cm    (top control unit) for Door Frame Metal Detector



2.Two wooden Packing Size:

238* 70* 34cm  (left and right door panel)
84*52*39cm    (top control unit) for Door Frame Metal Detector



The Package sytle is depend on your idea.

Delivery Time: about 3 working days after deposit received
Company Information

Company Introduction

Shenzhen Xinyuantong Electronics Co., Ltd. was established in 2000 with the registered capital of RMB 31.5 million, the total business space is 12,000 m2, there are more than 260 employees, including 120 research, engineering and technical personnel; we are one professional high-tech company which provides the solutions to the public safety, and provides the complete production and integration services.Besides,we have professinal R&D technician,who can support OEM and ODM service for all our respectable distributor overseas.

Our main products are secuirity X-ray baggage scanner,multi-zone walk through metal detector,Hand held metal detector,under vechicle scanning system,Anti-explosive products....the developed products have been granted by 28 national patens.

We have attended many securtity exhibitions all over the world, such as Dubai Intersec,SECUREX in sourth Africa,EXPOSEC in Brazil,CPSE..

Our advantages:

Reliable manufacturer, Professinal negotiable,Good quality products, best price,fast delivery and permanet services.

24 zone Color Screen Archway Metal Detector/Security Door Frame Metal Detector

24 zone Color Screen Archway Metal Detector/Security Door Frame Metal Detector 24 zone Color Screen Archway Metal Detector/Security Door Frame Metal Detector

FAQ



Any other problems? just contact with us!

Shenzhen Xinyuantong Electronics CO., Ltd

Web: www.gsdetector.com

Address: No. 225, Xinmu Road, Pinghu Street ,Long gang District, Shenzhen, Guangdong,  P.R China;

Sales representative: Andy Zhu;

Tel : +0086 0755 82281661;              Mobile: +0086 18937859703;
