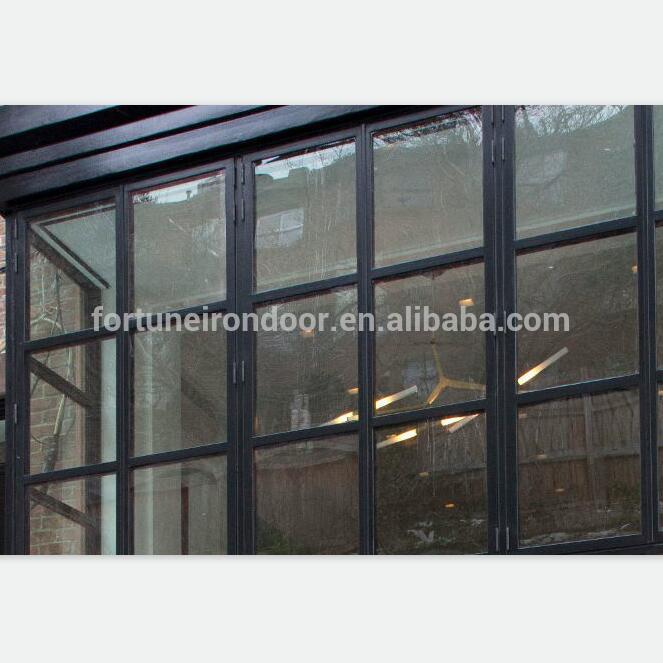

2017 popular sales steel windows made out of Swiss imported hot rolled steel on China WDMA

Product Description Standard American standardAustralia standardEuropean standard Warranty 10 years Material / Profile ☆ Hot rolled steel tube (Hollow steel) ☆ Swiss imported carbon steel (Solid hot rolled steel: W20 series, W40 series) ☆ Swiss imported carbon steel (Solid hot rolled steel: thermal break galvanized steel MTS50) We are CHINESE...
$1,800.00

China Windows and Doors Manufacturers Association

Product Description
Standard
American standard
Australia standard
European standard

Warranty
10 years
Material / Profile
☆ Hot rolled steel tube (Hollow steel)
☆ Swiss imported carbon steel (Solid hot rolled steel: W20 series, W40 series)
☆ Swiss imported carbon steel (Solid hot rolled steel: thermal break galvanized steel MTS50)

We are CHINESE EXCLUSIVE AGENT of Swiss imported hot rolled STEEL profile.

Carbon steel & Galvanized steel & Thermal break steel

Products: casements / fixed / awing / pivot / sliding / folding Windows & Steel Doors

We are Chinese leading hot-rolled steel frame window and door manufacturer.

We believe in using only the highest quality environmentally friendly materials. All steel 100% recycled and precision hot-rolled in Switzerland specifically for us. All hardware and fittings are superior quality, solid brass or 316 grade stainless steel, European sourced.

Profile
Advantage
Usage
☆ Hot rolled steel tube (Hollow steel)
High cost-effective
Jamb: 1" * 2", 1.25" * 2", 1.5" * 2"
Stile tube: 1.25" * 2"
Steel muntin / Cross bar: 3/4", 1", 1.18"
Fixed windows

Modern style double / single doors
Pivot doors

☆ Swiss imported carbon steel (Solid hot rolled steel: W20 series)
Minimal depth and sidelines
The thinnest and high energy-efficient with glass thickness: single 8mm, double 16mm / 22mm
French style casements
Fixed windows
☆ Swiss imported carbon steel (Solid hot rolled steel: W40 series)
Minimal depth and sidelines
Both thin and strong
High energy-efficient with glass thickness: double & triple 16mm / 22mm / 25mm / 30mm
Awing windows

French style doors
Sliding doors
☆ Swiss imported carbon steel (Solid steel: thermal break galvanized steel MTS50)

Minimal depth and sidelines
Thermal break can be used in extreme weather conditions
Zinc-magnesium coating for corrosion protection
High energy-efficient with glass thickness:
double & triple 26mm / 30mm
Unique & stylish thermal break doors & windows

Sunlight room
☆ Swiss imported galvanized steel (Brand: Jansen)
Minimal depth and sidelines
Perfect performance
Minimum maintanance
Long life cycle
Unique & stylish thermal break doors & windows
Sunlight room
Thermal break and non-thermal folding doors
Advanced paint tech

World's top level zinc-rich fluorine carbon paint.

Hanging painting technology in the dust-free rooms and thoroughly drying in the baking rooms. We make painting 10 layers and baking 8 times reaching marine grade with 10 years antirust and no paint fall off

Paint process

· Sand blast for taking off rust
· Zinc-rich Epoxy primer for anti-rust
· Mica iron epoxy primer
· Intermediate coat
· Black paint
· Hand applied touch ups
· Protected with oil based clear coat sealer

RAL / Custom Color
Available
Color 0#
Matt Black
Color 4#
Silver pewter
Color 5#
Antique Copper
Color 6#
Light Bronze
Color 7#
Heavy Bronze
Color 8#
Gold Rush
Glass
Manufactured by our own glass factory
More styles are available
Tempered single glass / Toughened insulating double glass / Triple glass / Impact glass / Laminated glass
Bullet-proof glass / Tinted glass
Lowe glass with U-Value 0.44 and SHGC 0.22
Certifications: IGCC / SAI GLOBAL / CE
Quanex super spacer is available
Hardware and Details

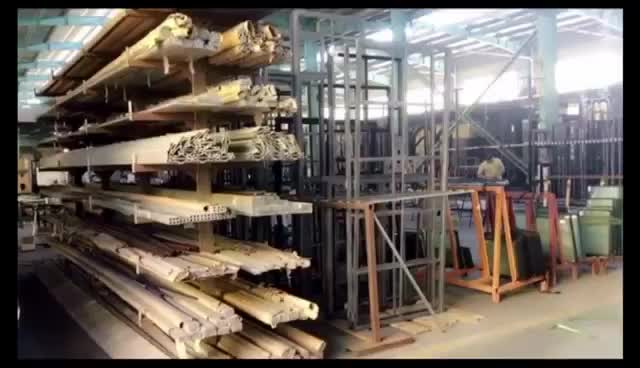

We are manufacturer
