Plastic extruded upvc profile window and door on China WDMA

Our Company Huazhijie Plastic Building Material co., Ltd. the subsidiary of Huashengda Holding Group Co., Ltd., is a professional manufacturer of plastic building materials. It was established in 1995, located in Deqing Economic Development Zone,there are 45 kilometers away from the center of Hangzhou. The company covers an area of...
$1,200.00
$1,170.00

China Windows and Doors Manufacturers Association

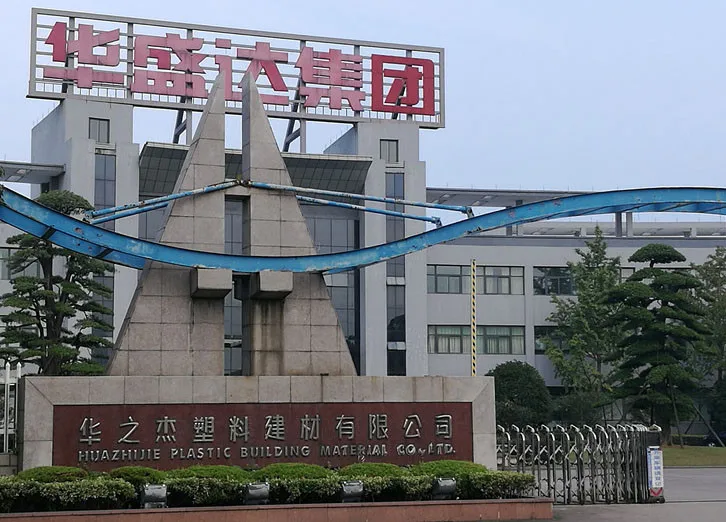

Our Company

Huazhijie Plastic Building Material co., Ltd.

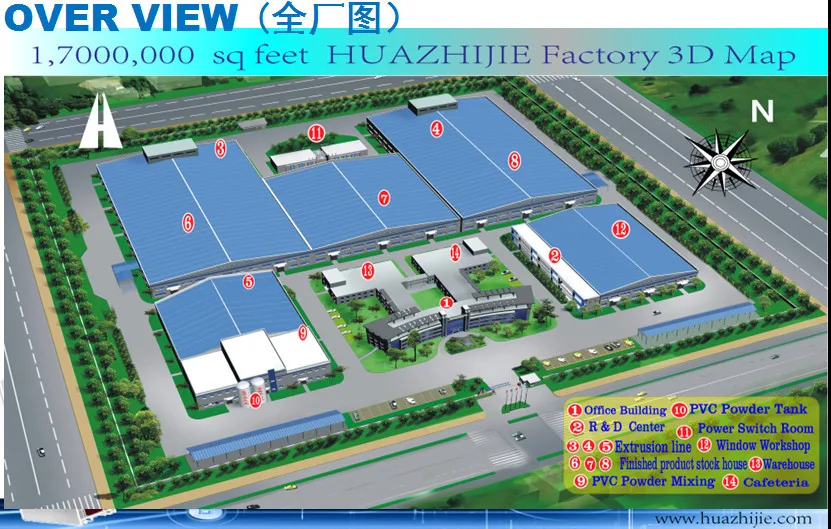

the subsidiary of Huashengda Holding Group Co., Ltd., is a professional manufacturer of plastic building materials. It was established in 1995, located in Deqing Economic Development Zone,there are 45 kilometers away from the center of Hangzhou. The company covers an area of 148,674m2 and holds assets of 350 million RMB. We introduced the top-class production lines from Singapore, Germany, Italy and Austria.

Product Description

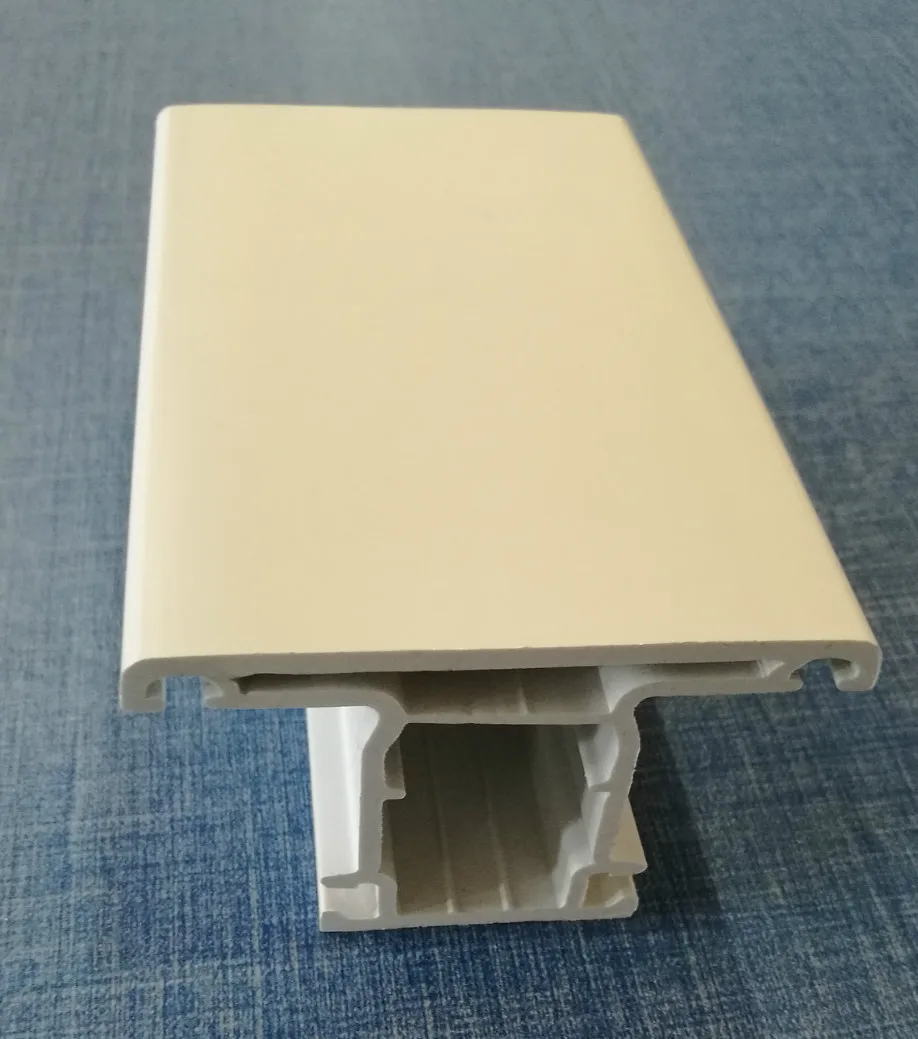

                                                  Plastic exturded upvc profile window and door

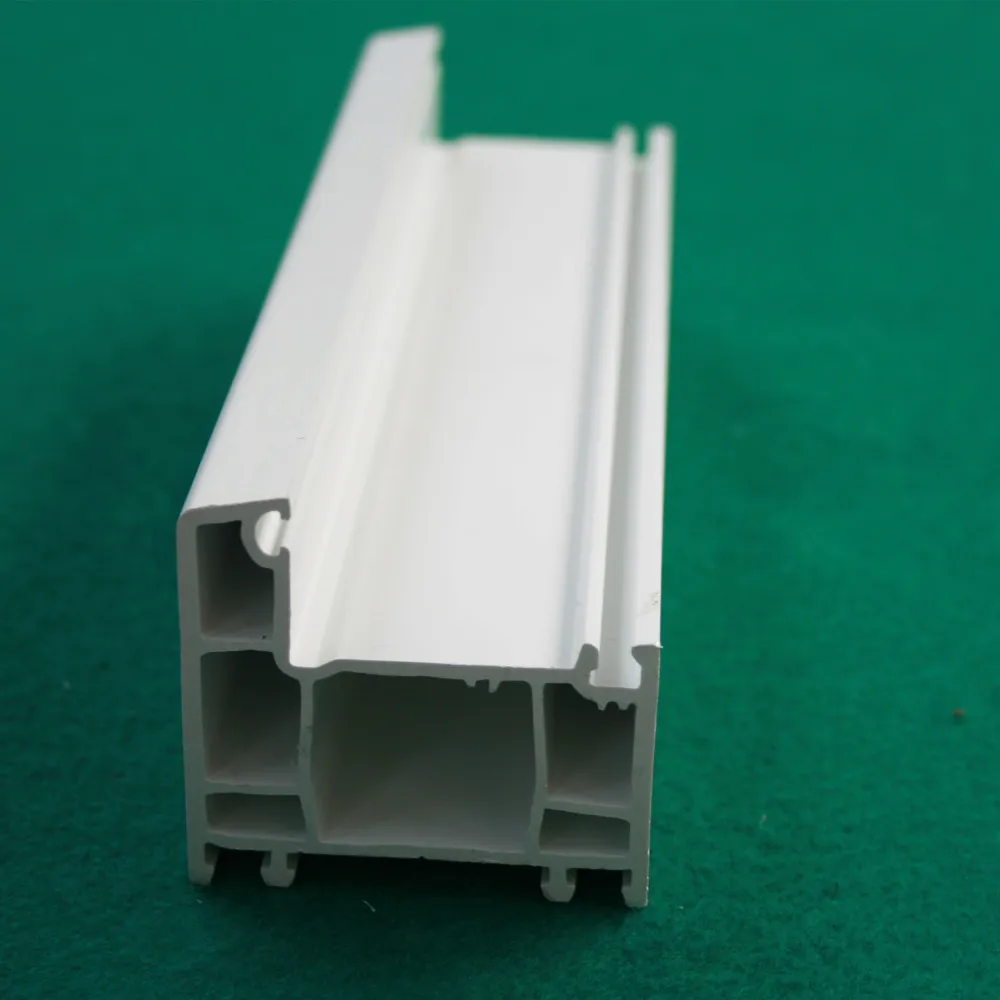

Casement Window Frame

Item Code:HSP60-01A

Weight:0.995kg/m

Reinforcement Code:HGC2622

Casement Outwarder Sash

Item Code:HSP60-09T

Weight:1.3kg/m

Reinforcement Code:HGC3328

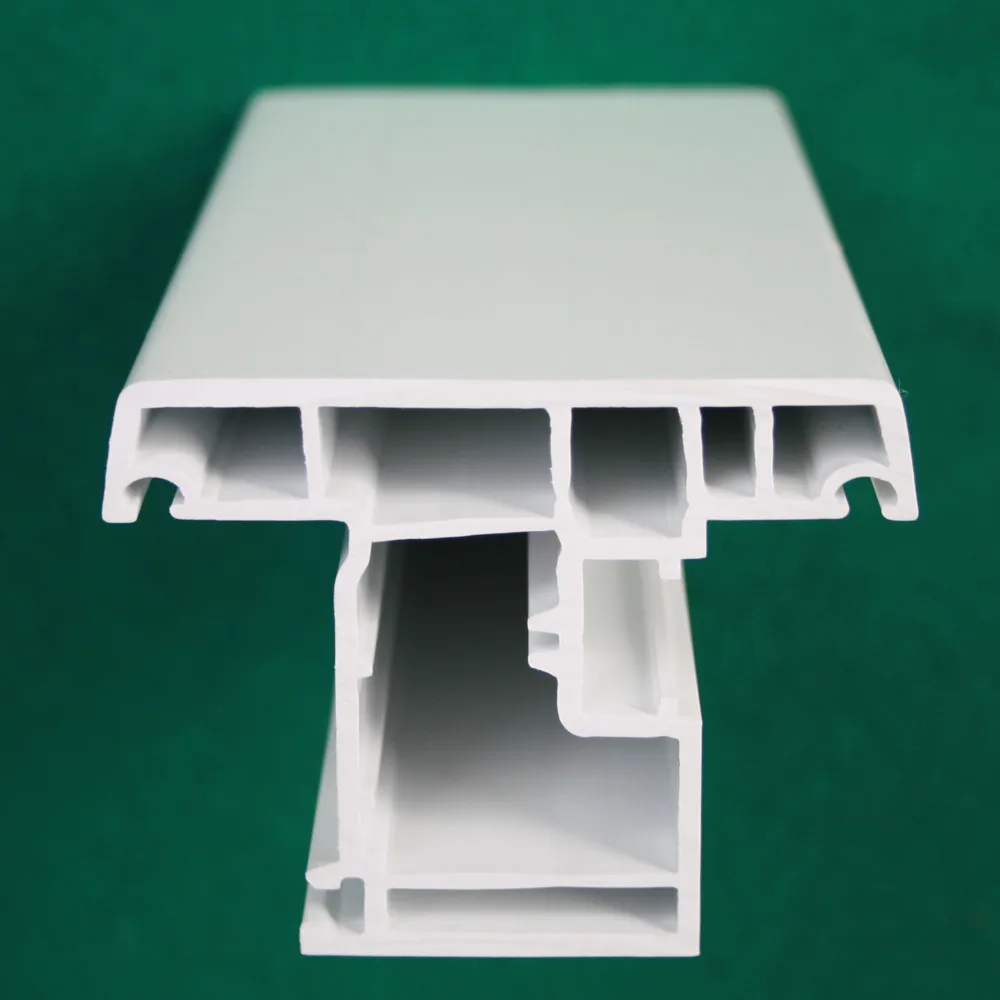

Casement Window Mullion

Item Code:HSP60-02A

Weight:1.05kg/m

Reinforcement Code:HGC3219

Sliding Window Frame

Item Code:HST88-01B
Weight:1.37kg/m
Reinforcement Code:HGC2716

Sliding Window Sash

Item Code:HST77-02
Weight:1.00kg/m
Reinforcement Code:HGC3018

Sliding Window Mullion

Item Code:HST77-03
Weight:0.80kg/m
Reinforcement Code:HGC2915

Single Glazing Bead

Item Code:HSP60-03
Weight:0.275kg/m

Double Glazing Bead

Item Code:HSP88-21
Weight:0.275kg/m

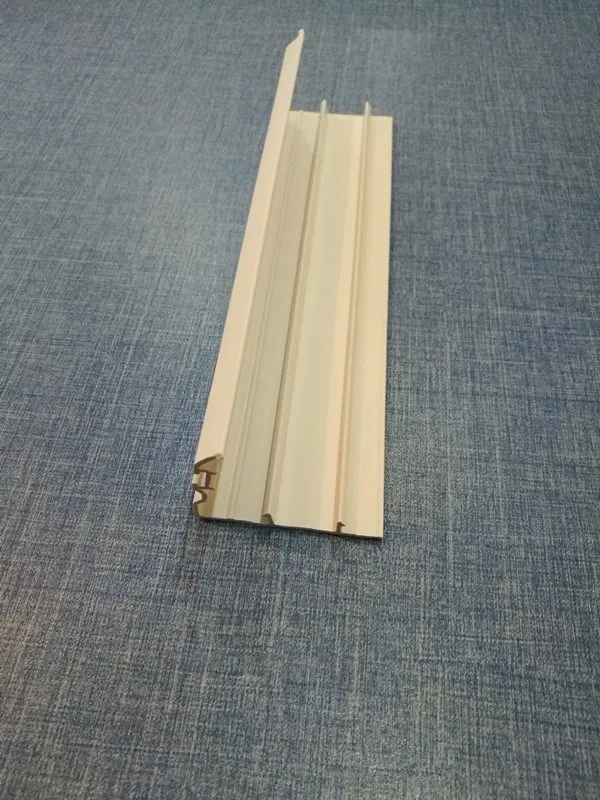

Sliding Window Cover

Item Code:HST77-11A
Weight:0.235kg/m

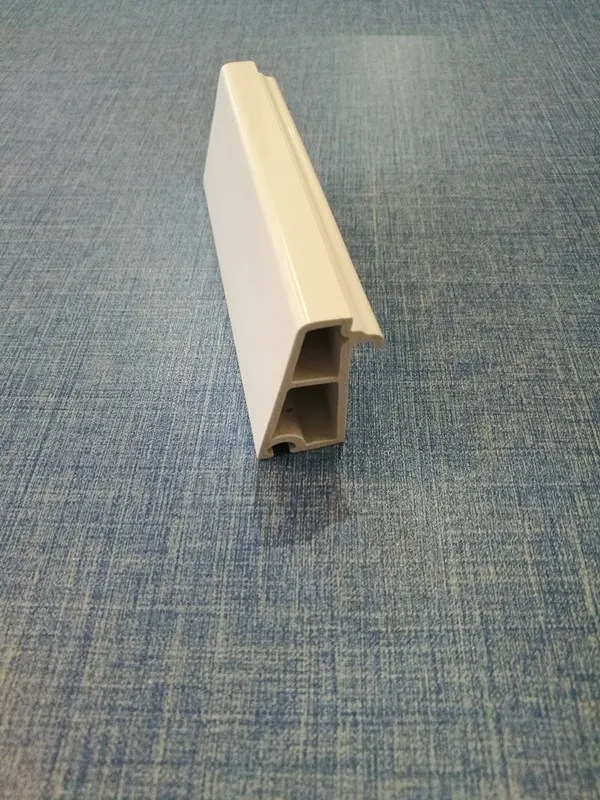

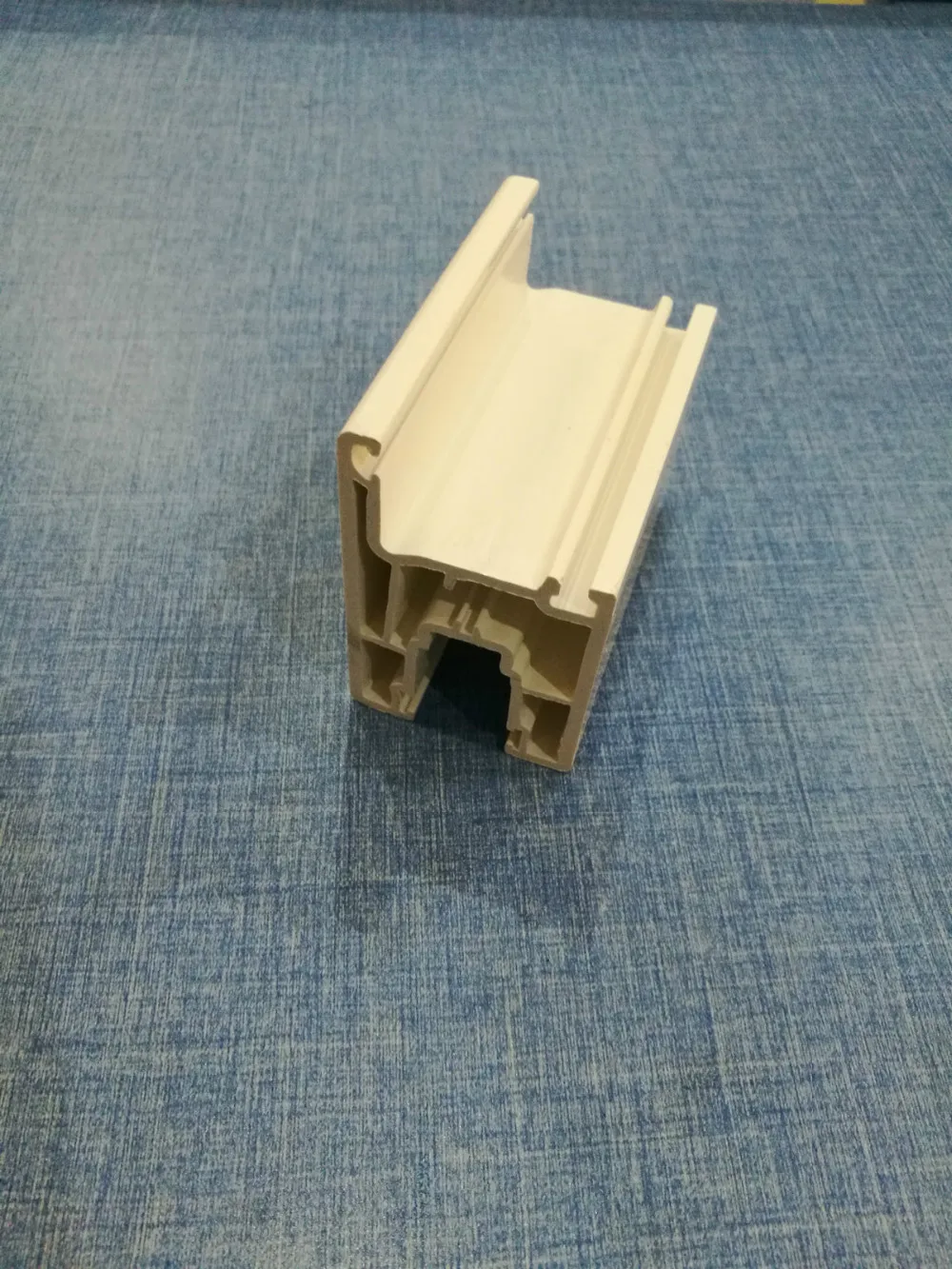

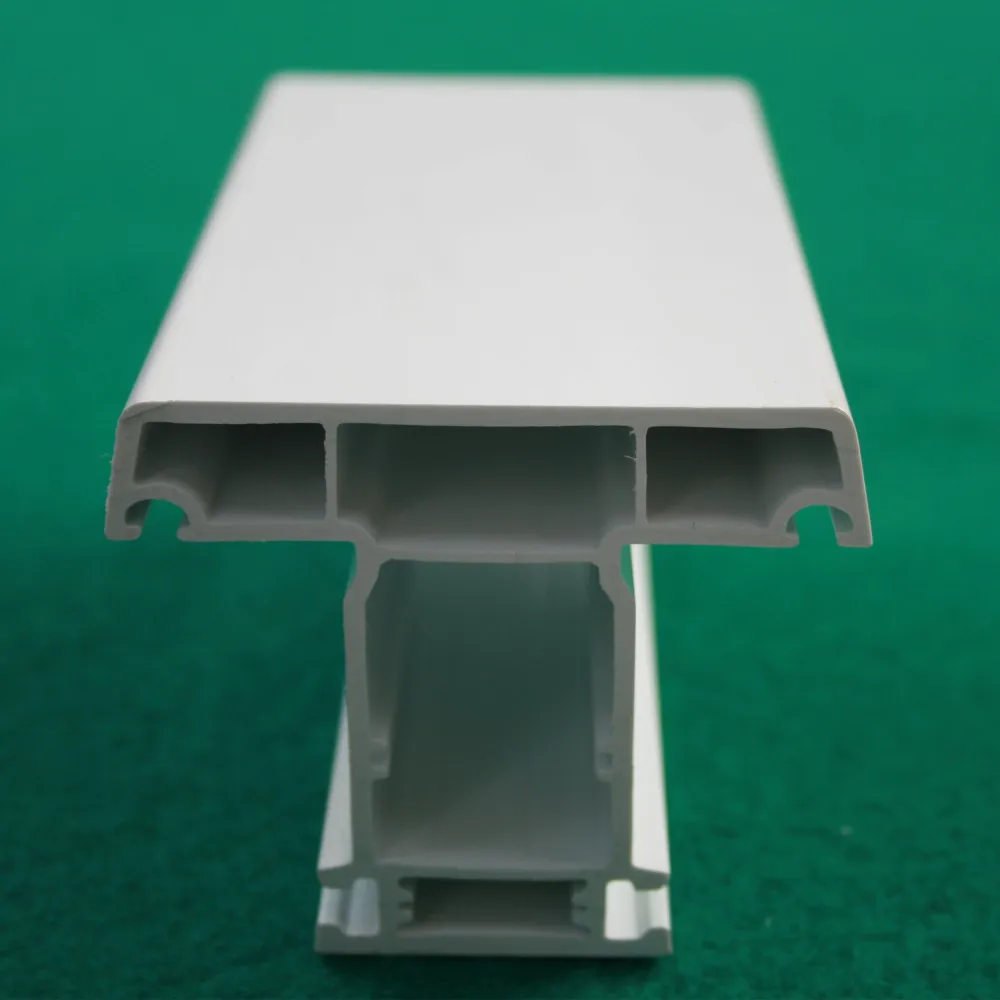

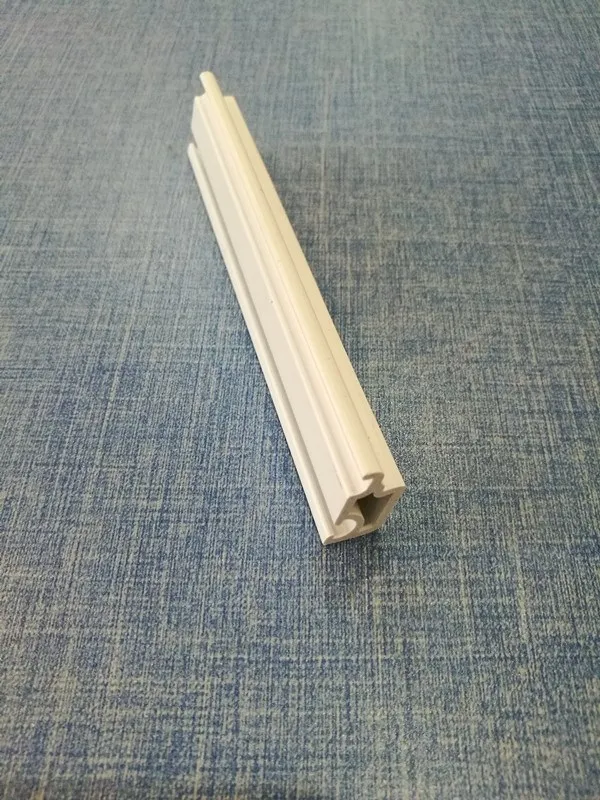

Detailed Images

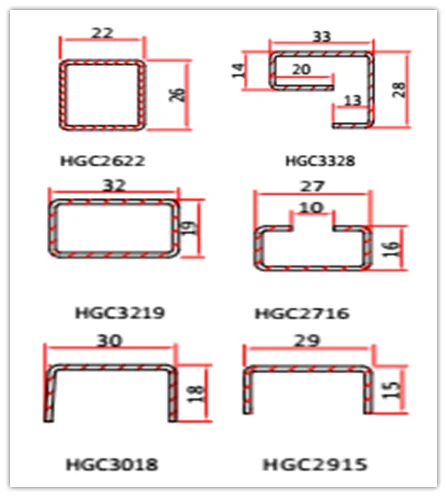

STEEL REINFORCEMENT

Thickness:1.2mm;1.5mm;2.0mm;

Processed by rusty protection.

60 uPVC Casement Series

HSP60-01A;HSP60-09T;HSP60-23;   HSP60-02A;HSP60-06;  HSP60-03;

88 uPVC Sliding Series

HST88-01B;HST77-02;HST77-03;

HST88-21;HST77-11A;HST80-05;

Product Test Report

                                          Unplasticized PVC White Profile Test Report

No.

Test Items

Requirement

Test Result

1

1 Meter Linear Deviation mm

≤  1

 0.4

2

Number of broken samples after 1 hour -10℃     condition Drop Impact (Height:1 m )

≤ 1

0

3

Visual Surface Dimension Change Rate After      Heating %

                       ± 2.0

+1.7

+1.5


4

   The difference of dimension change rate

  between two visual surface on each sample        after  heating %



                     ≤ 0.4



                 0.3

5

            Vicat Softening Temperature ℃
                      ≧75
                  81

6

            Bending Elastic Modulus Mpa
                      ≧2200
               2729

7

Status after Heating ( 150±2 ℃, 30mins )

No bubbles,cracks or pitting

Qualified


8


Weldability

  Welding angle average

stress ≧35Mpa

46

   Mini stress of sample

≧30Mpa

44

9

Tensile Impact Strength KJ/m2

                       ≧600

679

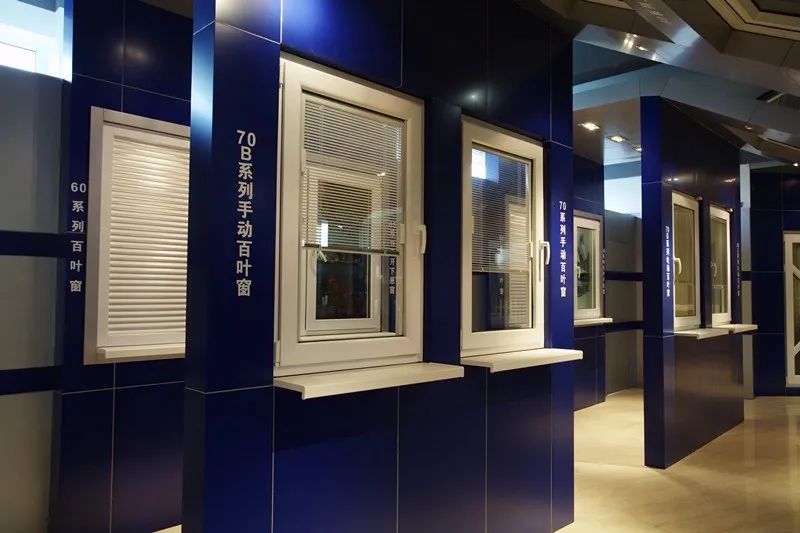

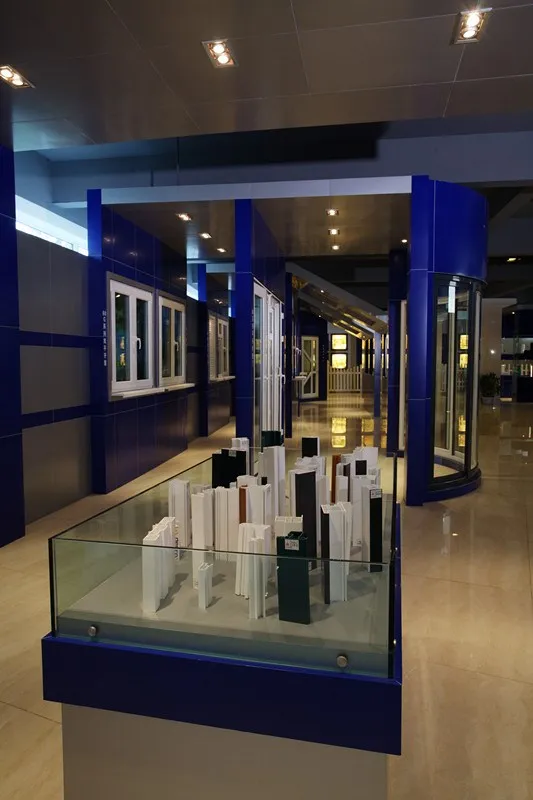

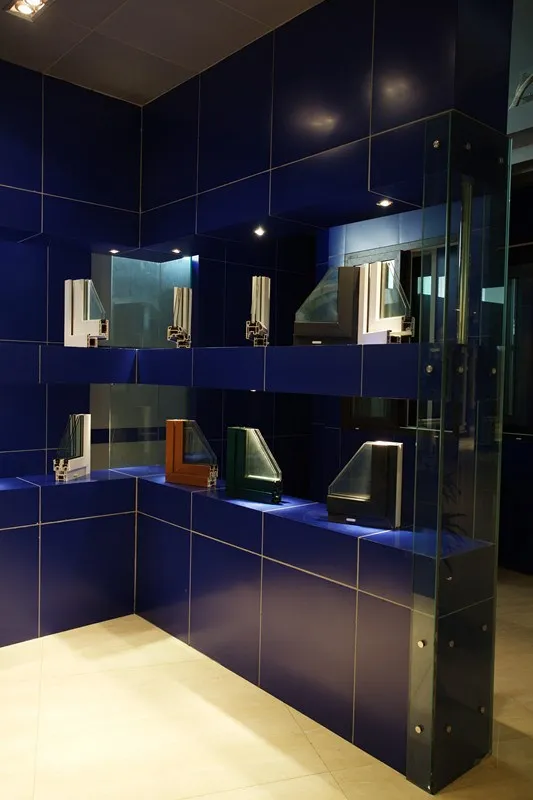

Product Show Room

To show the capability and experience engaged in uPVC profile production and research,our factory invested  a lot to make this show room.There are about 1 000sqm to show different series and styles  of uPVC window and door.All the uPVC profile are extruded by ourselves.It is very clear to show the production craft ,product quality and the application of the profiles.

Exhibition Show

We attend the  Caton Fair two times per year and the Indian ZAK Window and Door Exhibition every year. It will be very nice if  you could recommend some professional exhition to us.We are pleasure to attend more fair in different place.It is good place to know each other directly.
